"16ft awning for a shed roll up door. I painted everything to match the shed. Easy enough to be a one man job." - Tim

Check out this sweet L shaped desk from David!

"Just wanted to show you the project I used your product for. I needed a shelving unit for my outdoor shed... I designed what I needed, ordered the connectors and bought the conduit from my local hardware store. Took about 5 hours to get it all cut and put together, spent a lot of time double checking my measurements while assembling it. In the end it came out great and I'm really impressed with the strength of the connectors, great product!" - Dave

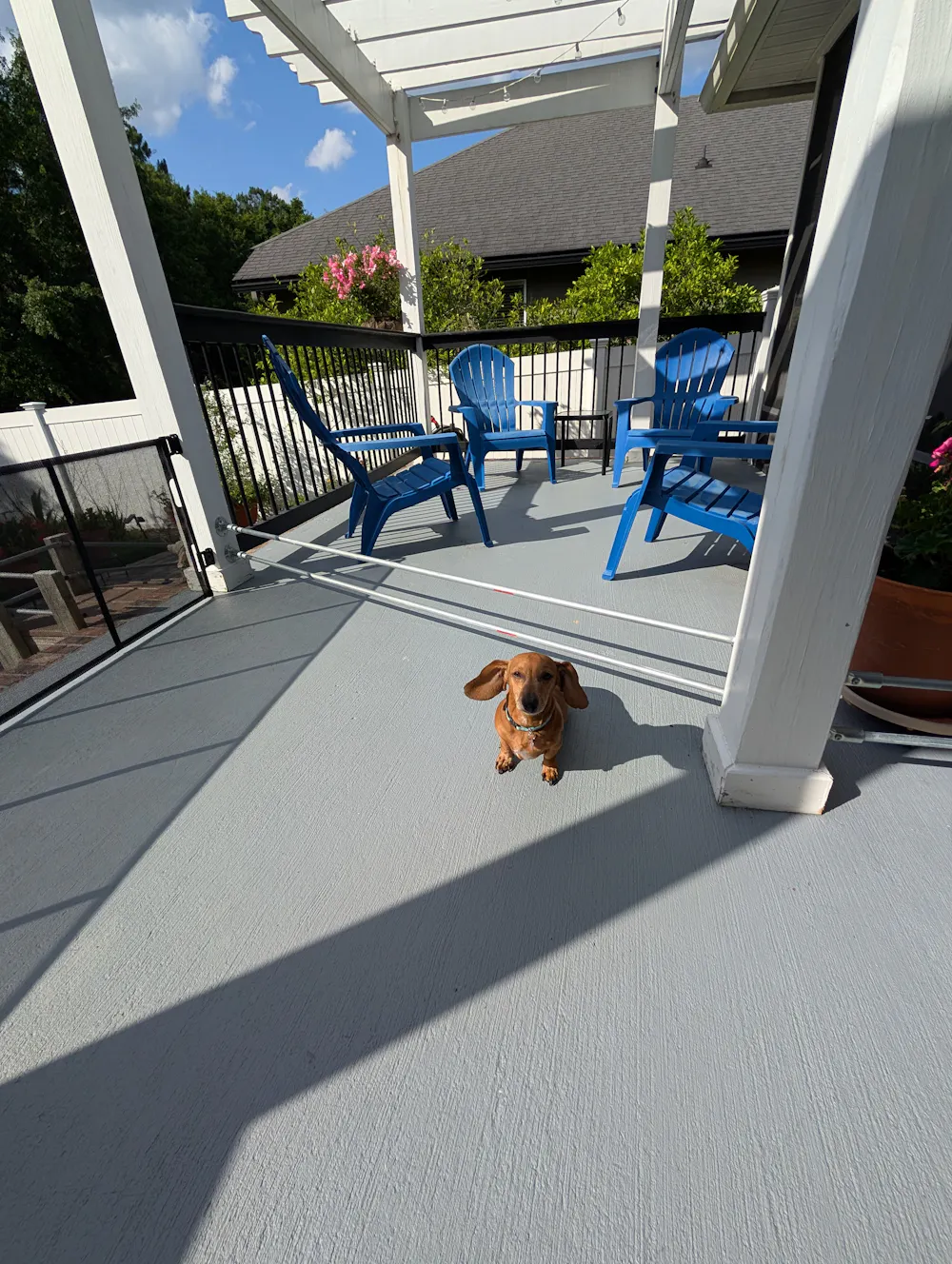

"We had to remove an 80+ year old shade tree and wanted to have shade on our deck again. I found Maker Pipe via YouTube, and after watching so many amazing builds I ordered the Maker Pipe minis. My husband and I my used them to come up with the design and count of the connectors we needed (the minis are a great tool) for our deck shade build. Putting everything together was easy and quick because we had all the parts from the pre planning and mock up with the minis. I am hoping our local Ace Hardware will start stocking your products!" - John & Becca

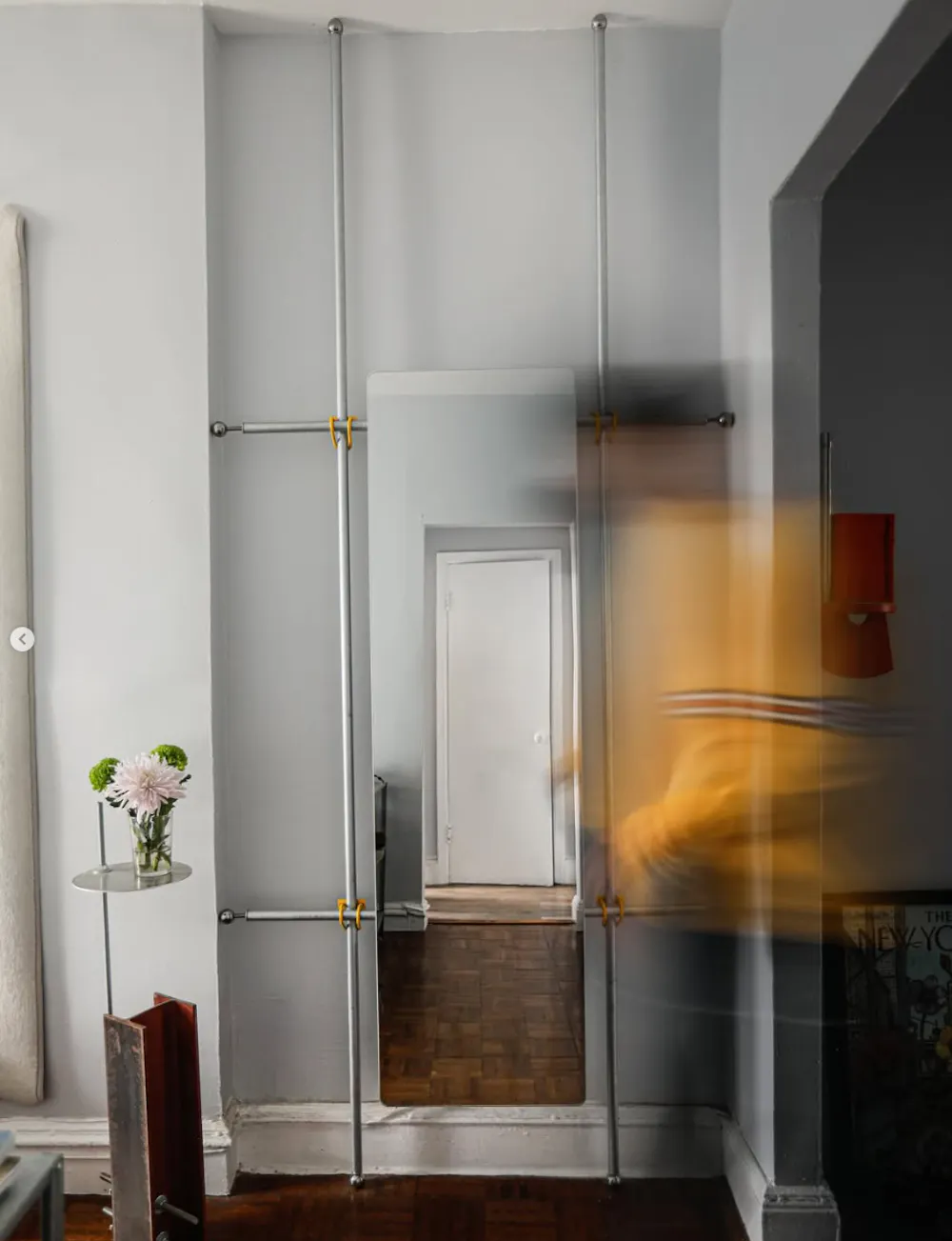

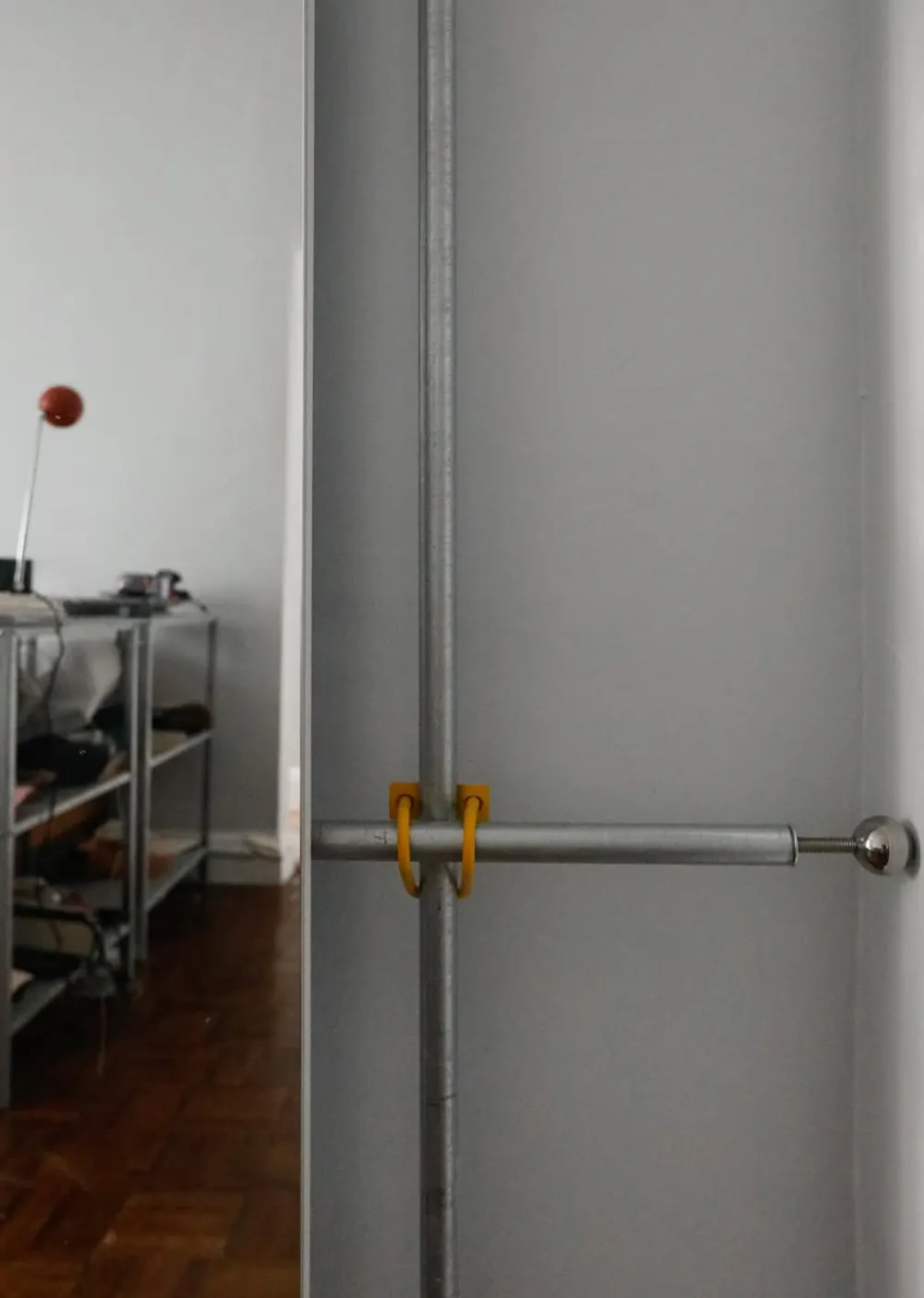

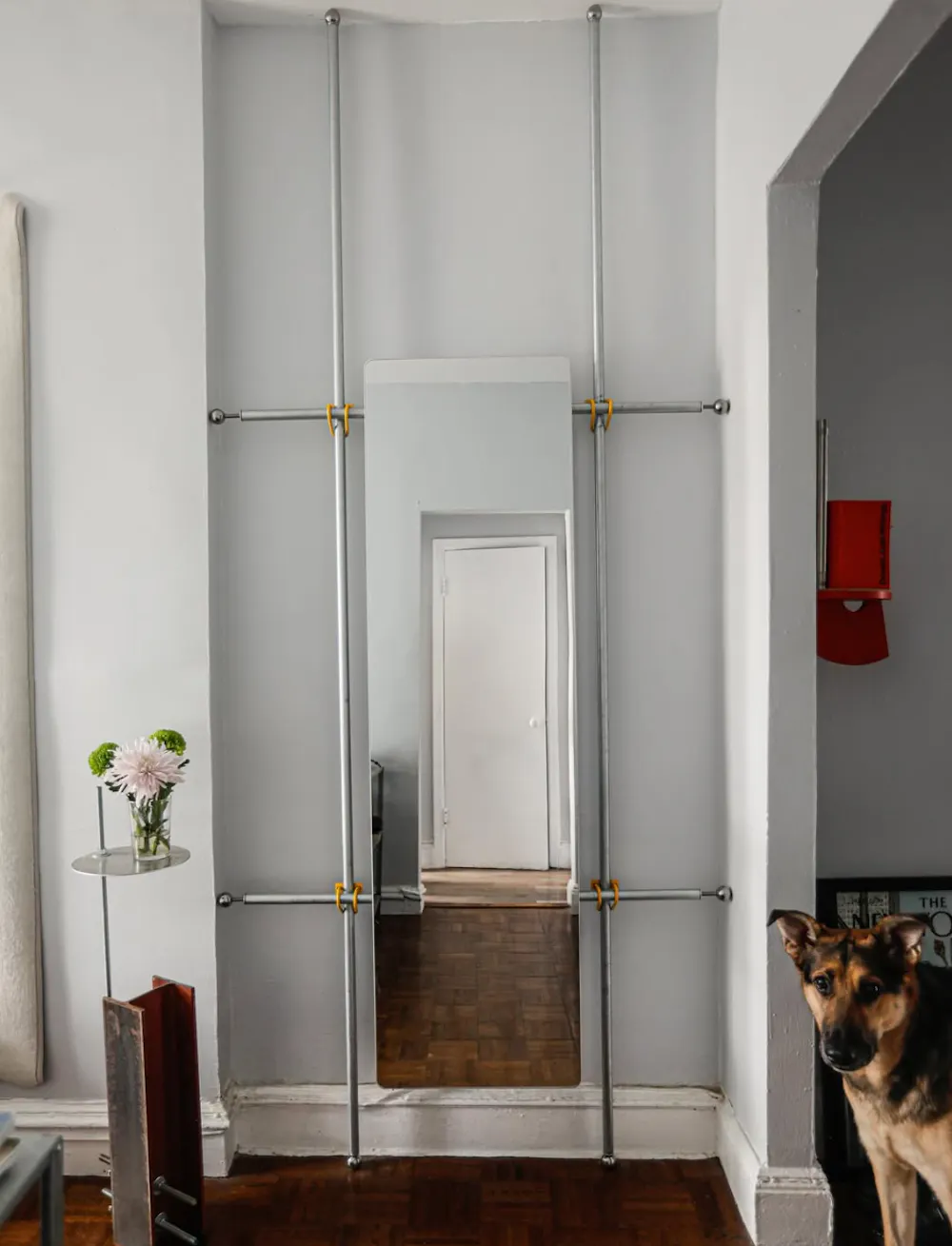

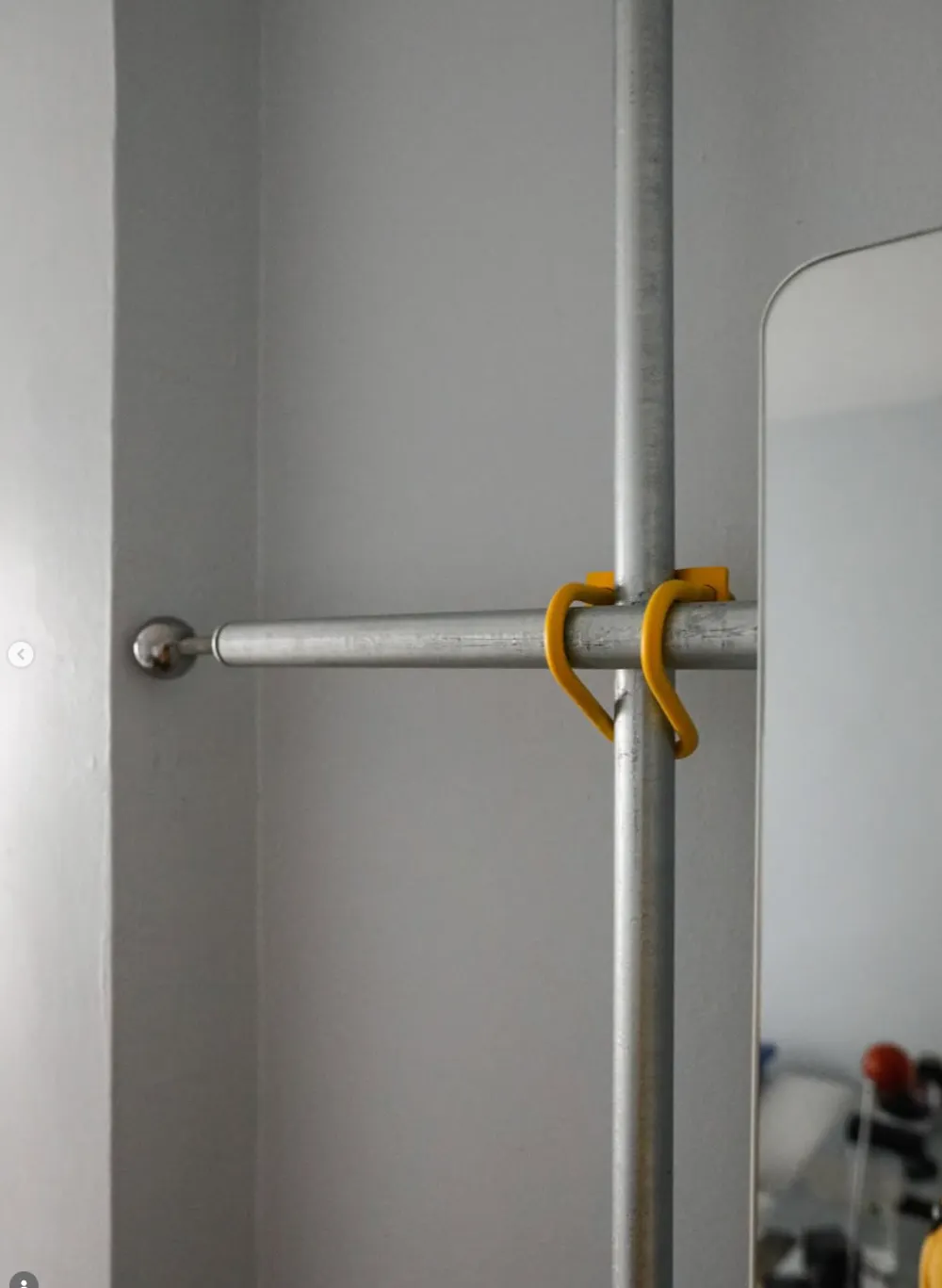

"Finally finished and installed this entry mirror. Designed for no fasteners. Feat. I-beam side table and Renzo." - @ezework

"Here is the finish project minus a couple tweaks here and air. I’m gonna put feet on the bottom supports anyway I really like your product and I’m gonna be a loyal customer." - Marc

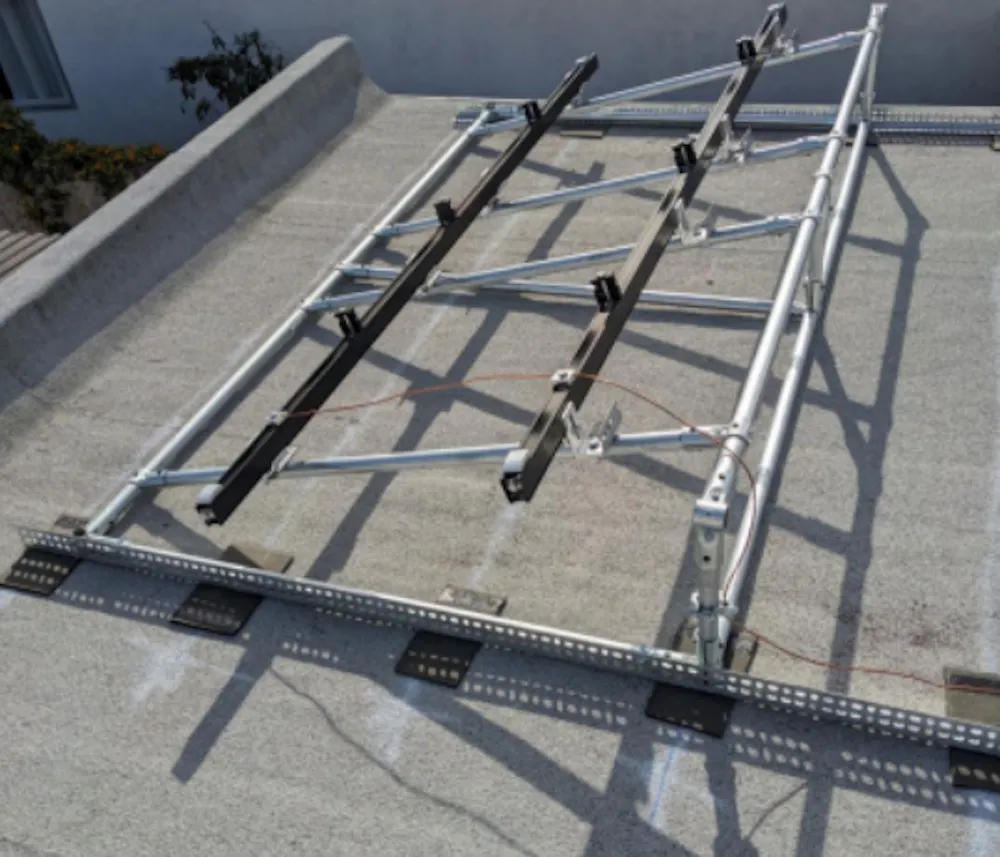

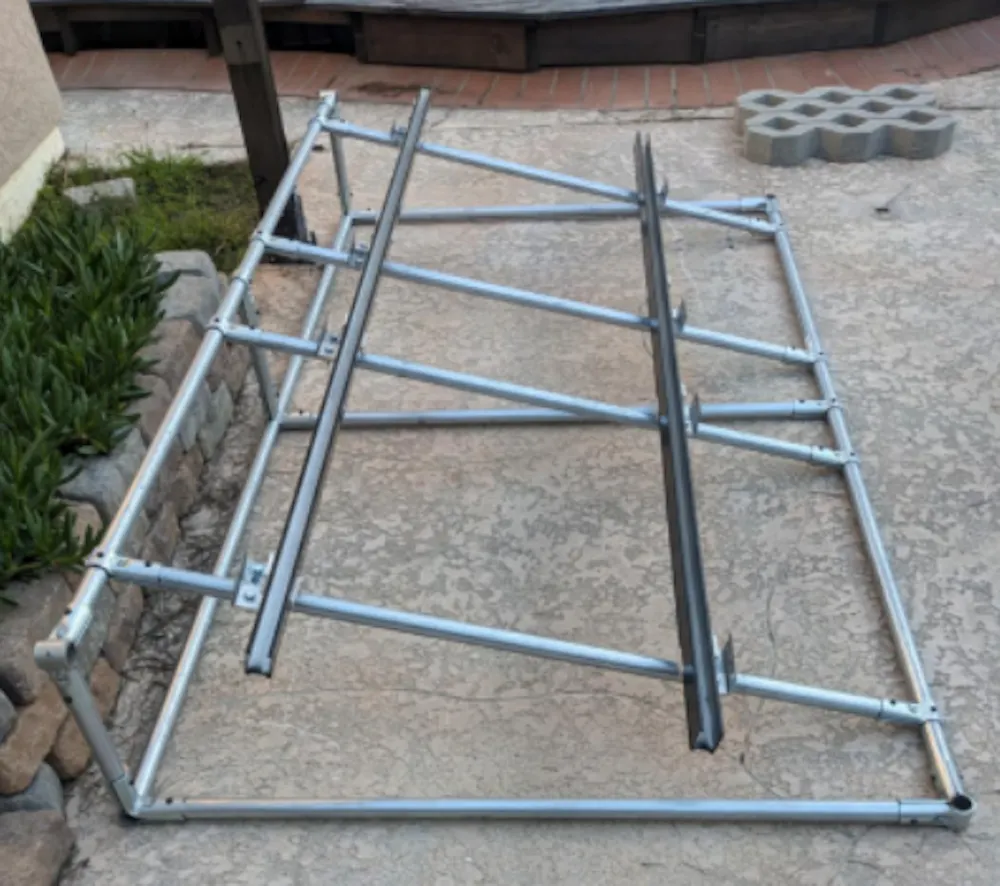

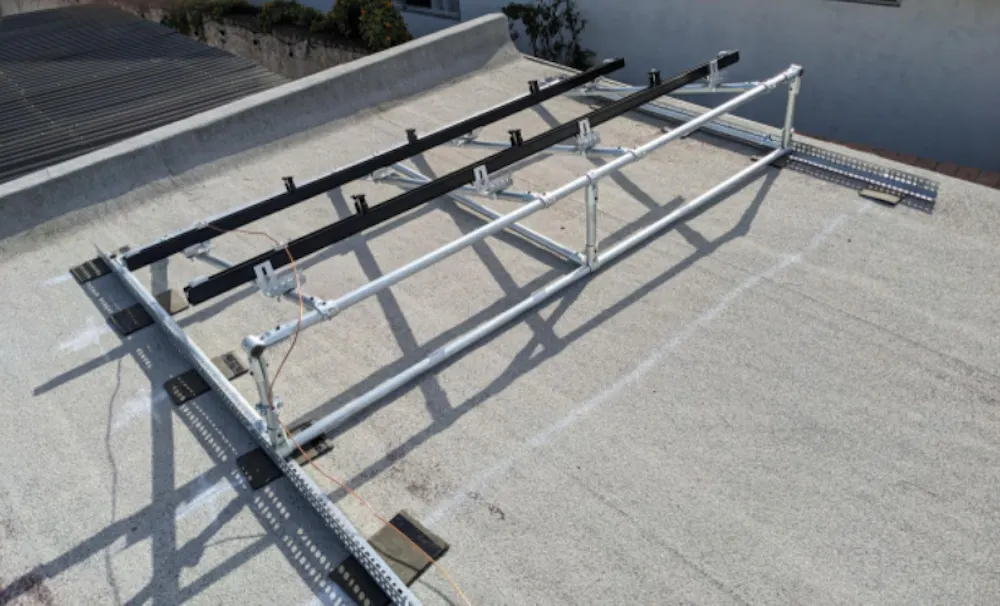

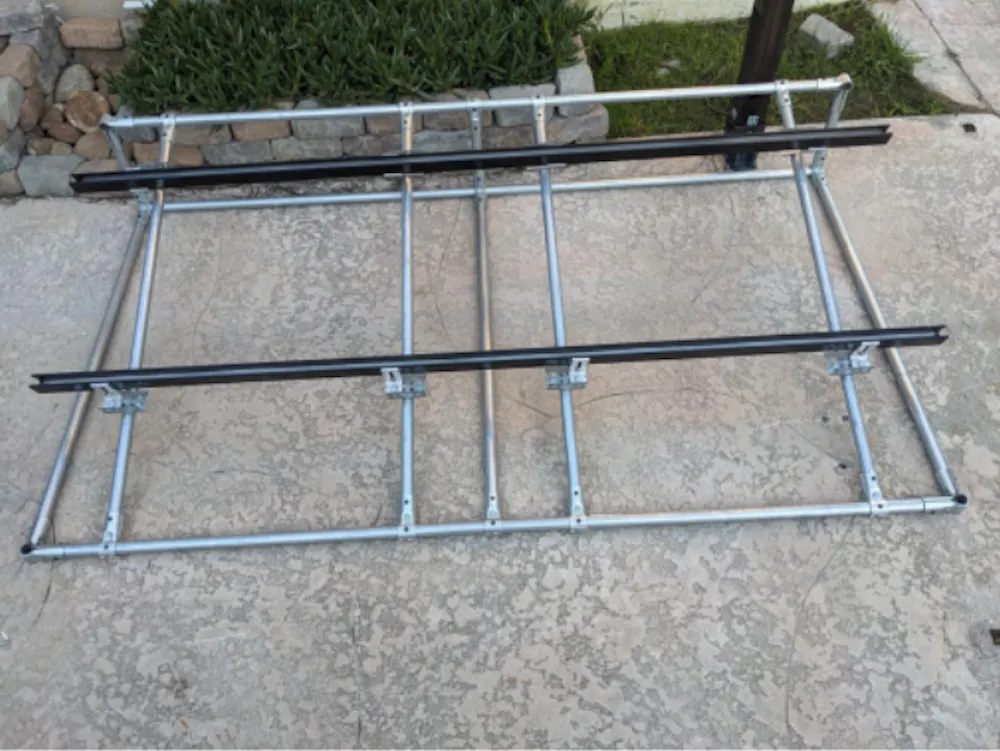

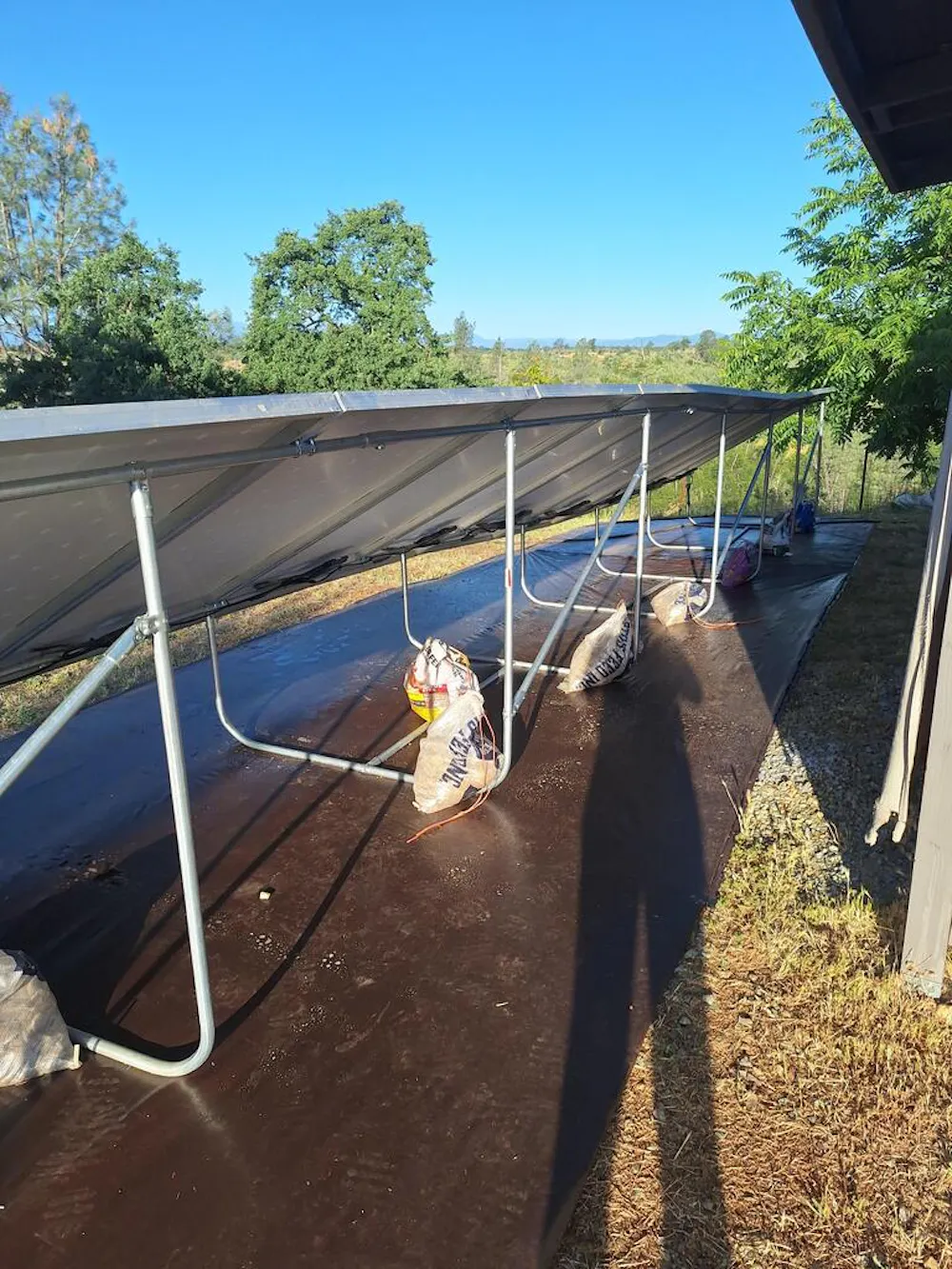

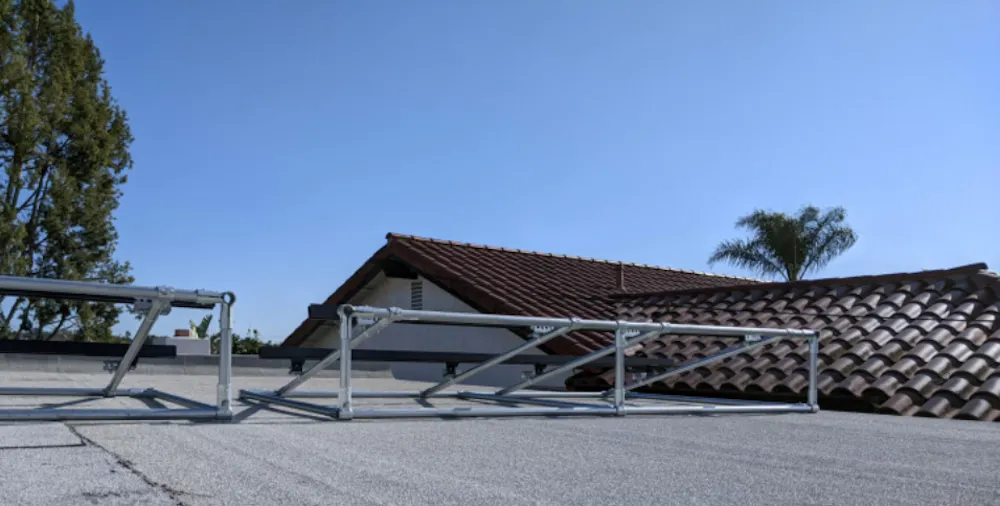

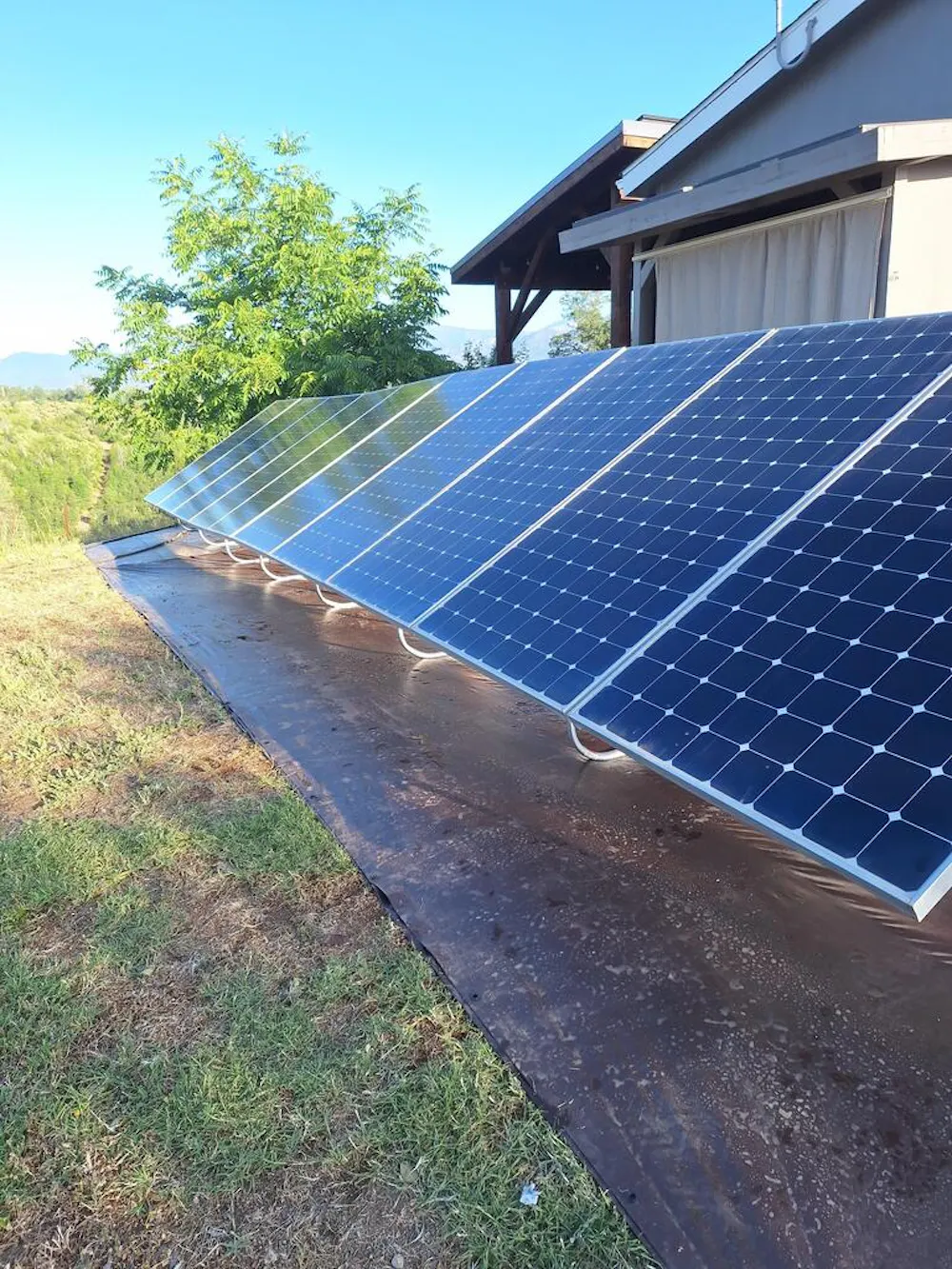

Check out Alan's full write up and photos of his fantastic solar setup!

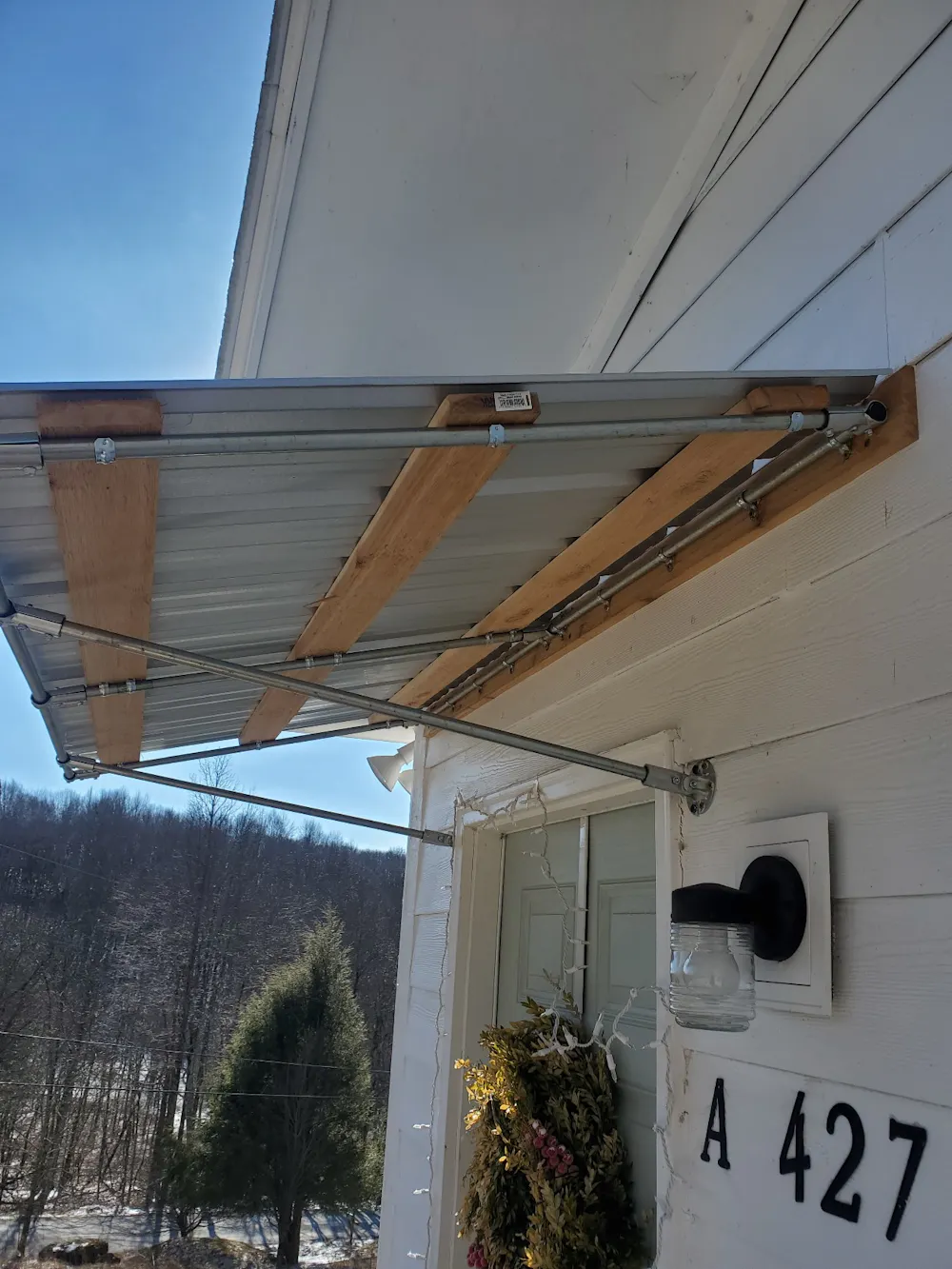

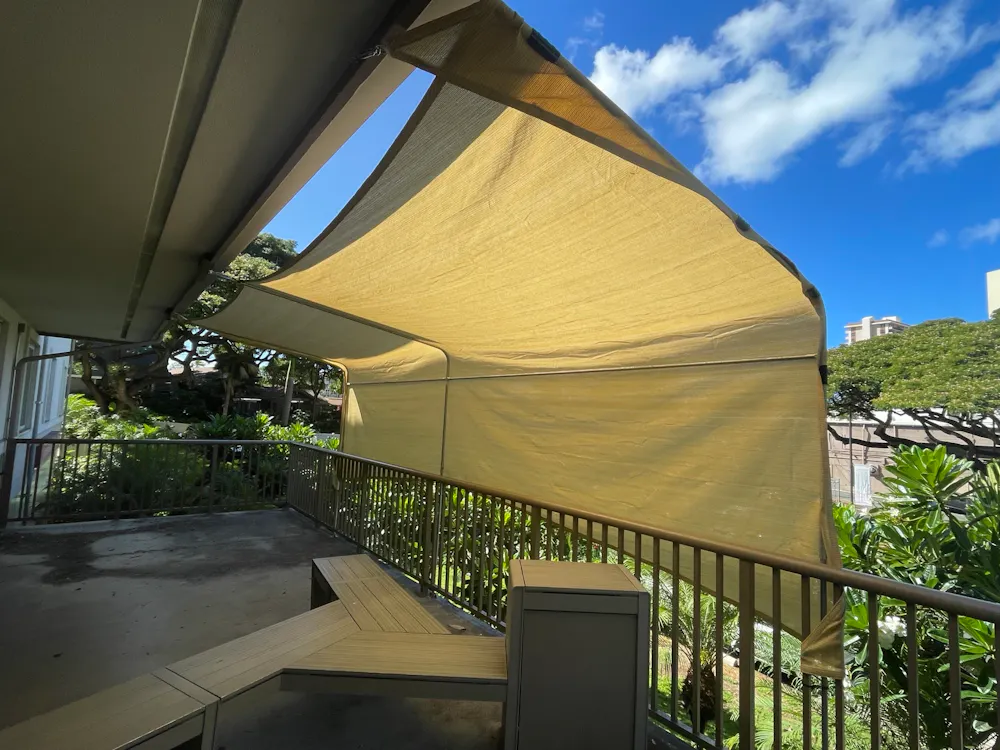

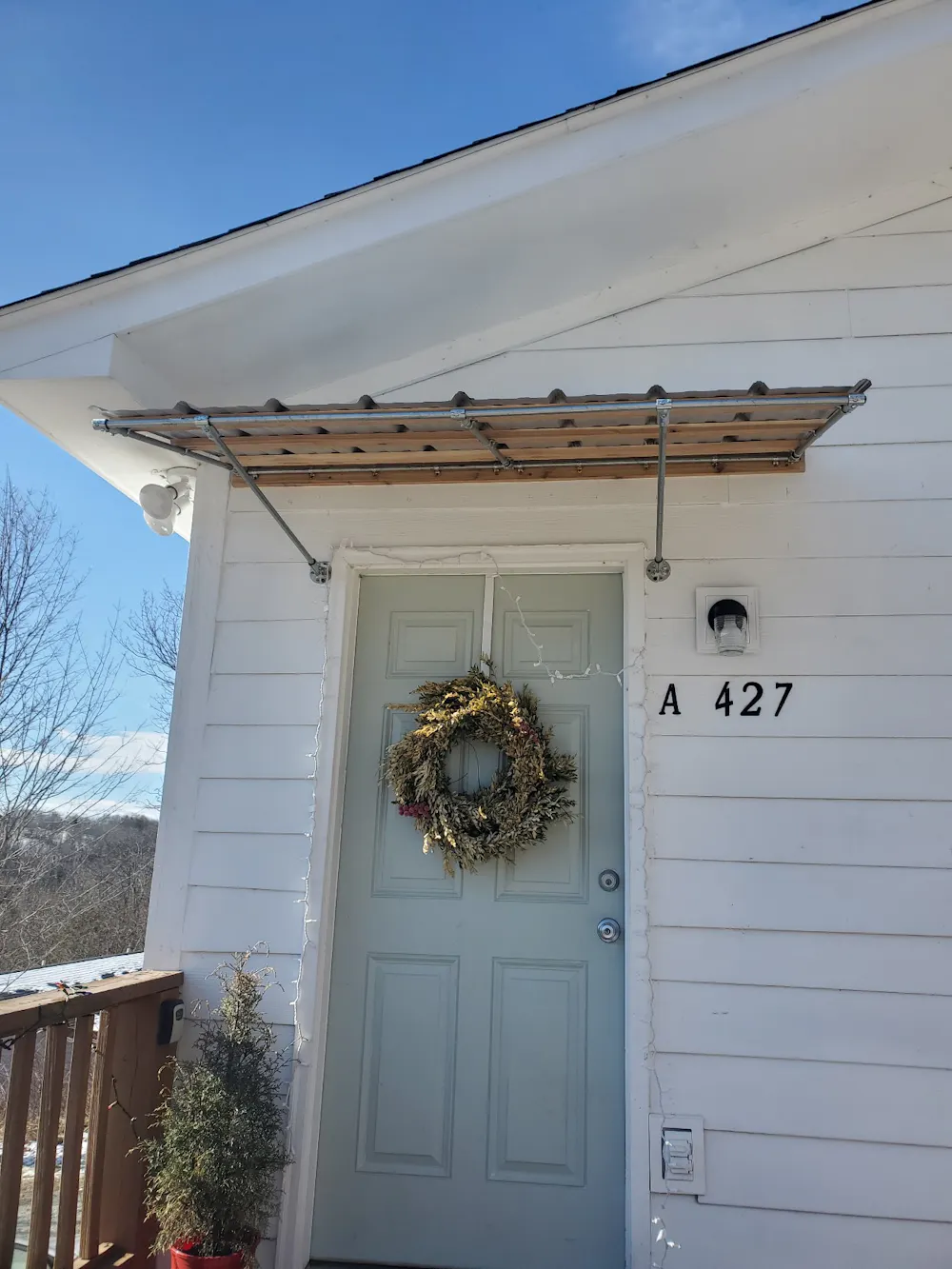

Check out Reda's entryway awning. Great use of technique and materials!

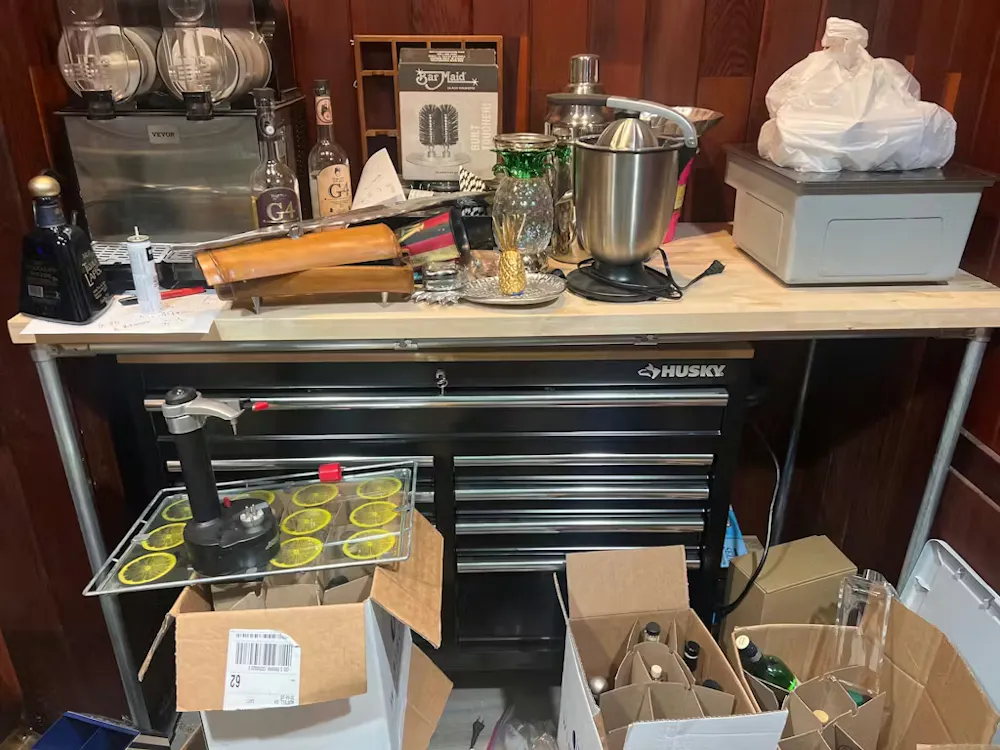

"The maker pipe is literally and adult LEGO. I’m utilizing it to build my back bar table. I have just repurchased in orders to build bistro style shelving and planning on a third purchase for an awning." - Trey

Awesome build from Kimberly!

"With maker pipe you can build things to solve particular problems or to perform particular functions. You can keep on building until you are satisfied. When you are finished, you can make adjustments and add or remove parts to make something completely different. Working with wood is really different. It is a big deal to make a minor adjustments with it.

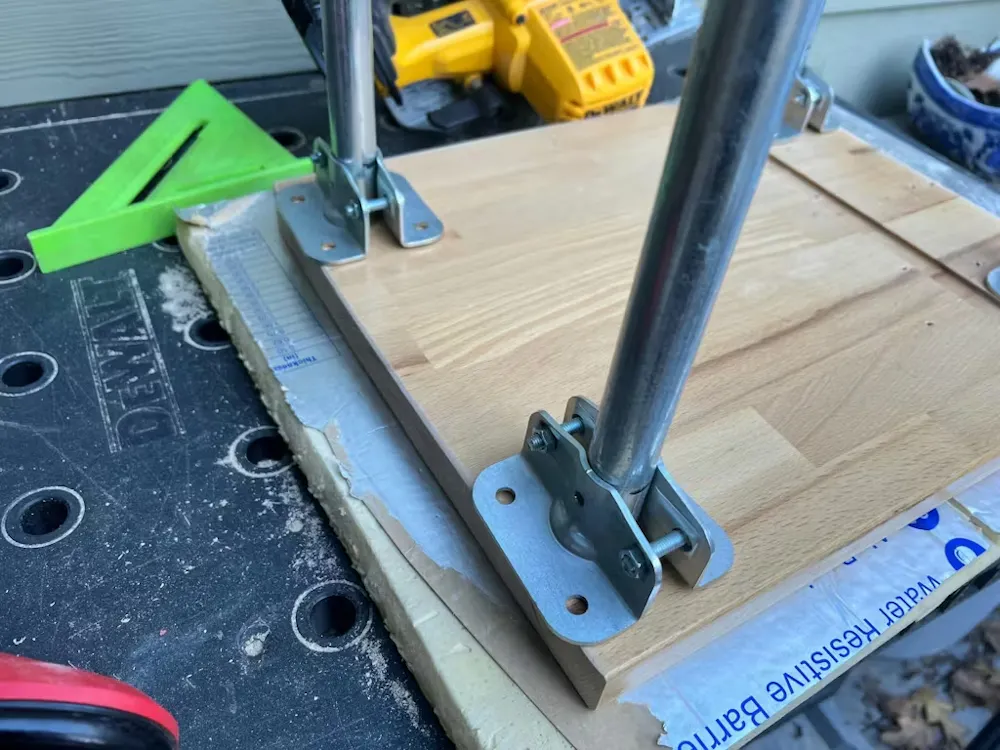

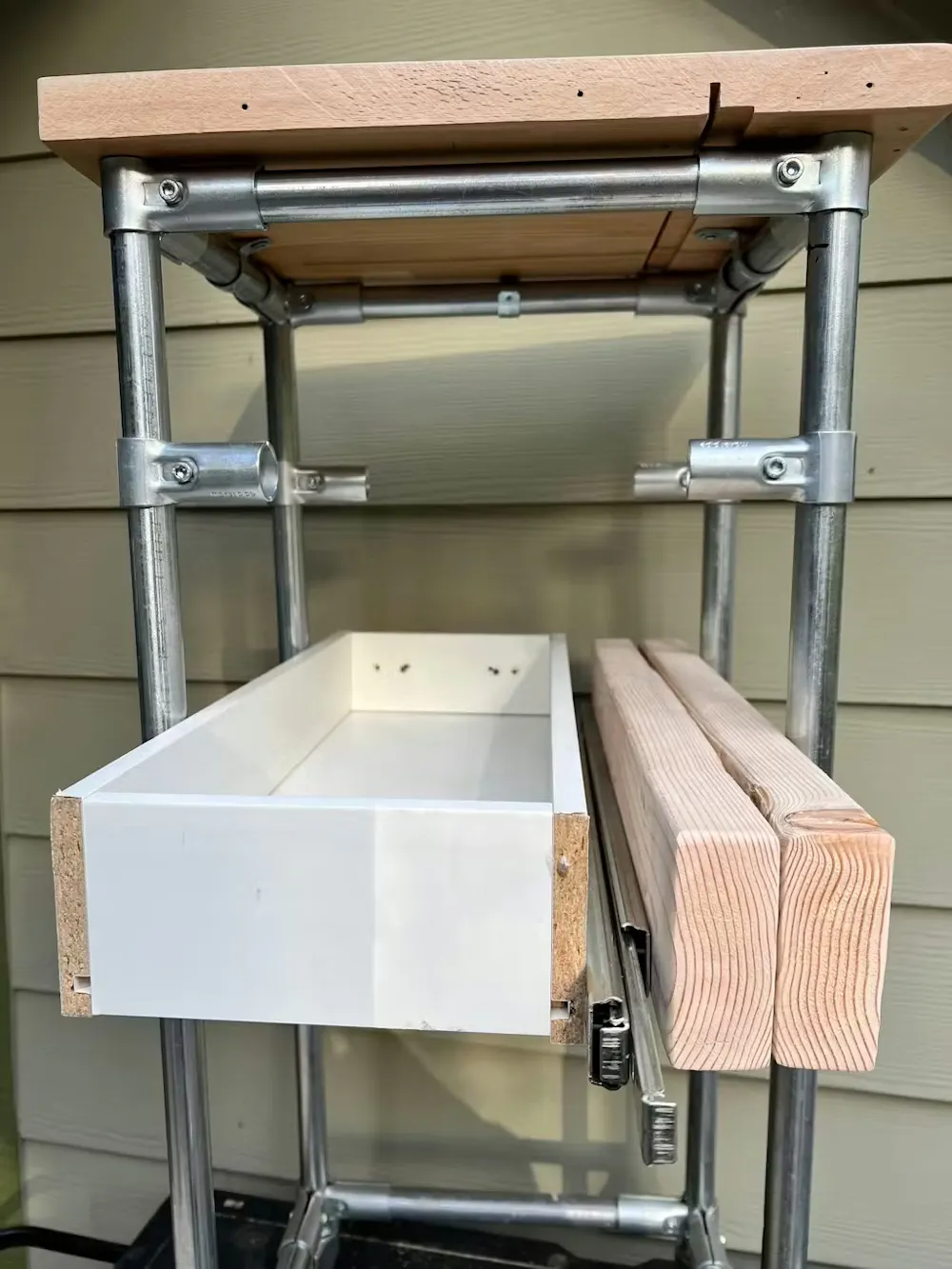

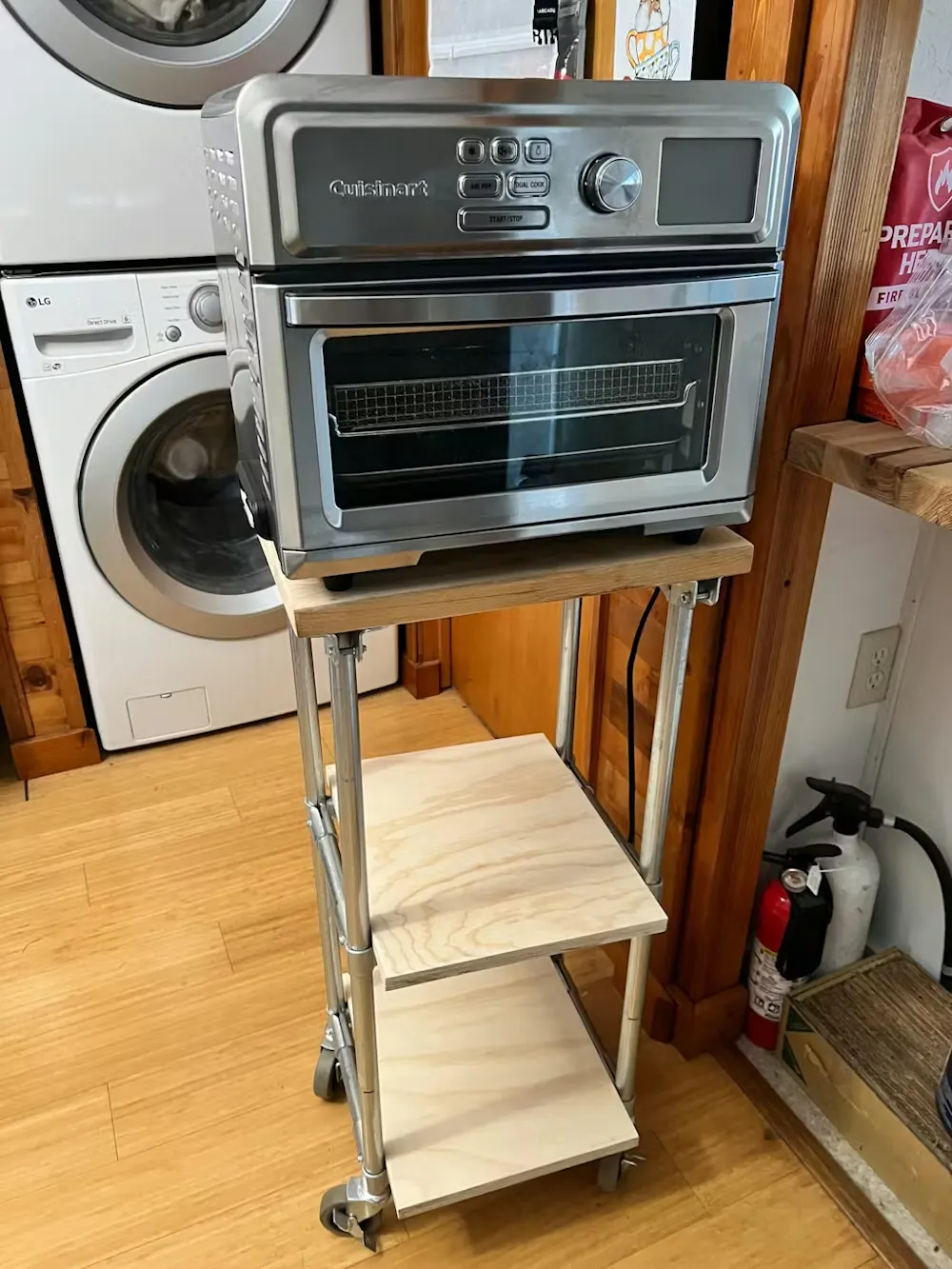

This project is a cart for an air fryer toaster oven. In the instructions they say not to put it directly under a cabinet because they get really hot. I reused a table top from Ikea. I used the measurements on the description of the item to figure out the size of the top. I didn't calculate correctly to use the connectors I selected to mount the top. I was able to take these parts off and used 90 degree connectors and EMT 3/4 inch hangers to mount the top. I need space to put pans on the way in and out of the oven. I'm going to add a little drawer with a piece of plywood on its top that will pull out for a place to work on. I will mount drawer slides on 2x4s and hang them with 3/4 inch hangers to the cart. The T's in the third picture are there temporarily while I mount the drawer."

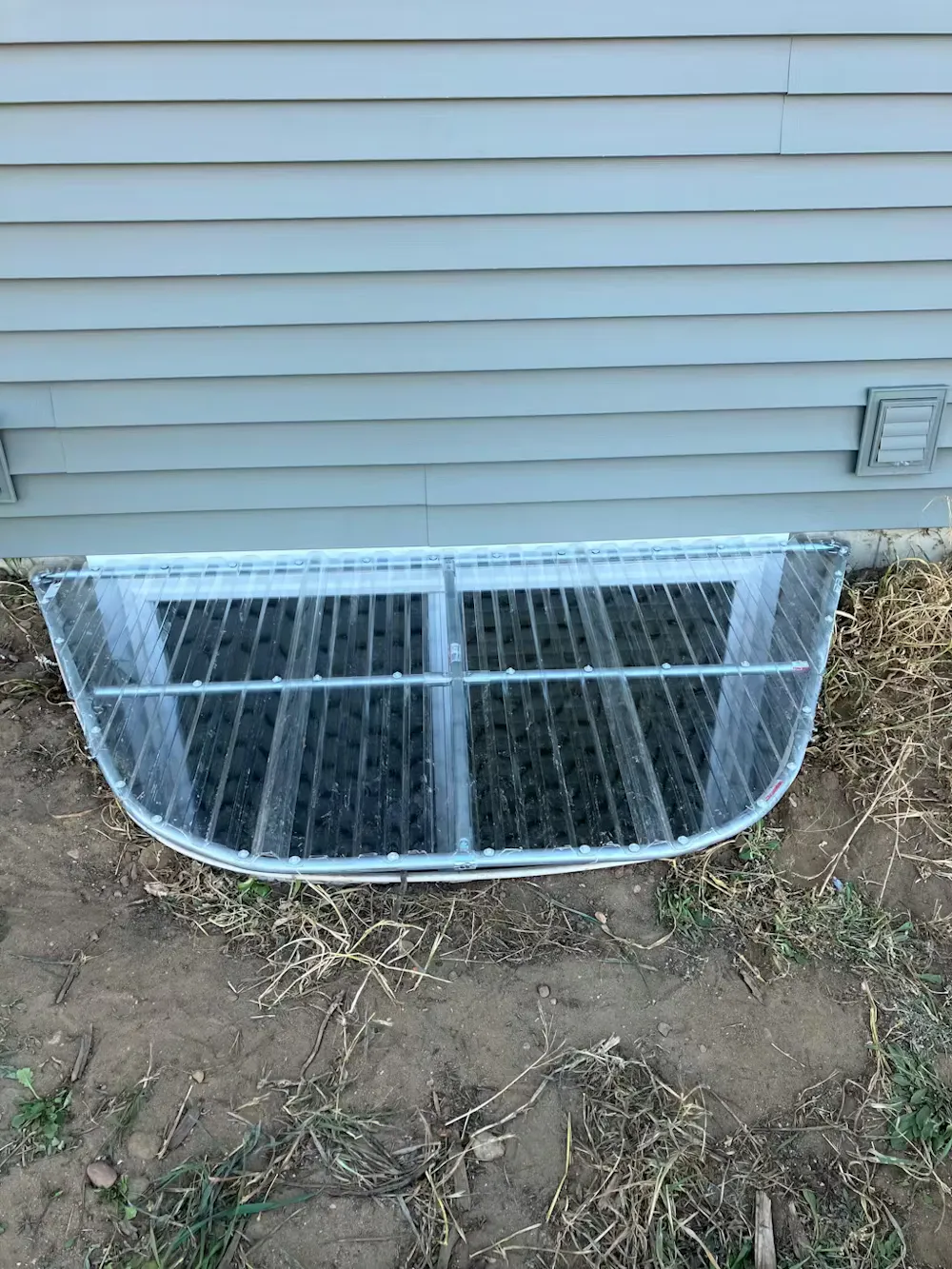

"I made window well covers using Maker Pipe connectors and they worked perfectly. The manufacturer wanted almost $500 for each cover. I made two covers for less than $150! The order was fast and they were easy to use and install." - Al

I have minimal counter space in my new apartment and had a hanging pot rack at my previous place that worked out great, so I used makerpipe connectors and some other goodies to make one to fit the custom space on my counter. I like the idea of combining the EMT with some other pre-made materials to create a custom solution.

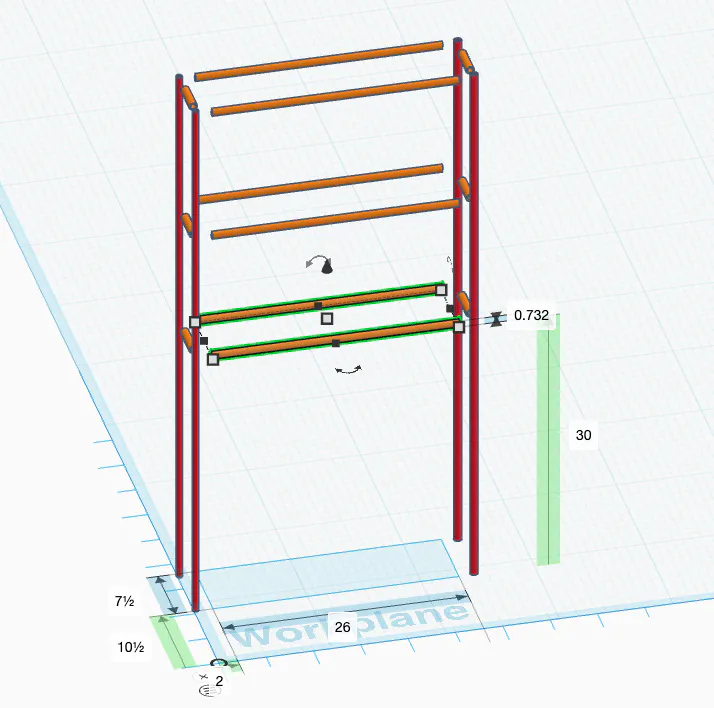

First, I mocked it up in TinkerCad, just to try different options:

Then figured out what cuts and connectors were needed. I also ordered some marine grade shrink tubing to wrap some of the pieces with as an experiment.

Here I tested the frame for height. The black bracket on the wall was the old, very small, very weak, existing shelf.

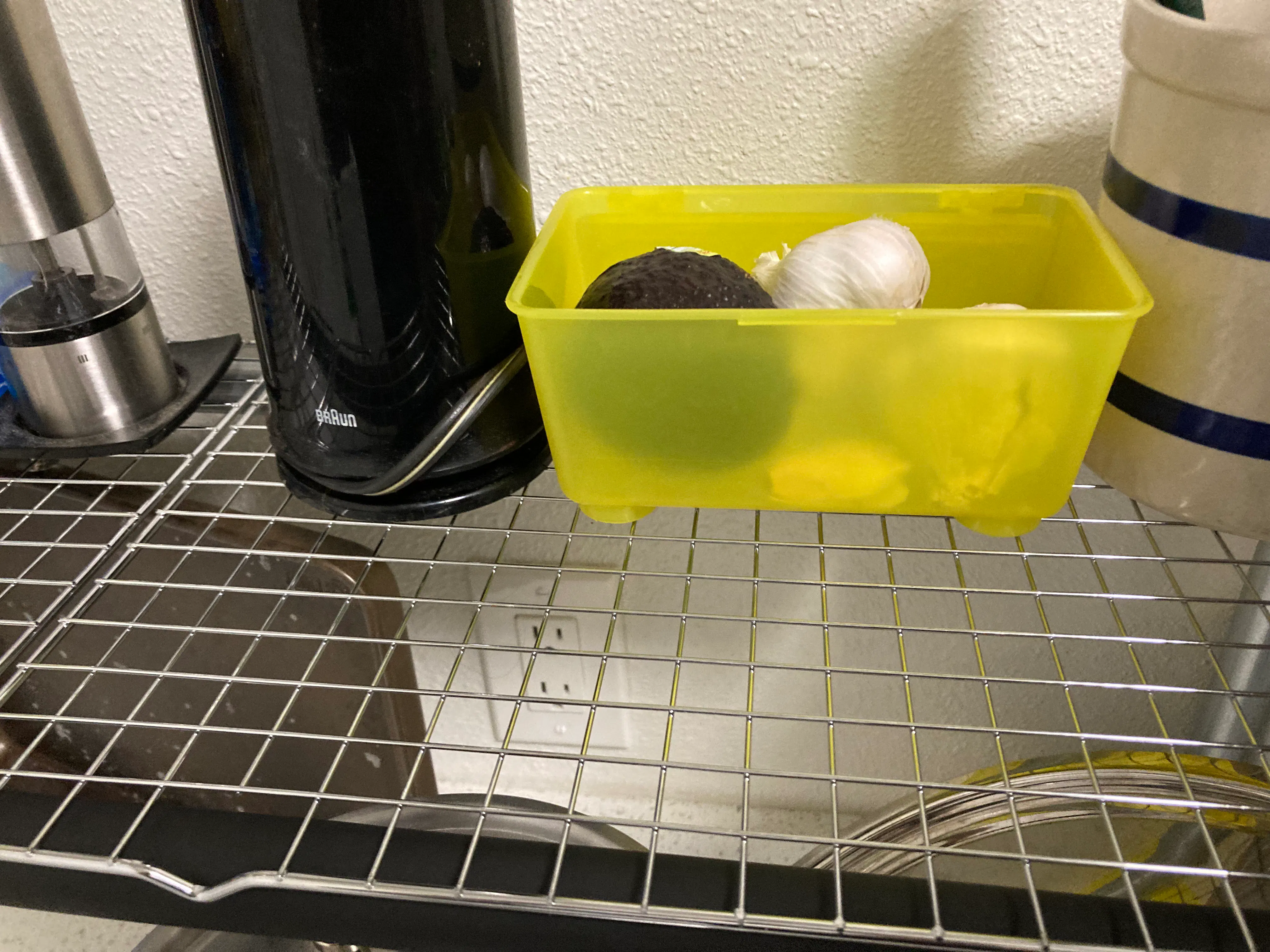

Instead of being limited to that original shelf, I used 10X15 baking racks as shelving to fit the span across the rack. $8.00 for two off of Amazon.

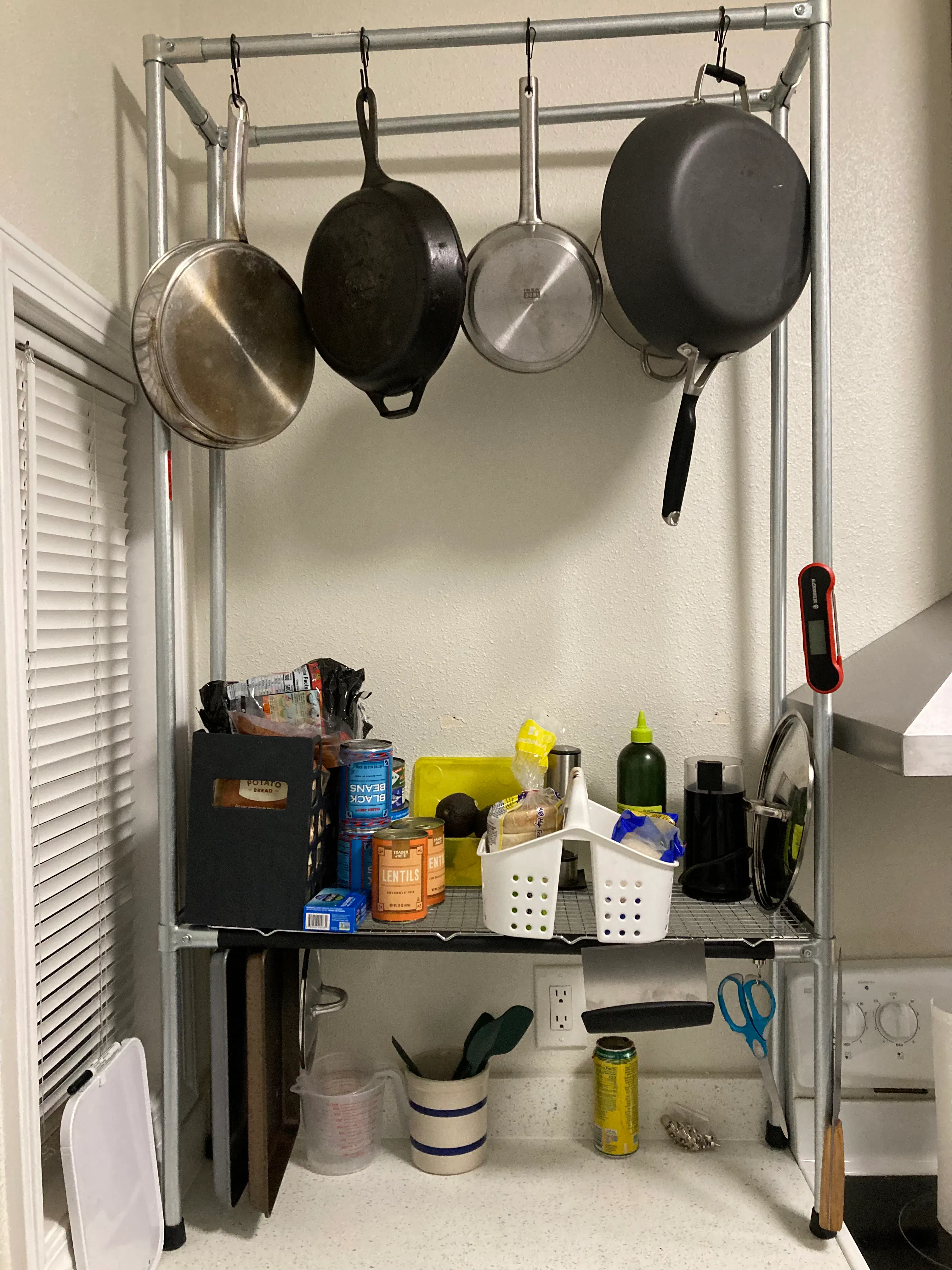

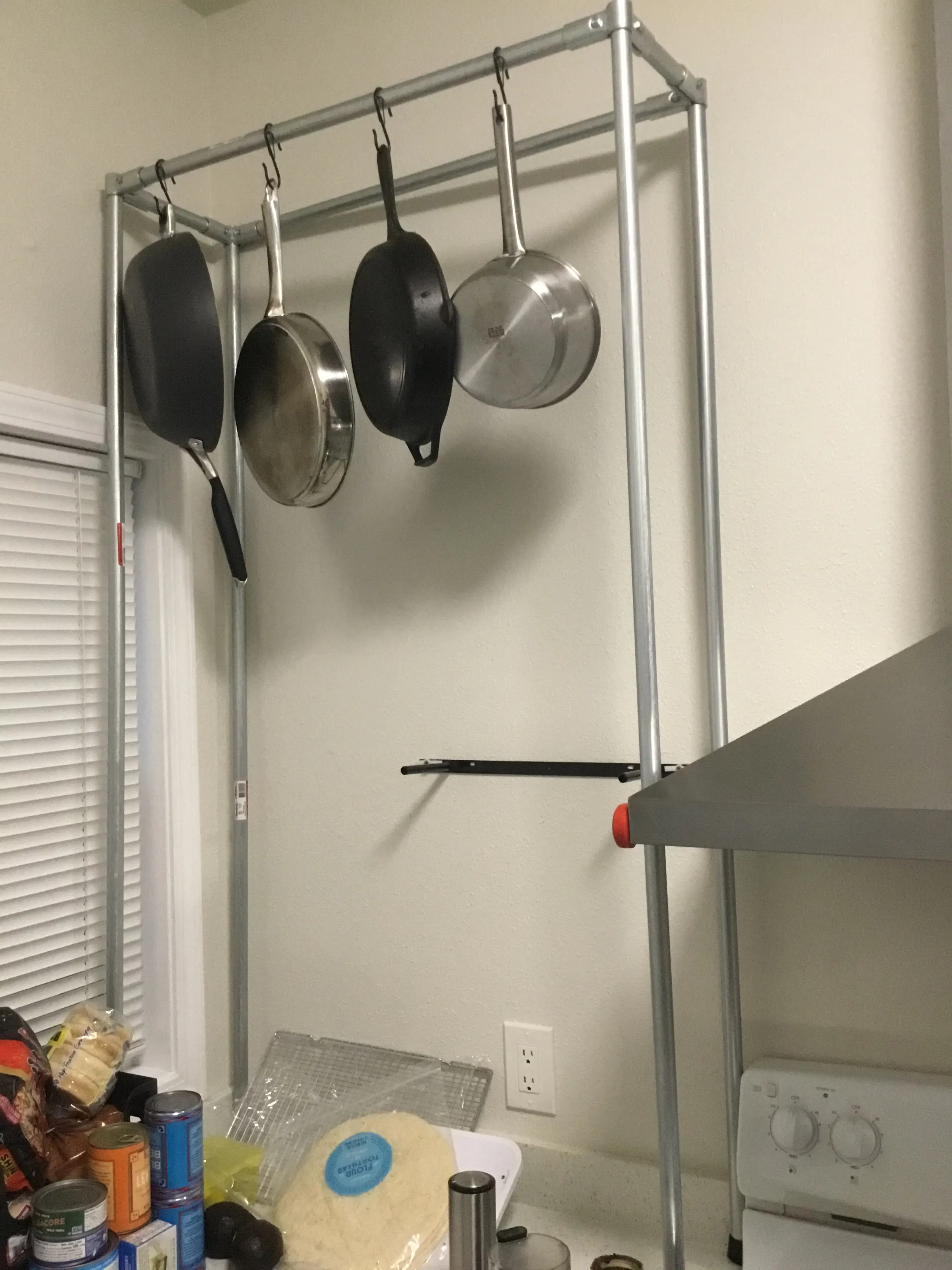

Here is the final rack. The black parts are the shrink tubing, I went with 3/4 and that is fine for the tube, but if I wanted to wrap the connectors I would go much bigger for the shink tube, either 1" or even 1.5", .75 doesnt really cover the connectors all the way, it didn't conform to the curves enough and just ended up splitting.

Final rack and lots of reclaimed counter space!

I hung sheet pans with magnet hooks and can attach other things magnetically. I have enough pipe and connectors for an additional shelf I may add, going to try this for a while and see how it works.

Rough costs:

EMT
4 sticks @ $11.78  = $47.12 (for 3/4 10 foot)

10 foot 3/4 inch cuts:
4 X 60” = 240”
used 2 X 10 foot

4 X 30”  = 120”
used 1 X 10 foot

6 X 14 = 84
from last 1 X 10 foot

90° connectors
8 * $5.95 = $47.60

T connectors
4 * $3.74 = $14.96

 $14.96+47.60+47.12+7.99 = $117.67

I had never built anything like this and never used makerpipe before. The biggest challenge was keeping things square, but cutting was very easy and assembling single-handed was a little bit of challenge, would be easier with the 5 foot spans with two people. Need to get a level to help keep things square. I have plans for some more stuff, maybe a bookshelf, bathroom shelf and a small table. The shrink tubing changes the look a lot and really like it, however I have since found a place that sells colored emt, including black and purple, so I would only have to shrink tube the connectors to give it a less industrial look.

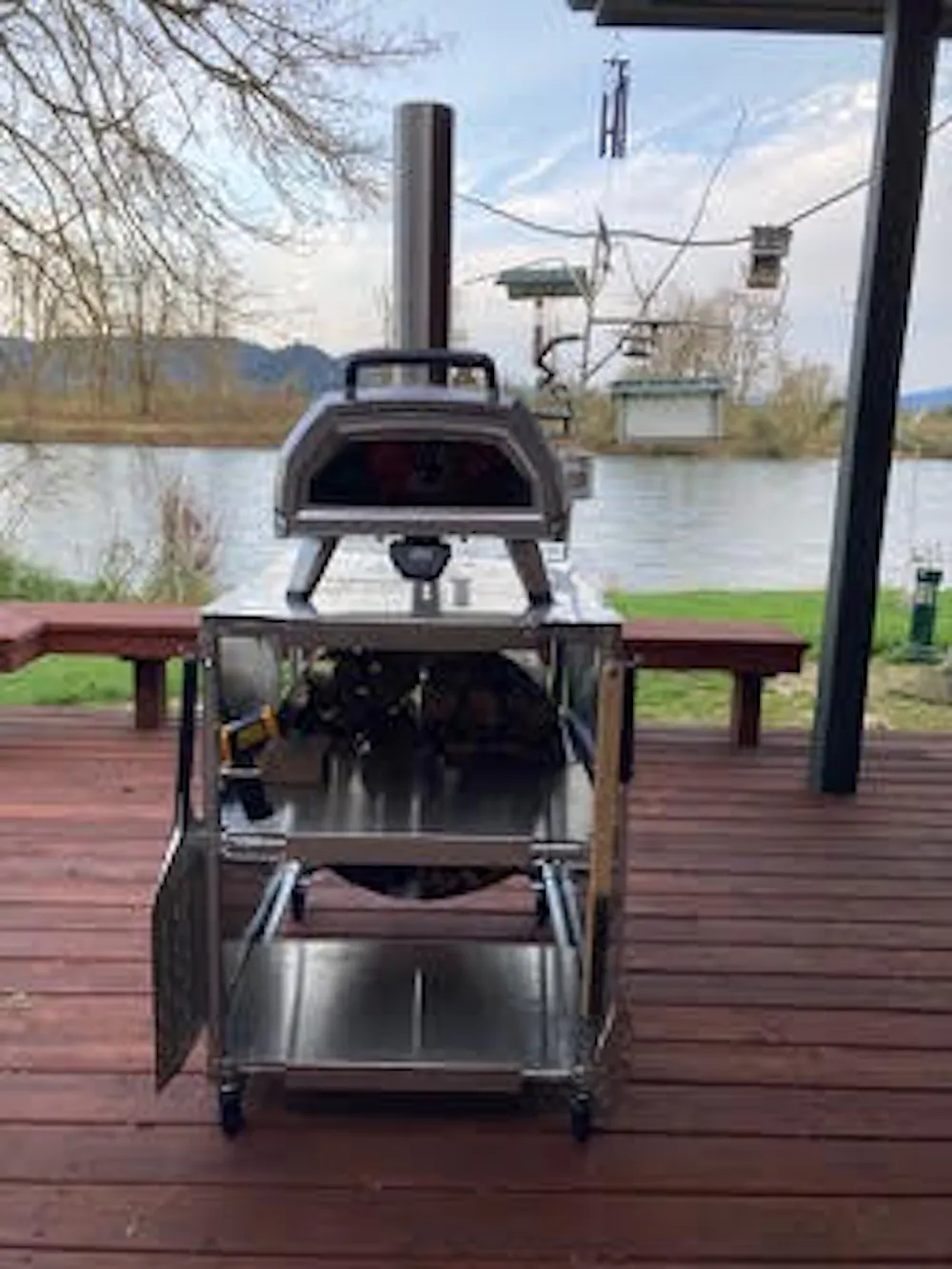

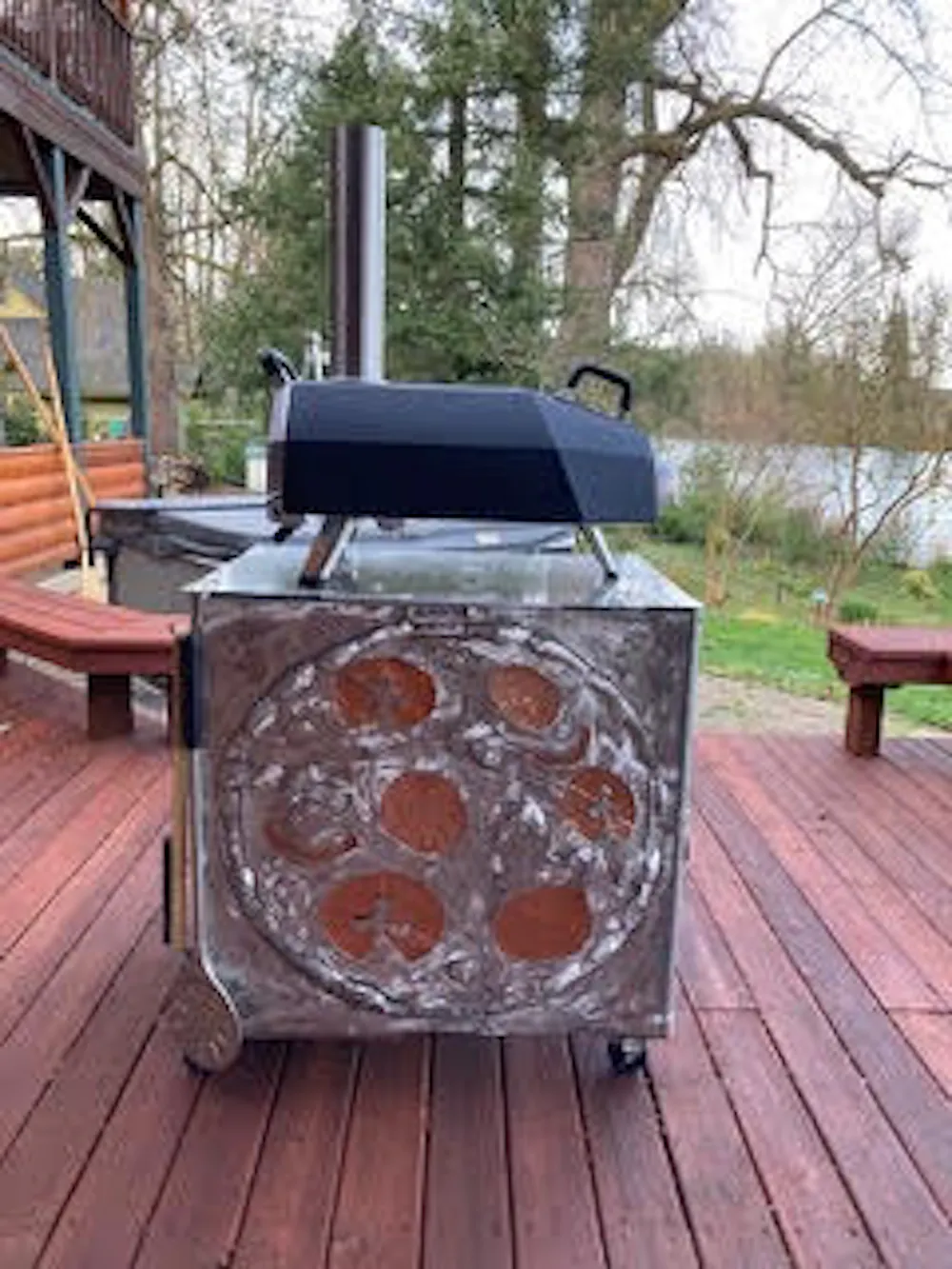

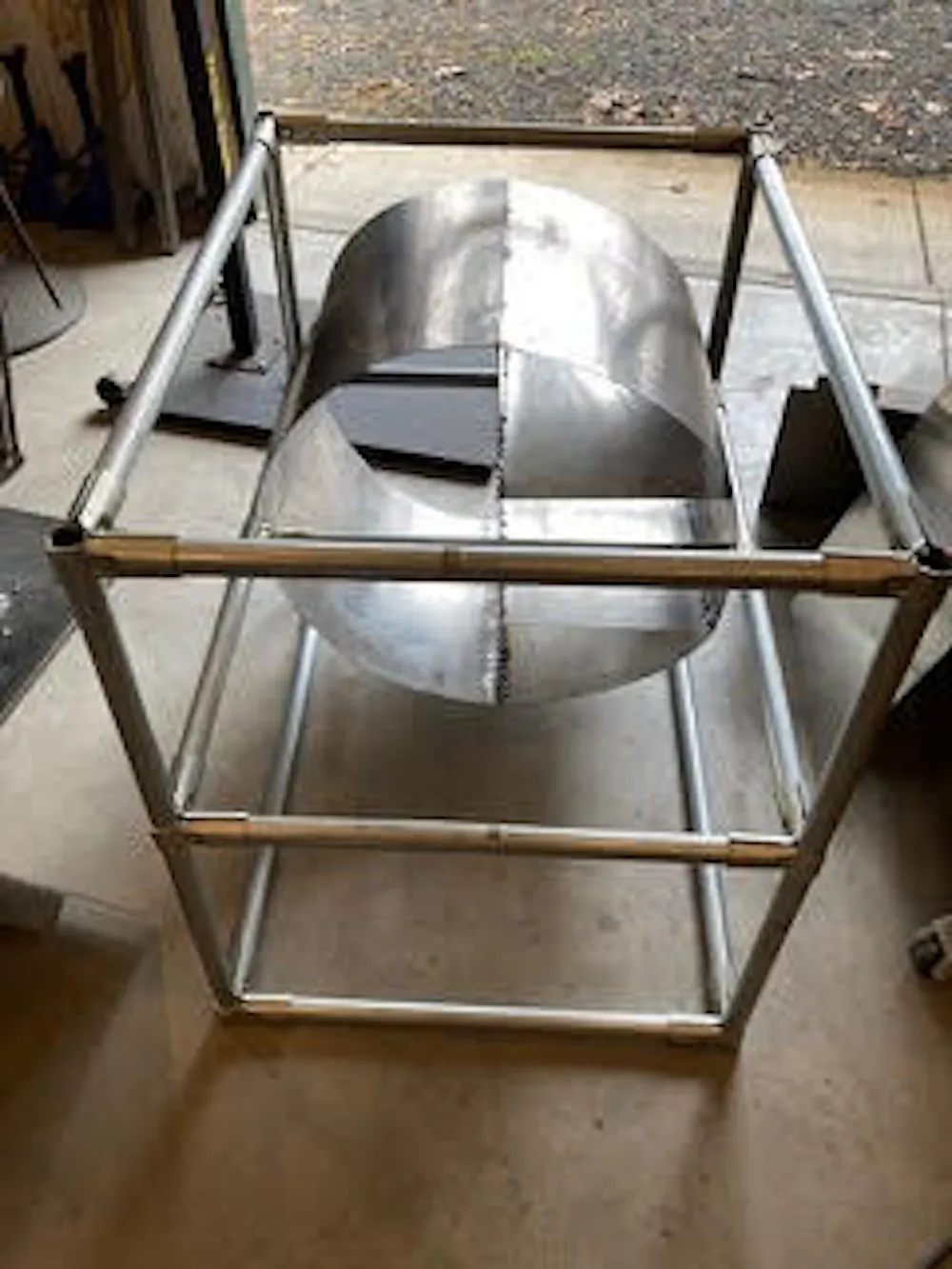

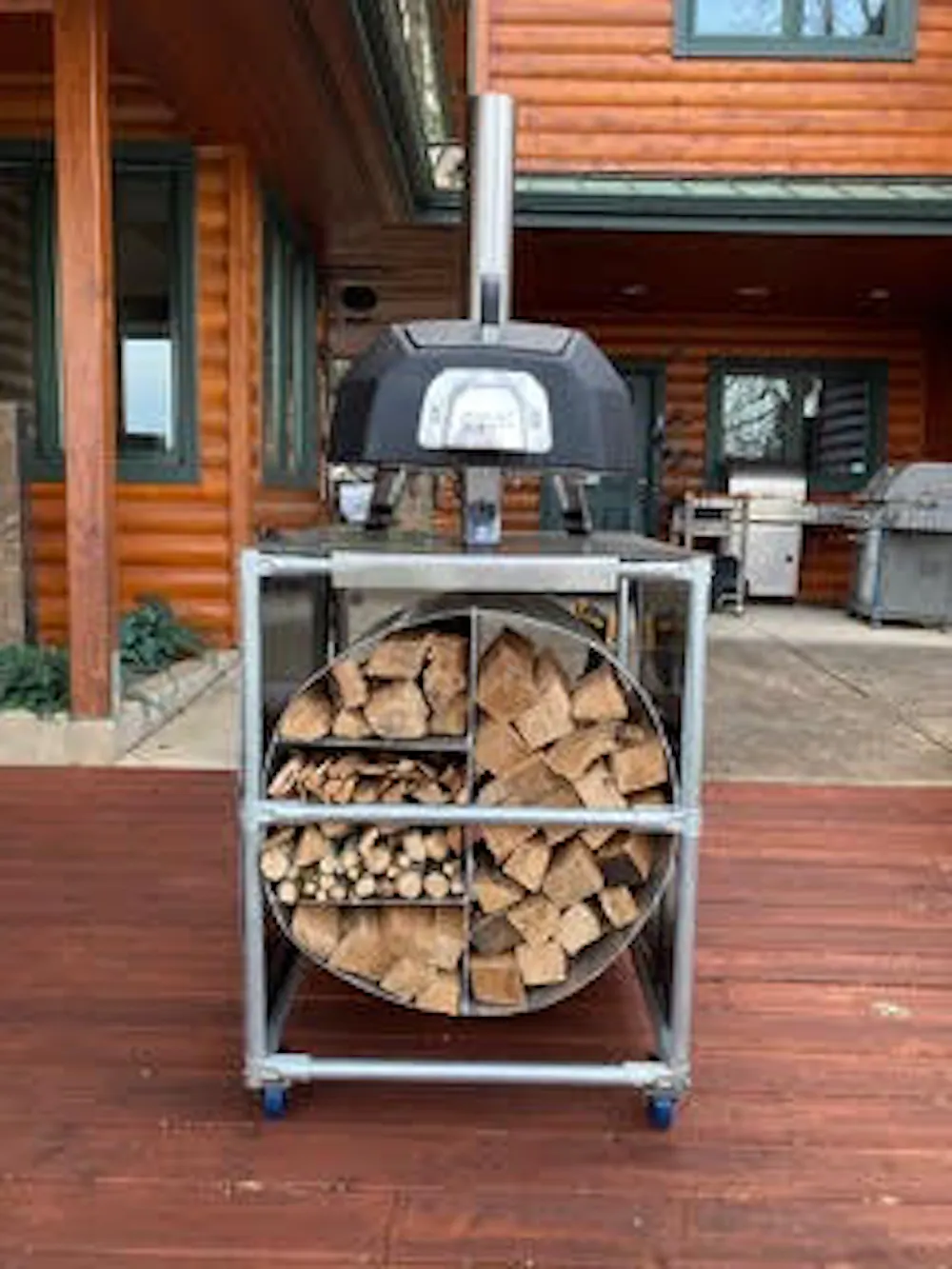

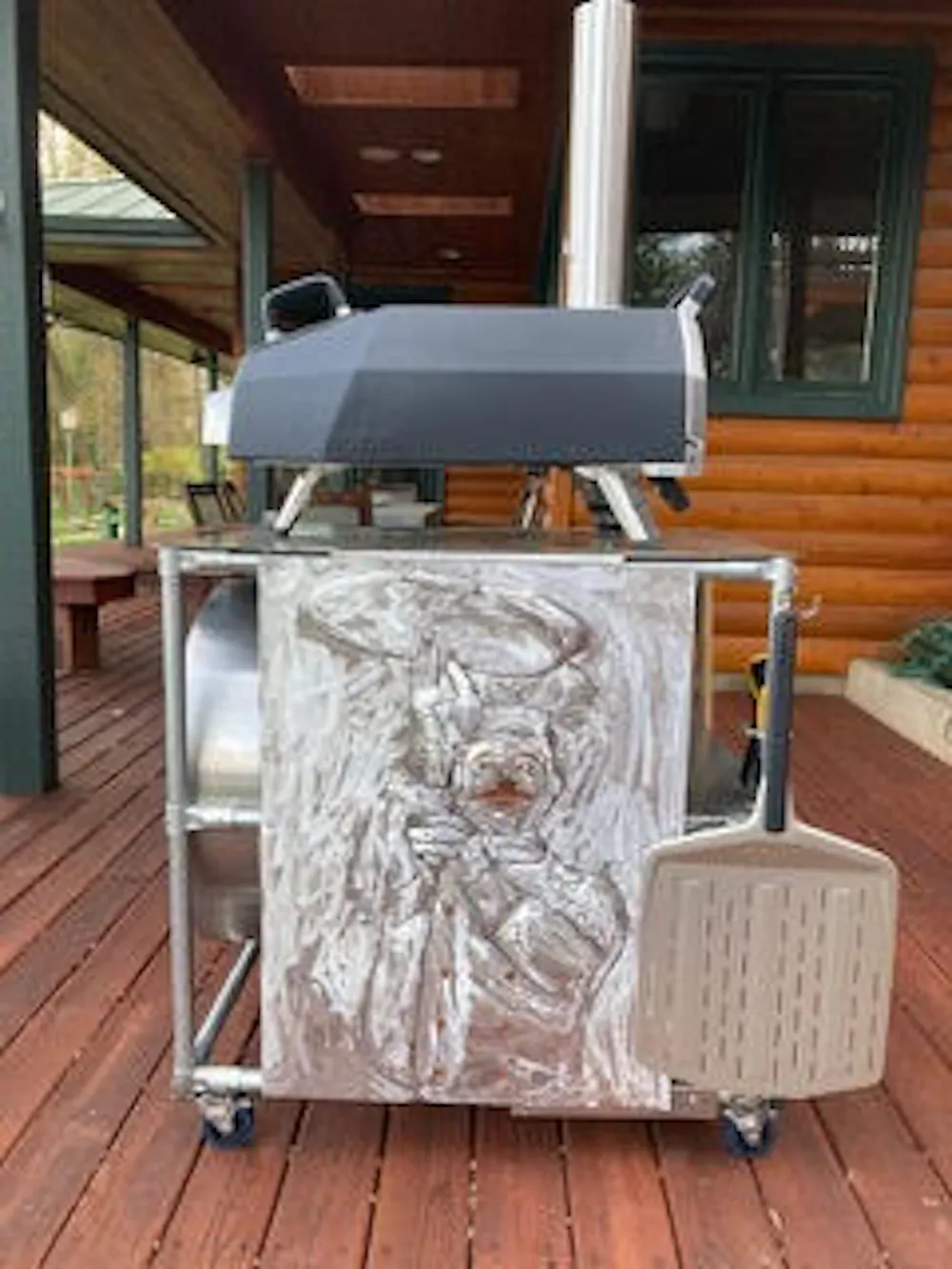

"I finished my second project using your Maker Pipe connectors. My children gave me a pizza oven and I built a cart for it: 1” EMT, Maker Pipe connectors with reinforcing screws, stainless steel top shelf, aluminum middle and bottom shelves, aluminum cylindrical wood storage, aluminum and copper art work (chasing and repousse). The oven quickly heats to 850 F and the pizzas are done in 90 seconds." - Steve

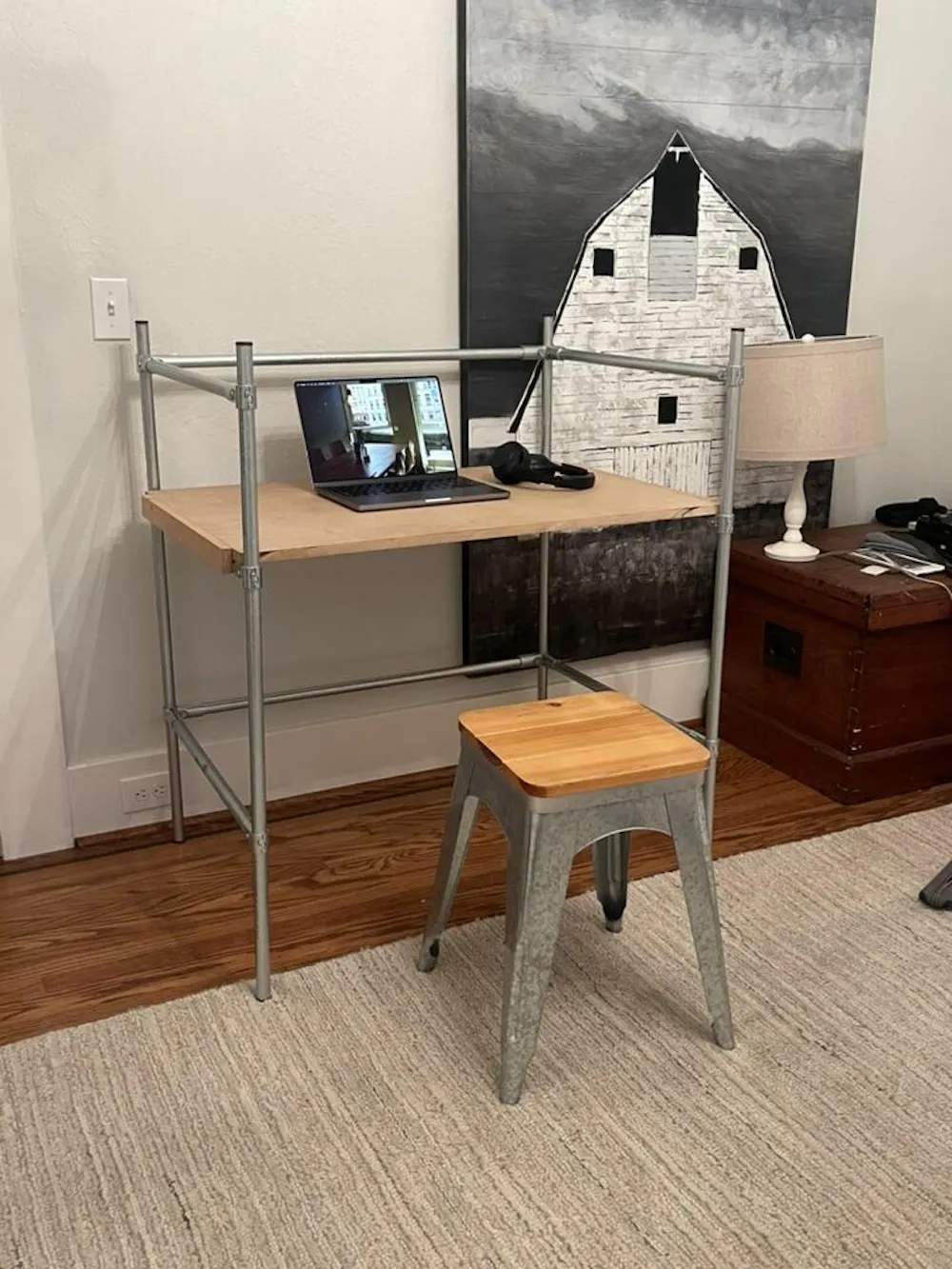

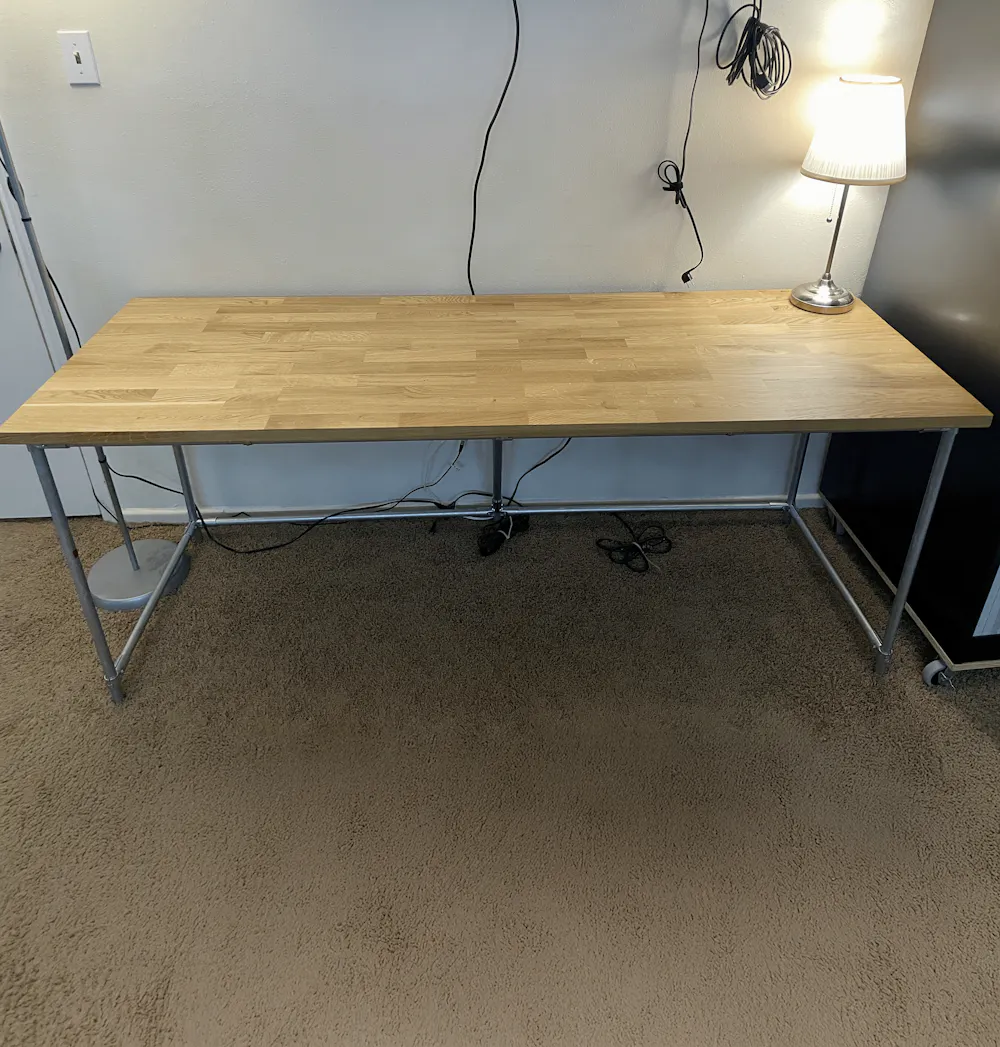

Here's a great desk from Alex!

Check out this cool table that @ezework built and shared on IG!

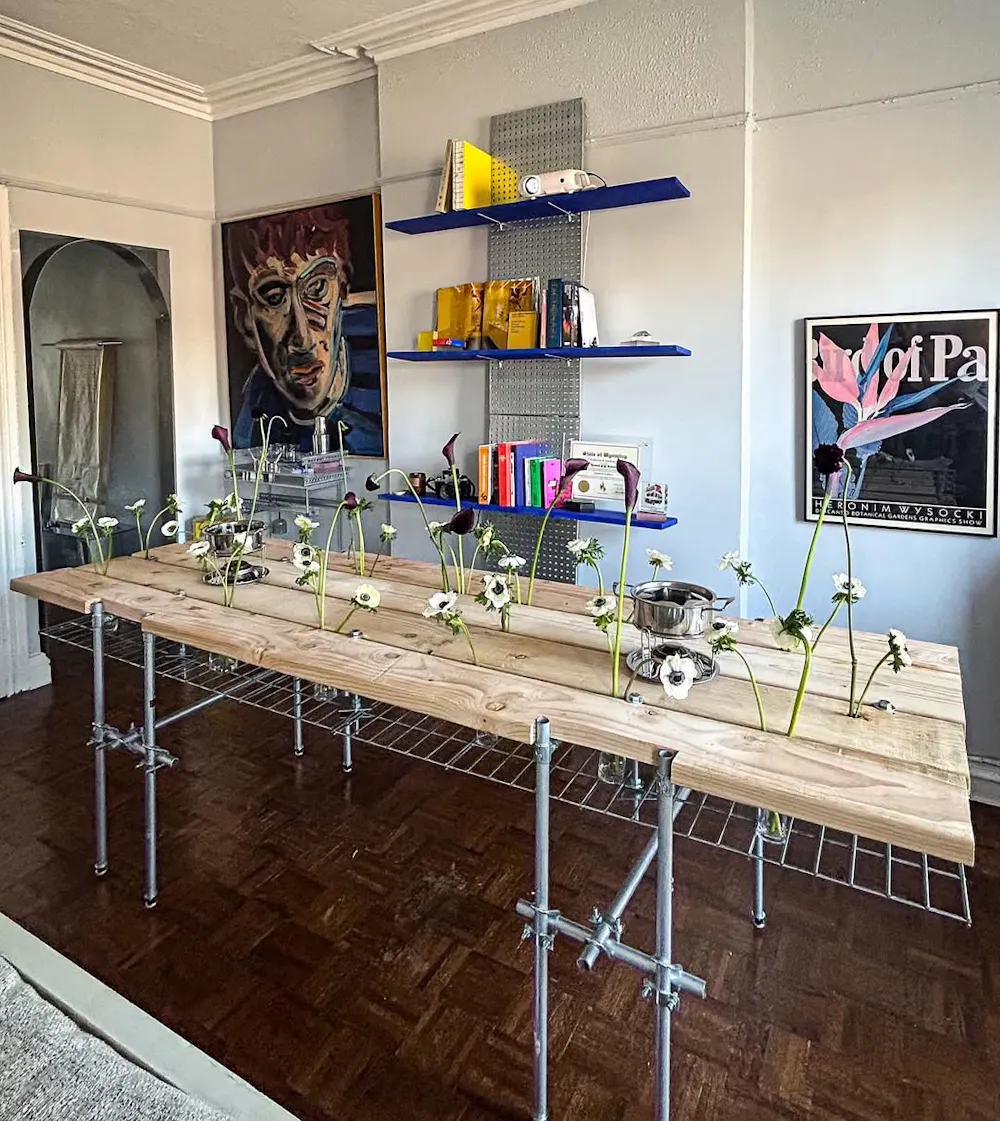

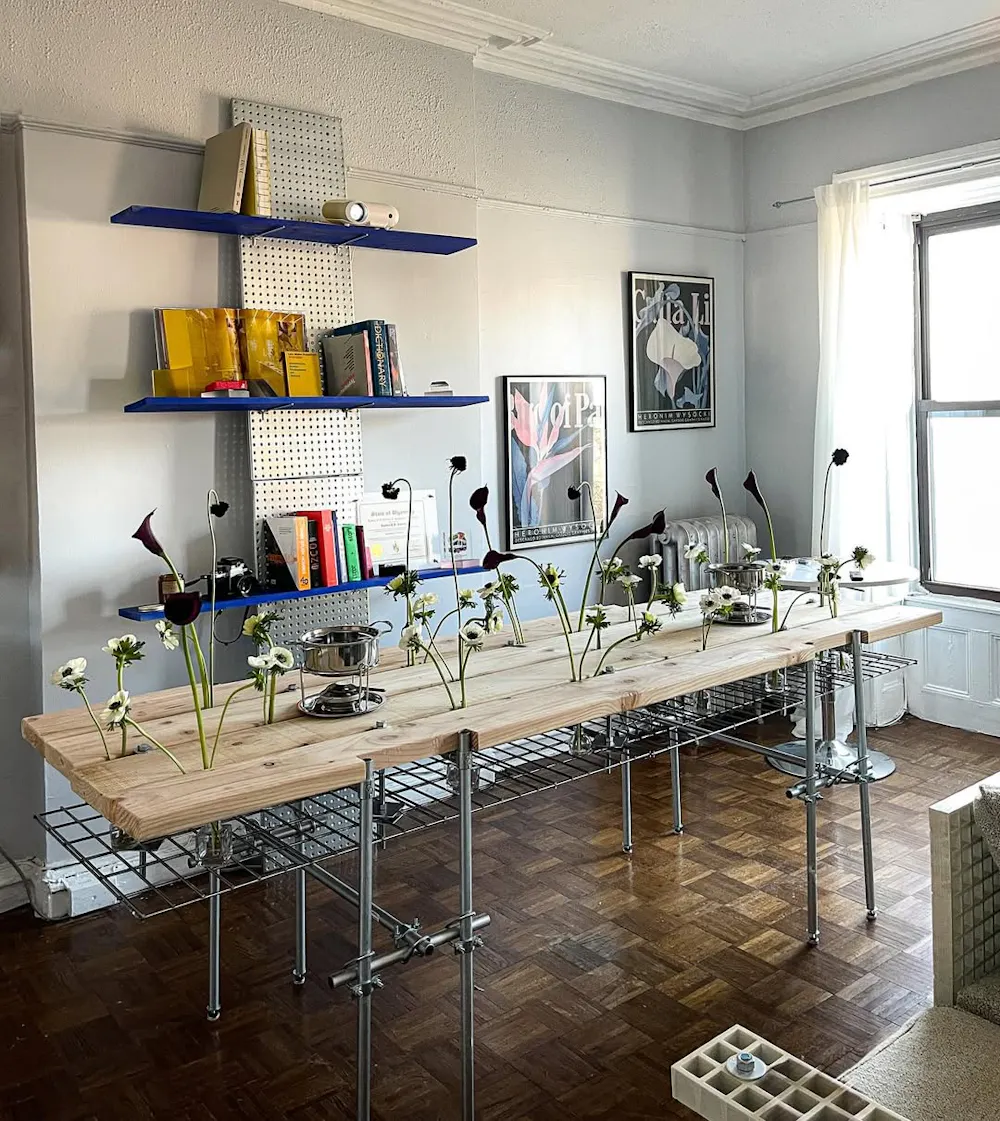

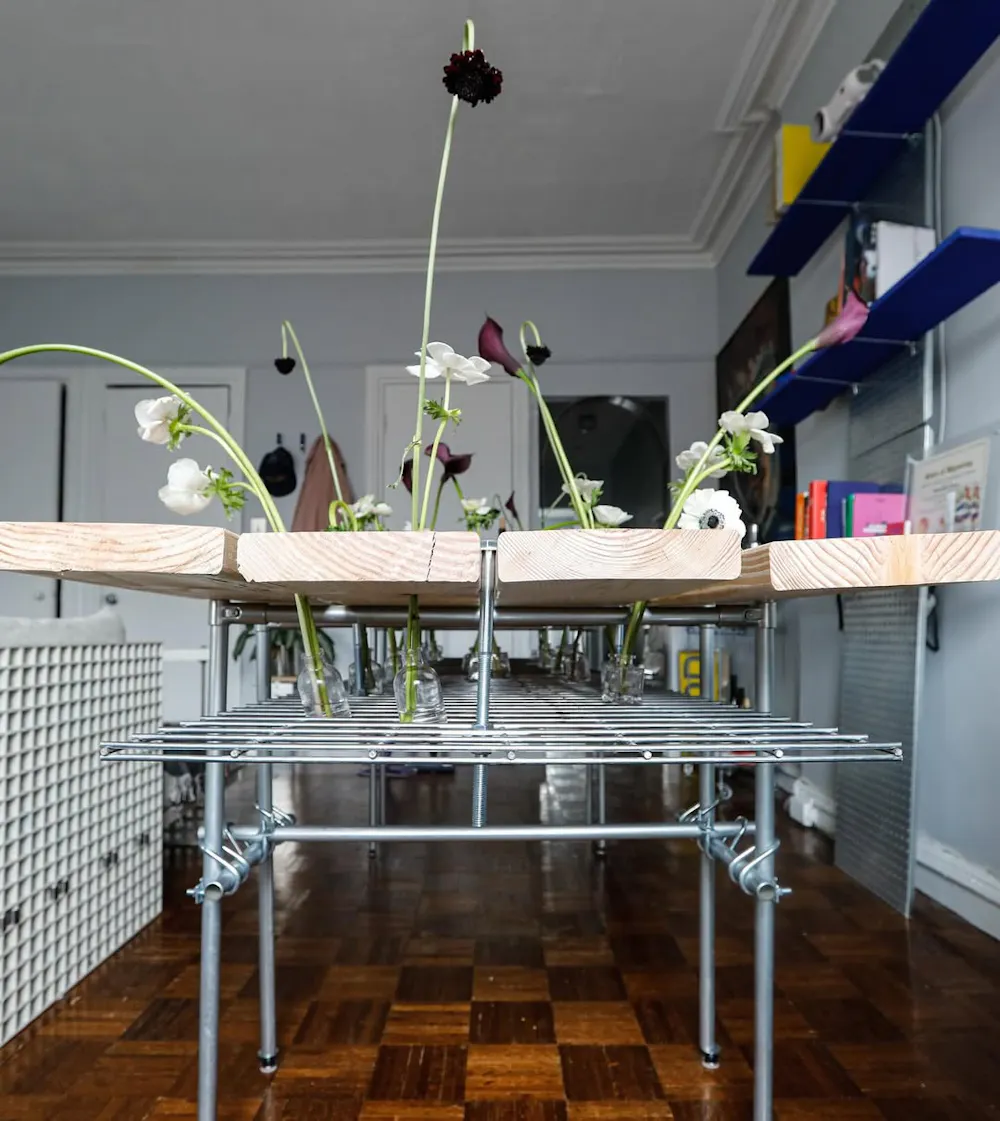

"The Dinner Table derived from a desire to host a dinner party, but with no space to hold a large table permanently. This design challenge prompted a table made from common materials and simple connections — something easy to assemble with off the shelf hardware parts.
•
The form takes inspiration from picnic tables, but with a desire to take its connection to the outdoors a bit further. Calibrated gaps in the tabletop allow stems to snake through, creating a seamless integration of florals on the tablescape. The wire deck below provides a second surface, a built in back of house zone to host a field of flower vases - physically and visually removed from the table surface. Combined, the florals and the table create an indistinguishable object."

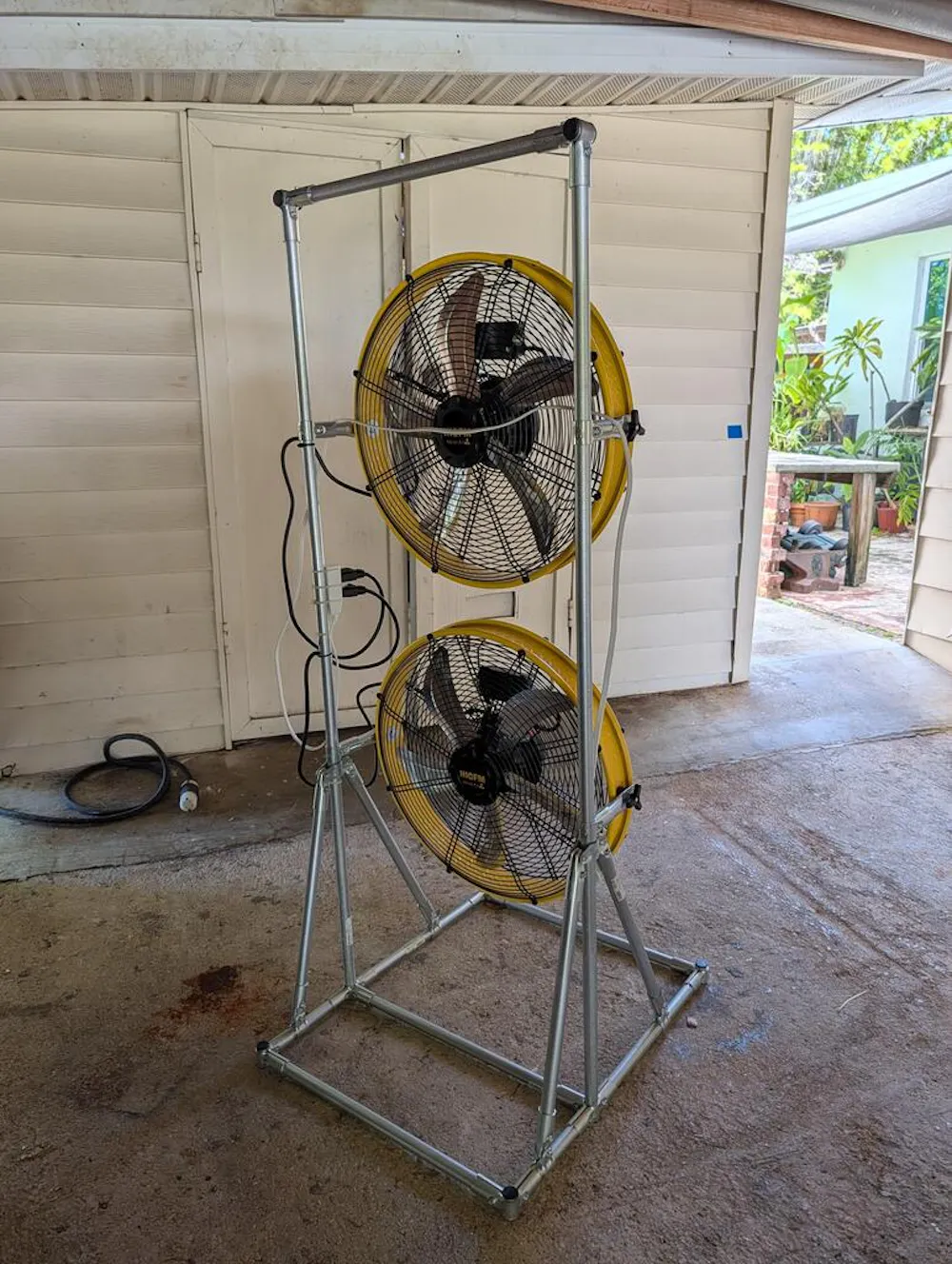

Check out this custom fan stand that C put together to help with dust control!

"I am happy that I found this web site. The maker pipe was easy to use and assemble. I did have some questions when I started my build. The emails were returned quick and the information helpful." - C

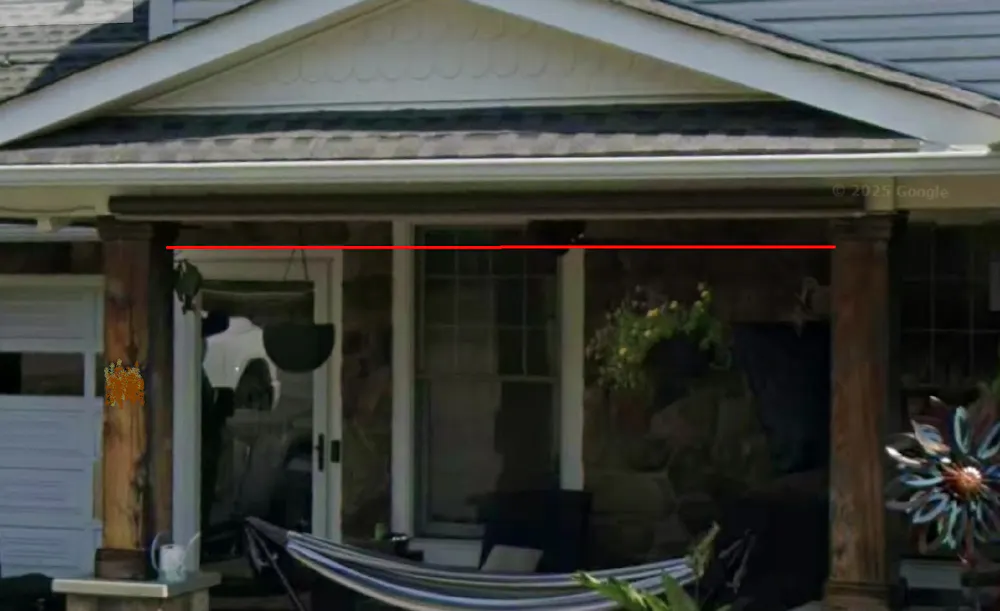

We love to sit on our front porch but it gets chilly in the fall evenings. I have an infrared electric outdoor heater I want to use to take the edge off. I'd like to avoid drilling holes in the ceiling so I was thinking about putting a conduit pipe between the support posts as shown in the pic and hang the heater from the pipe (the heater is only 8 lbs).

The posts are just about 11 feet apart so the standard 10' pipes aren't an option. But I saw a video about the structural coupling and was wondering if I could use that to connect two pieces of 5 1/2" pipe to span the patio posts with a flange connector or floor flange adapter/hack.

Would 11' of 3/4" pipe sag? Do you think it would support the 8 pound heater and maybe a potted plant or two hanging from it?

I was thinking that I would use a conduit hanger fitting (upside down) to attach the mounting bracket of the heater.

Thanks all. I appreciate any input

Hi all, I'm working on a design for a new desk out of 3/4" EMT conduit, and looking for some help.

I want it to be light-weight, easy to transport, and easy disassemble / reassemble.

It's meant for standing, and I'm considering how to adapt the design so I can sit in a cross legged position while using it.

The design has two identical shelves: a lower shelf for a keyboard and mouse, and an upper shelf for my laptop.

The shelves are supported by side rails underneath, and the legs go through holes in the corners to prevent lateral movement.

The legs extend a little beyond the shelves so that I can add quick release clamps to prevent upward movement of the shelves.

The problem is I haven't found suitable quick release clamp-style shaft collars to prevent upward movement of the shelves yet.

I found these shaft collars for EMT conduit:
https://shootingtargets7.com/products/emt-conduit-shaft-collars

But the problem is they use a 10-24 x 1/2" socket head cap screw, and I can't find a quick release lever to go with that.

There's these shaft collars on Amazon:
https://www.amazon.com/Shaft-Collar-Aluminum-Thickness-Screws/dp/B0BNZ9MWLN/ref=mp_s_a_1_15_maf_2?th=1

Which use an M5 bolt, and I can find M5 quick release levers:
https://www.amazon.com/CAMVATE-Release-Locking-Silver-Stainless/dp/B0CLC8VHDT/ref=mp_s_a_1_19?th=1

But they have a bore diameter of 22mm or 25mm which I think won't work for the 23.4mm outer diameter of 3/4" EMT conduit.

Can anyone help or have alternative ideas?

I wanted to avoid drilling or using any fasteners on the wood for ease of assembly and transport.

Just wanted to share this very simple project.

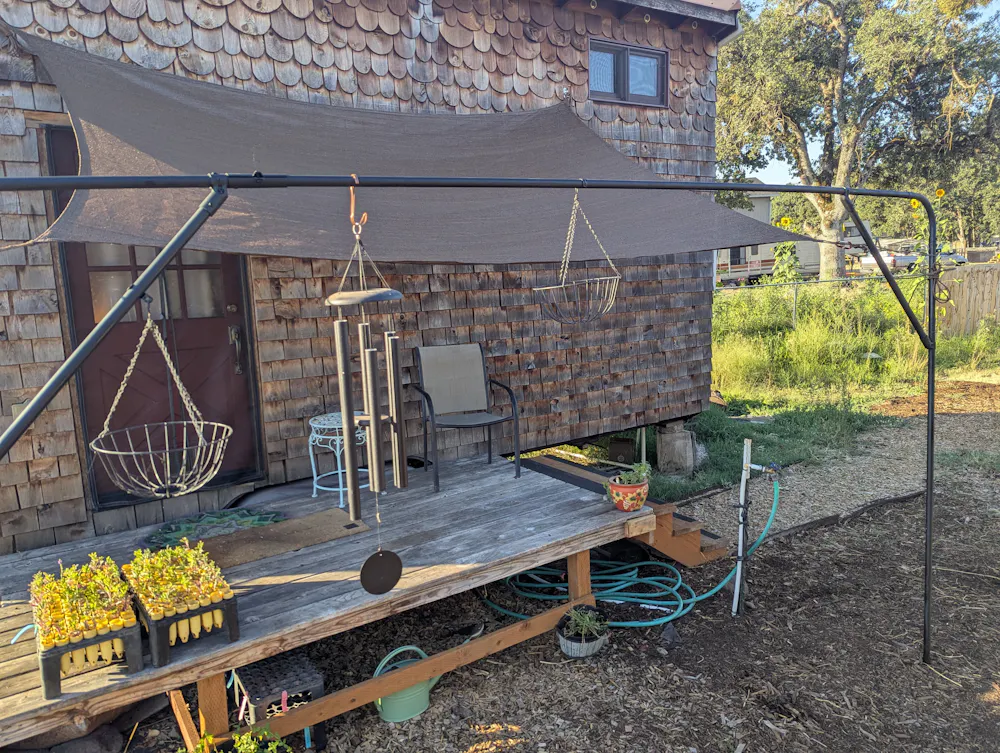

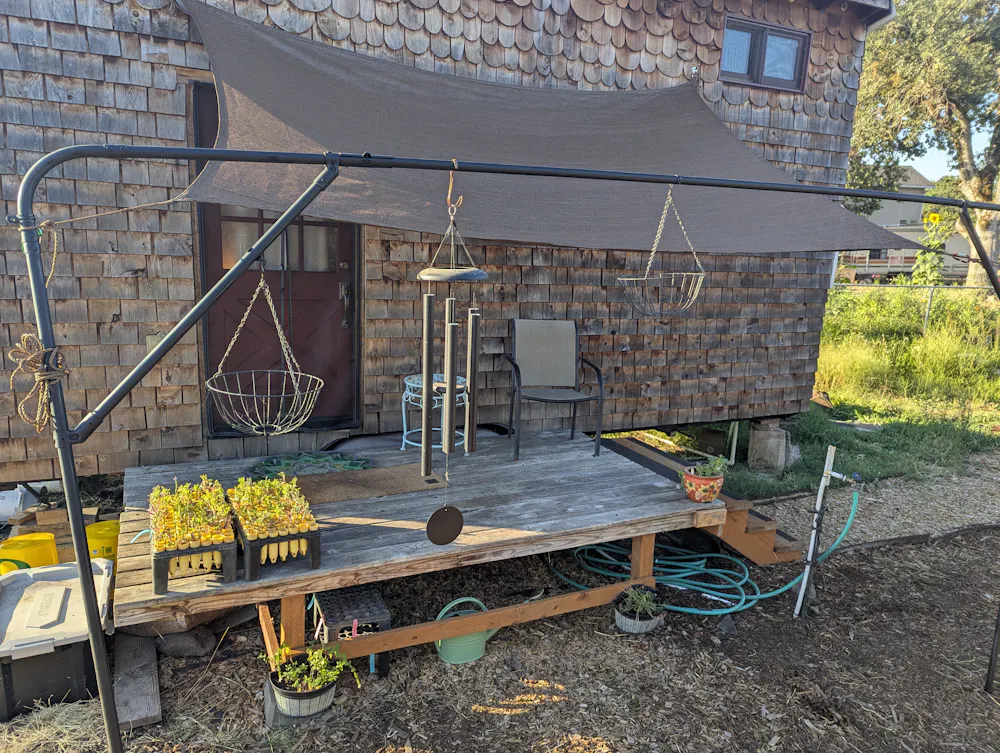

I needed a lightweight structure to support a shade sail for my tiny house deck. I wanted an arch for aesthetic reasons, and resisted attaching pipe to the house (don't want to cut through those lovely shingles more than necessary). I thought I would see how minimalist I could go while maintaining safety.

I used 1" conduit, some store-bought connectors (1" to 1" and corners) and Maker Pipe connectors (the more secure 1" to 1" for the horizontal length of the arch, as well as the 45 degree connectors). When building the arch on the ground, I used metal screws in the storebought connectors to pierce the pipe and make the connection more secure. We do get some high wind gusts (50 mph or so) and I was a little worried about this thing coming apart.

To mount the arch vertically, I pounded 4' rebar sticks into the ground 2' deep. We have heavy clay soil so it holds the rebar securely. I don't think this would work in sandy or loose soil.

The protruding 2' of rebar I covered in 3/4" PVC to form a sleeve for the 1" conduit. I have to admit I asked ChatGPT for this solution and I thought it was quite elegant. It took two people to lift the arch onto the rebar/PVC "stubs".

Once in the air, the arch was a little wobblier than I expected. I attached the shade sail (2 sides to the arch, 2 sides to the studs in the walls of the tiny house) and kept an eye on it for the first few windy days. I think the flexibility of the structure is actually to its advantage. It bends and sways with the wind. It's actually quite beautiful to watch!

Once I was satisfied that it would last (2 months of summer thunderstorm trials) I took it back down and spray painted it black. Now it really looks classy.

Thanks Makerpipe! This was my first project and I believe there will be more.

"Very impressed with these fittings. Easy to use and holds conduit very securely. Will definitely be using again." - George

Another great build from the Maker Pipe Facebook Group!

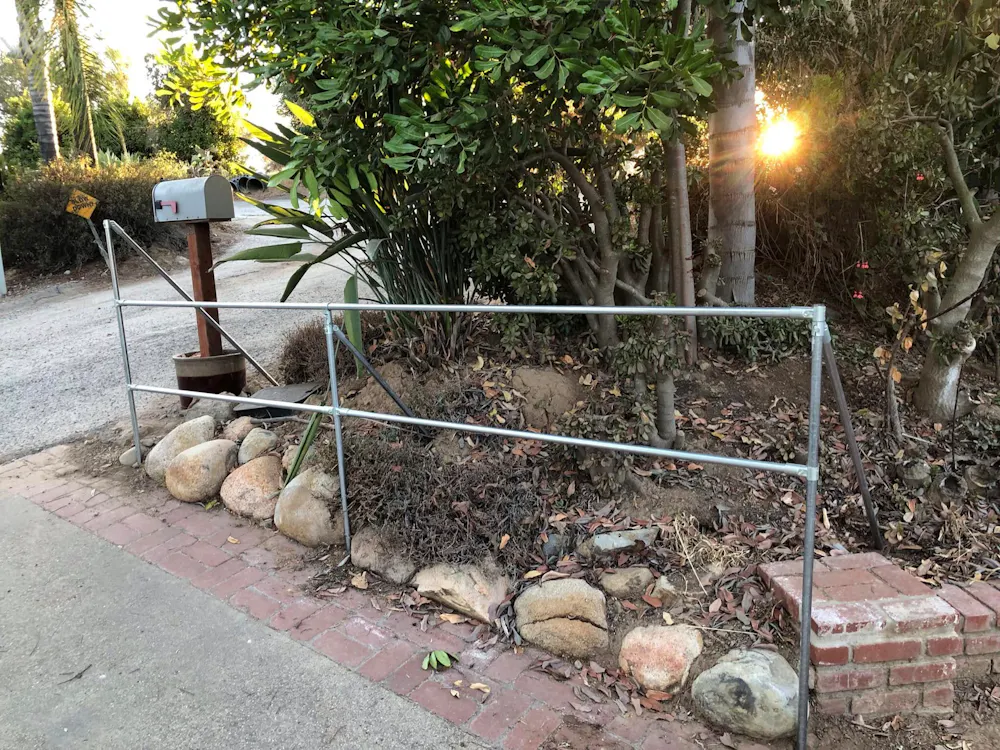

"Here’s my first project, a hand rail at my moms house. I’ll be buying more connectors." -- Robert

"I just finished my wife's sun porch your hardware made it so simple and looks really nice. Thank you for your products. They worked perfectly." - Christopher

Check out this awning that Aaron put together!

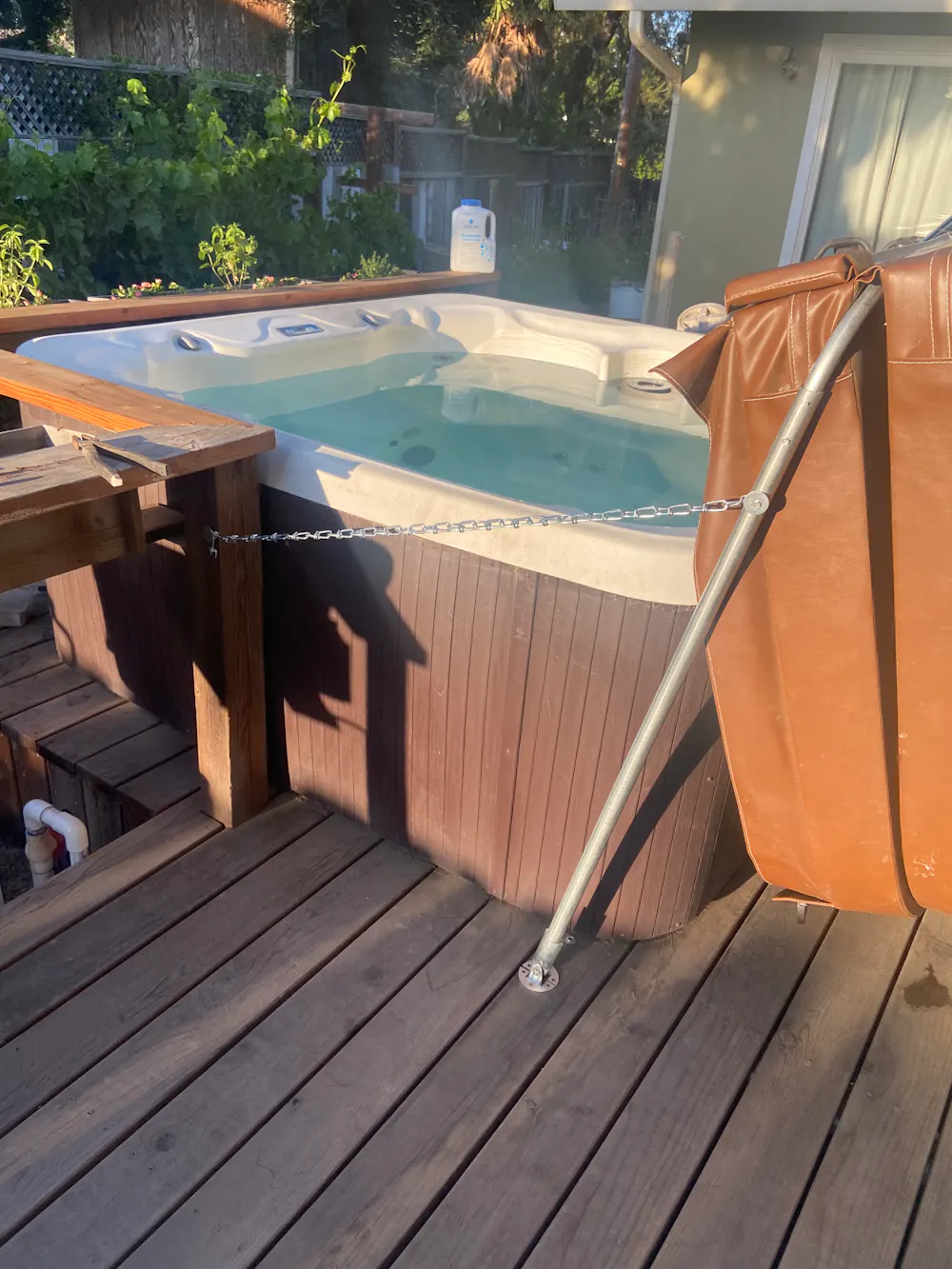

Here's a great build idea from David!

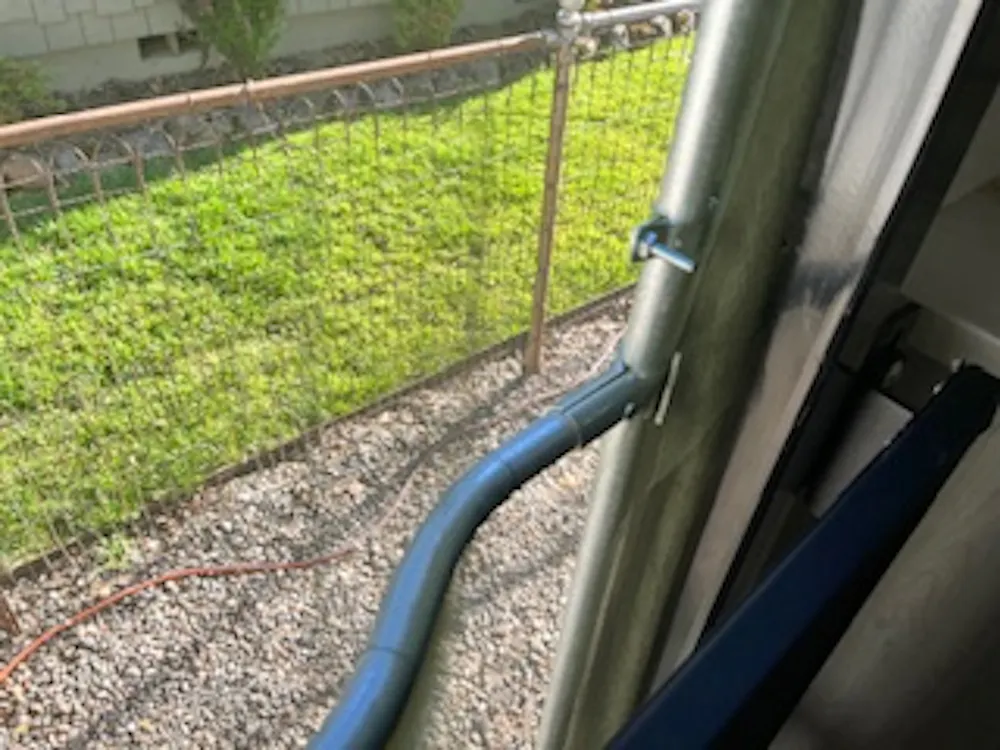

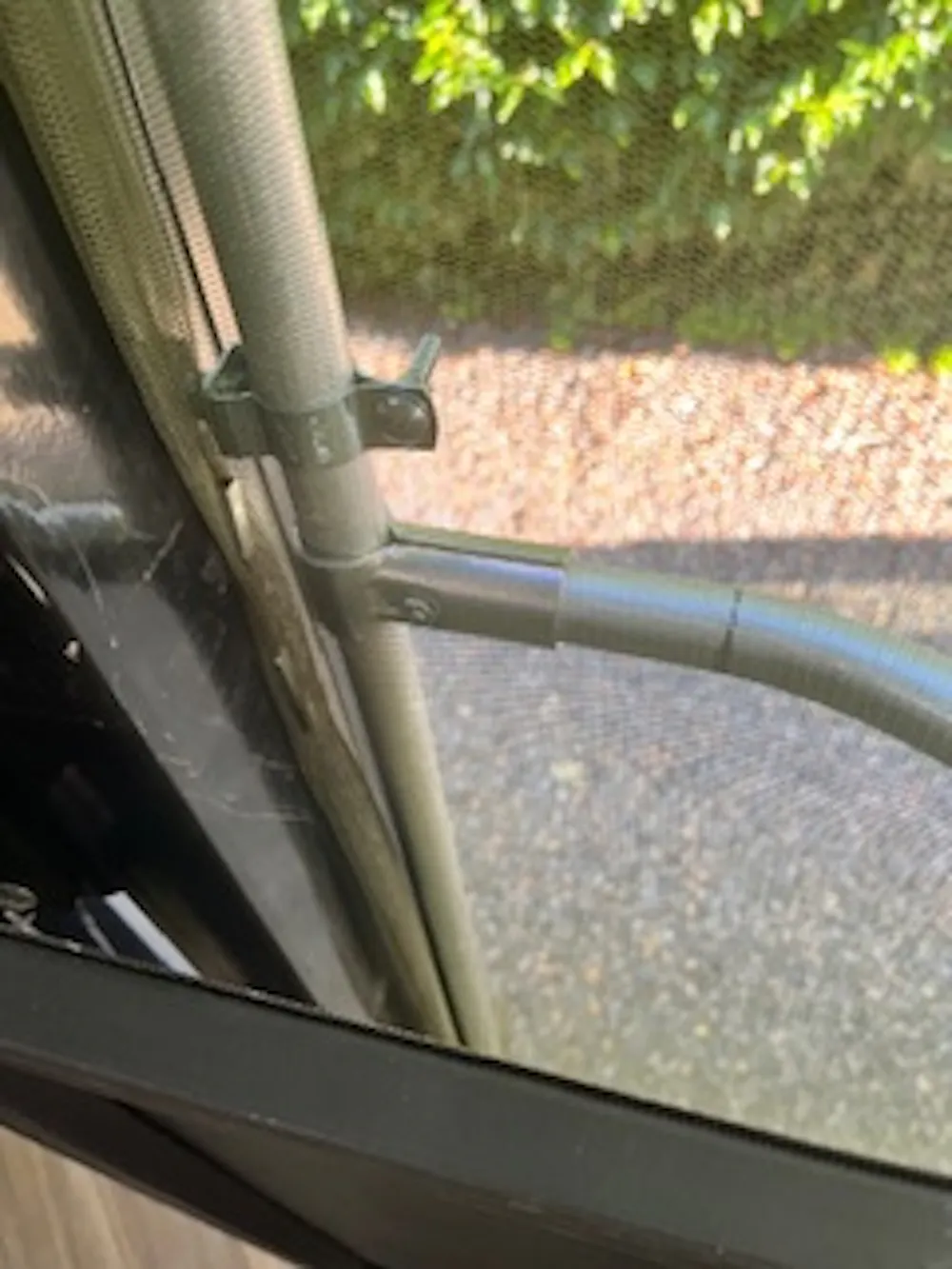

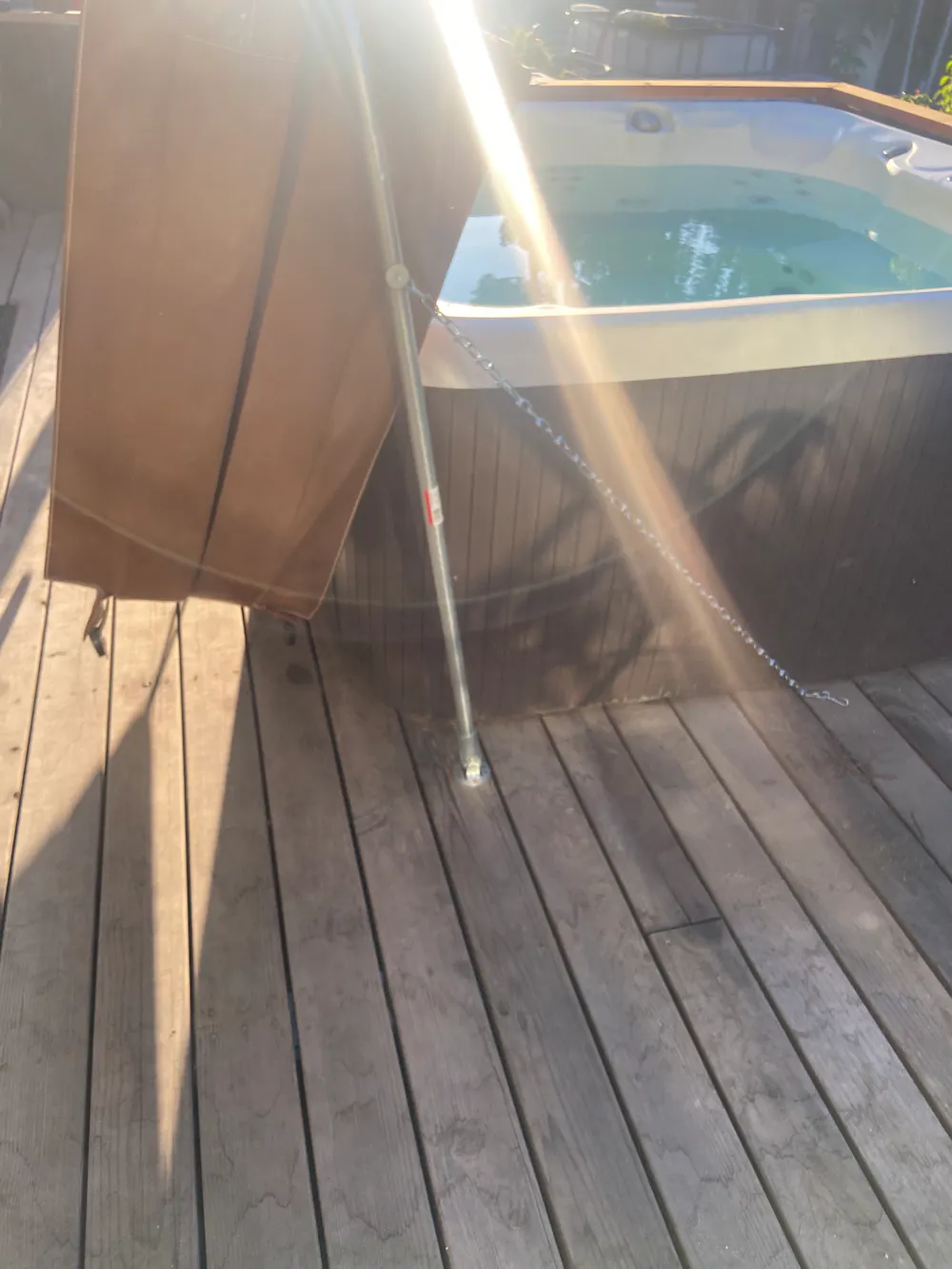

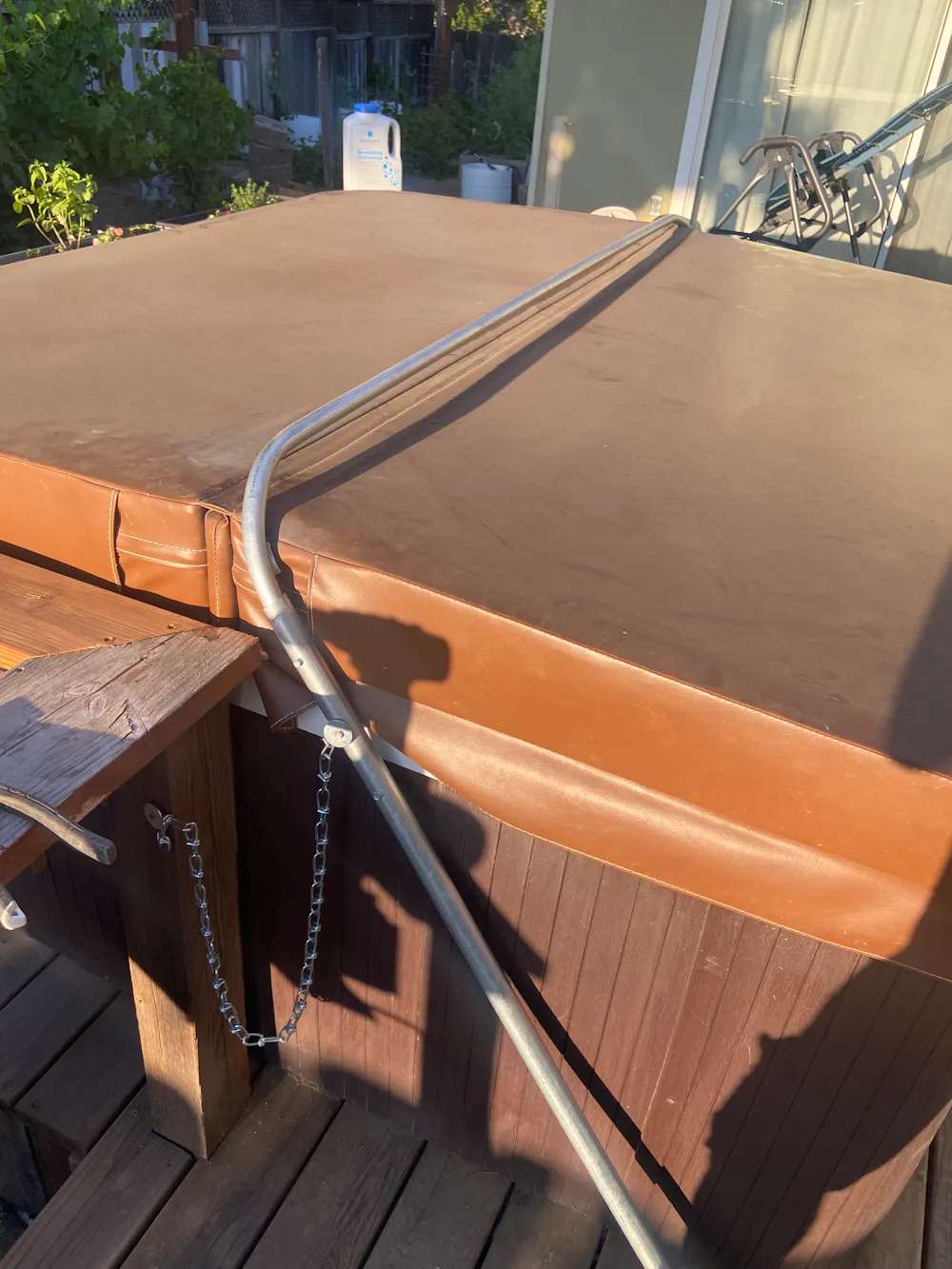

"3/4” bent over the top

Slide into 1”

Hinged at deck

Chain to deck for stop

Self tappers to hold 3/4” inside 1”

I’ll paint someday"

"Made this in about six hours. I love these fittings, just what I needed." - Jwow

"The amount of things I've been able to build because of these connectors is SO COOL! LOVE these parts!" - S

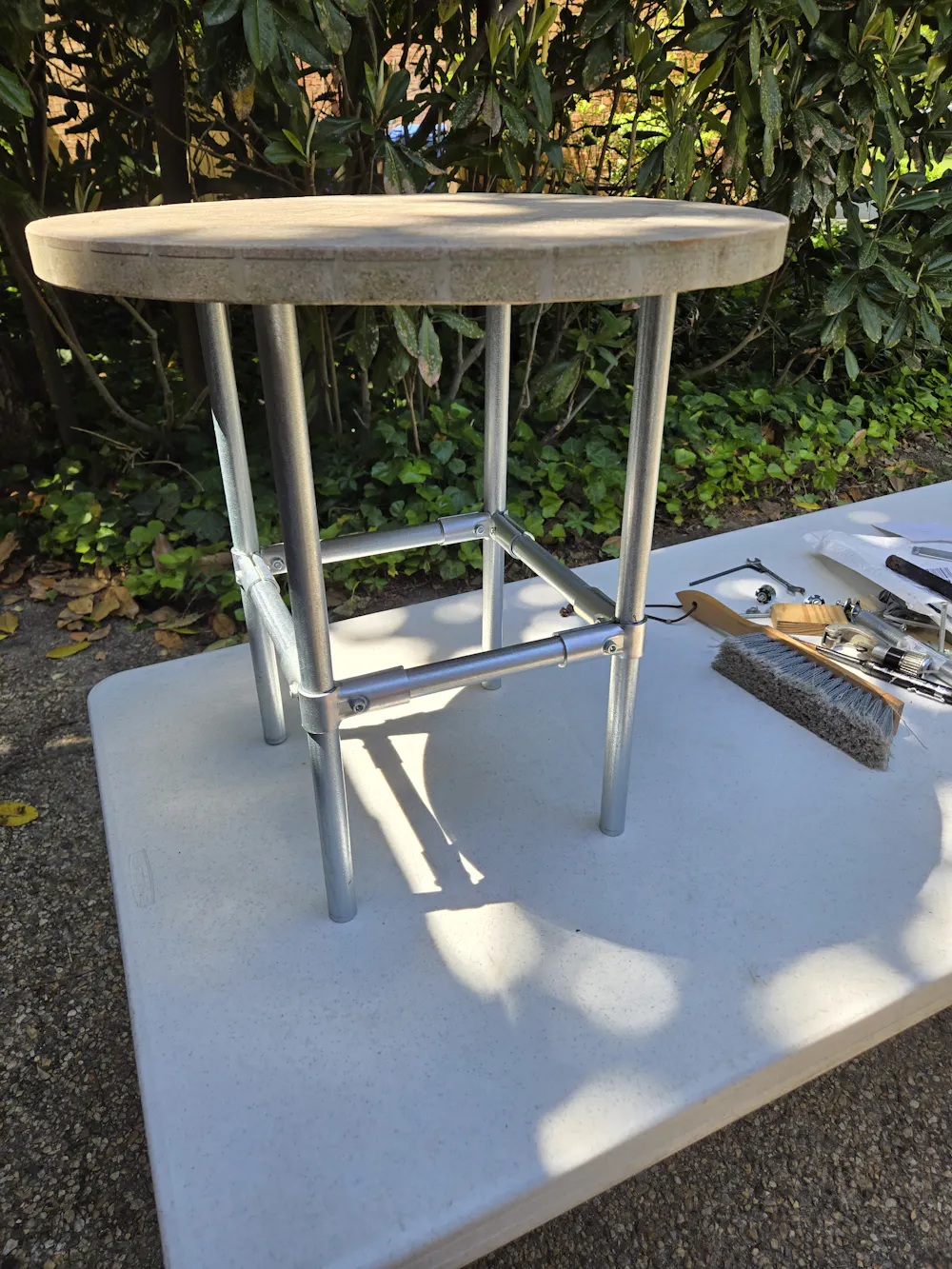

"My 91 year old mother ask me to repair a small outdoor table with metal legs that had rusted away.  After removing the rusted legs and replacing the imbedded brad hole tee nuts, I was able to construct a new set of legs using Maker Pipe components. Following your u-tube instruction I will clean and paint the legs. It was a fun project for a great woman." - Harry

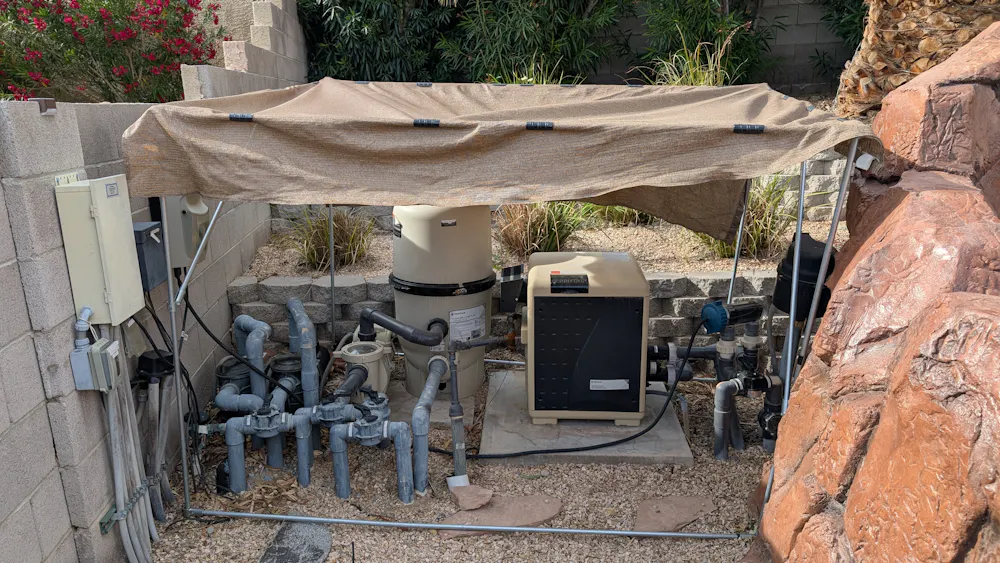

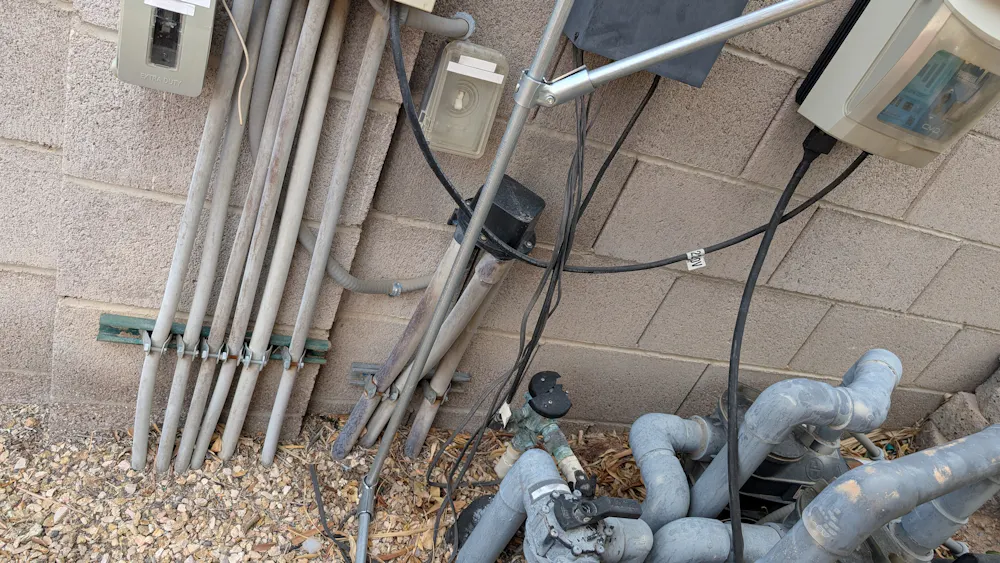

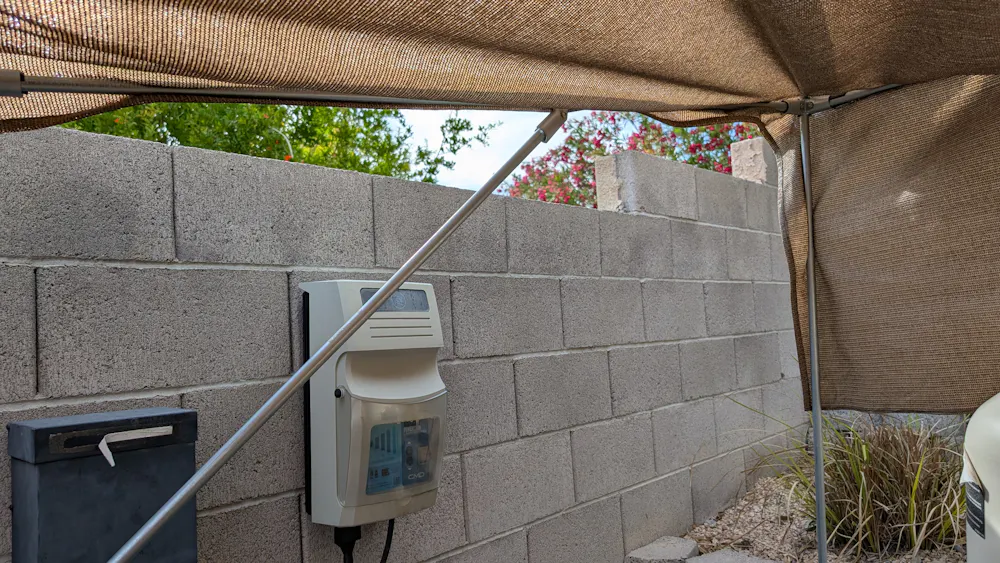

Check out Ben's pool pump cover!

"Thanks for reaching out. I don't remember how I found out about your company but I am glad that I did. Your product is well made and was exactly what I needed. My project was really simple. I needed to keep my 5 dachshunds out of a sitting area in my patio. Thanks again, I'm sure that I will be a repeat customer." - Jerry

Bill recently shared this photo of his wind spinner that sheared off on the bottom. He repaired it with a Maker Pipe Coupling!

Beautiful project from John!

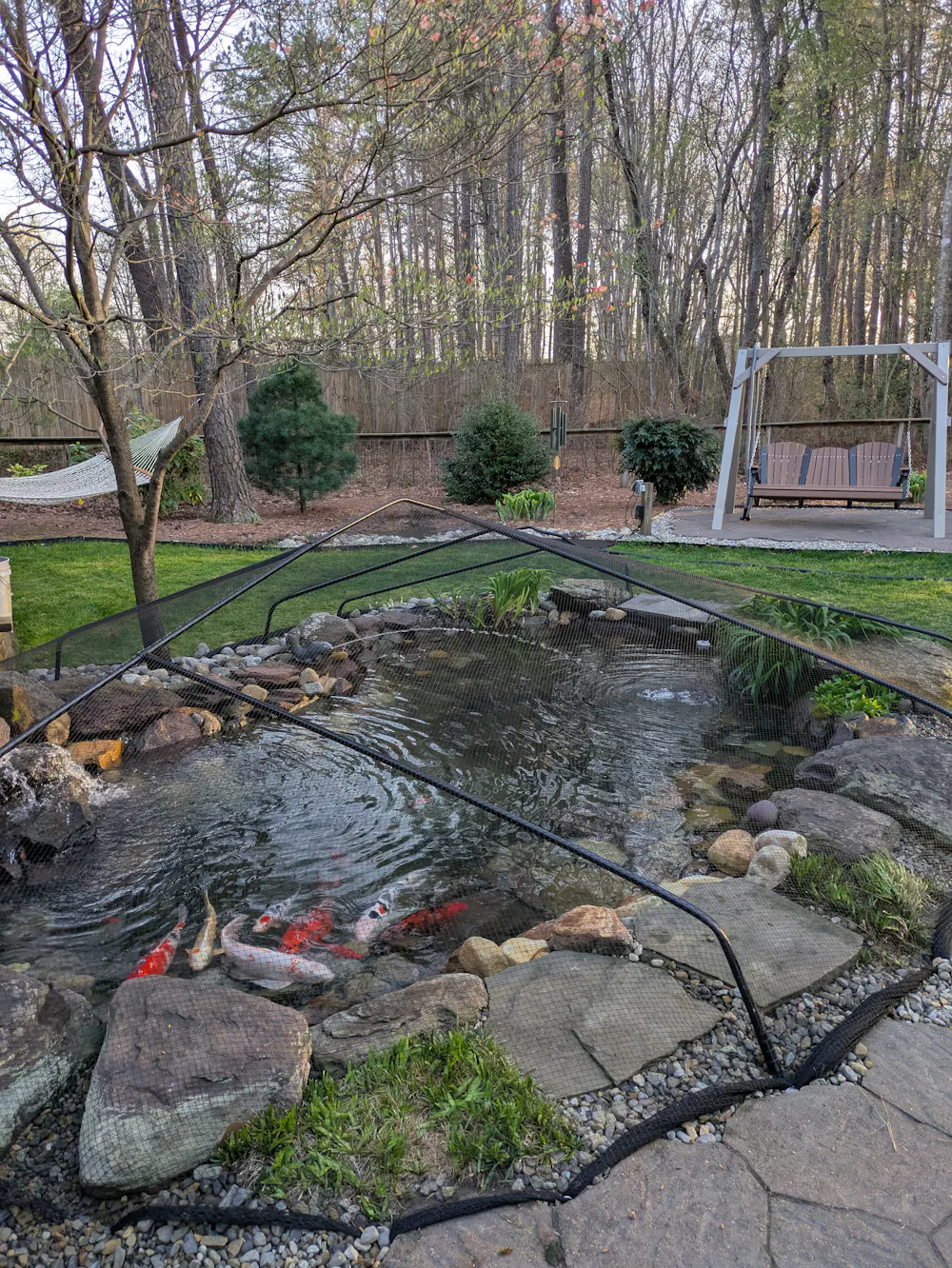

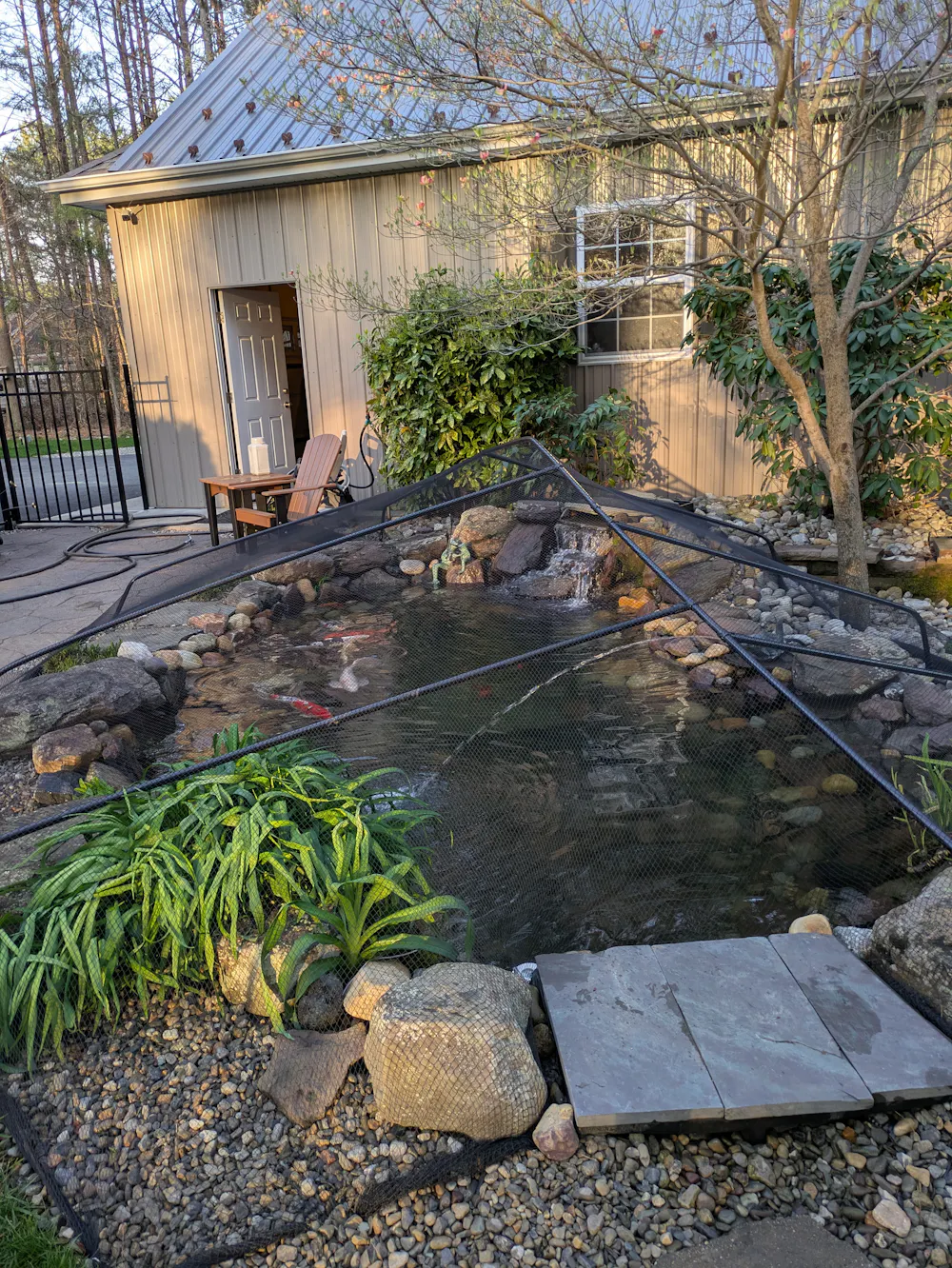

"This is the fish pond cover I built using ¾” EMC conduit and your connectors and tools. The legs of the frame fit inside 1” conduit driven into the ground. I bent the legs so they would come up and over the plants, then over to the main spine that runs the length of the pond and maintains the angle. The angle is necessary because in the winter we will cover the frame with plastic and the angles keep snow and rain from ponding on the plastic. I used your T connectors and pipe cutter which is how I found your company, looking for such a thing. I took it apart and painted it and then installed it. Then put a net over it for the spring/summer/fall. Then I used your Conduit Cover Clips to hold the net to the base of the legs."

"With skepticism I checked out the different connections and got a plan together. I placed my order and received a complete shipment promptly. To my surprise, the connections exceeded my expectations and the project came together with ease. I would highly recommend this product to anyone." - Thomas

"LIKE A KID WITH A NEW TOY" - Robert

Jim is back with another awesome build!

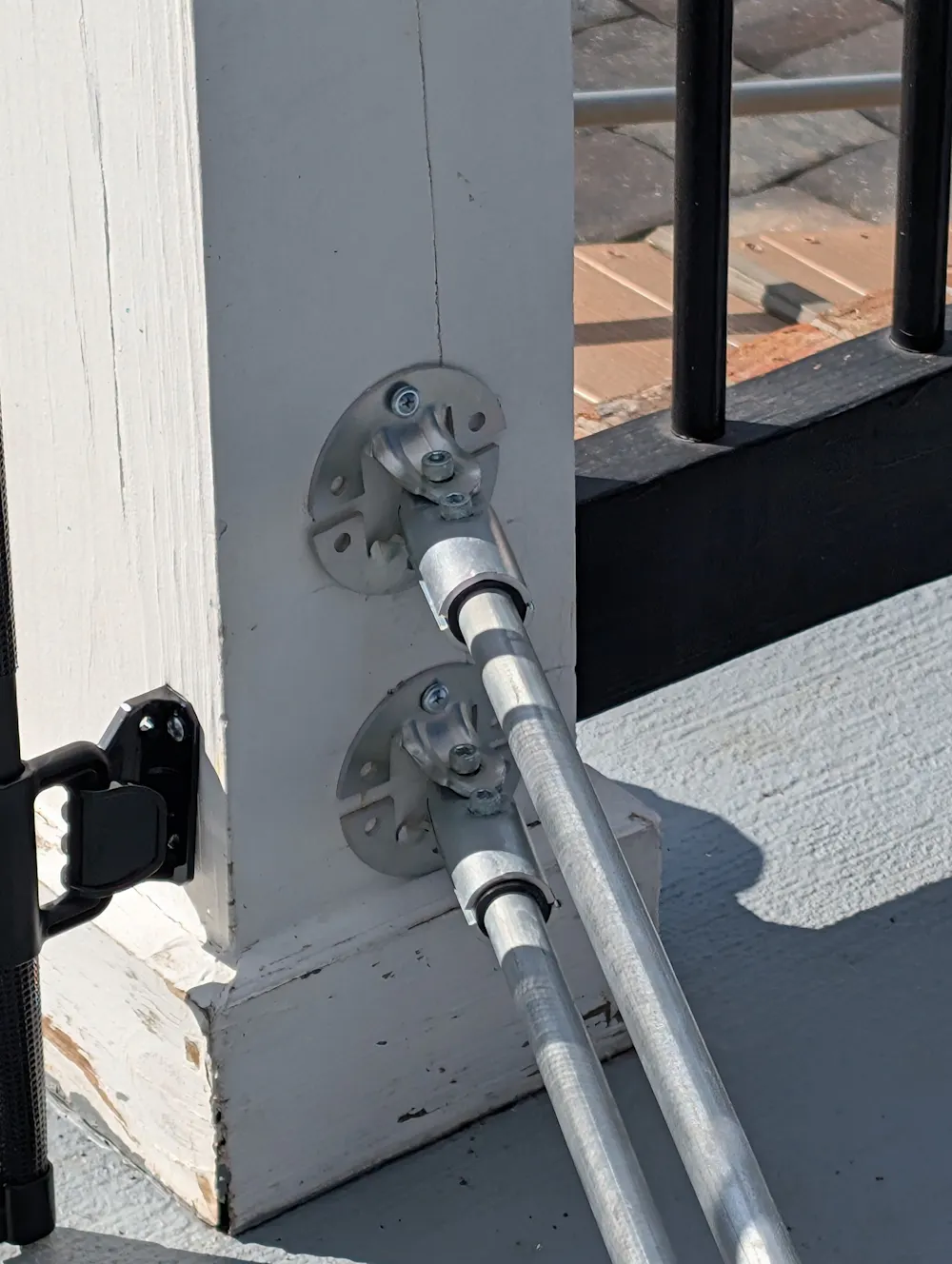

"Adding on to my backyard kitchen with a folding steel table. The half inch conduit fits nicely inside 3/4 inch conduit, making a pin type of hinge"

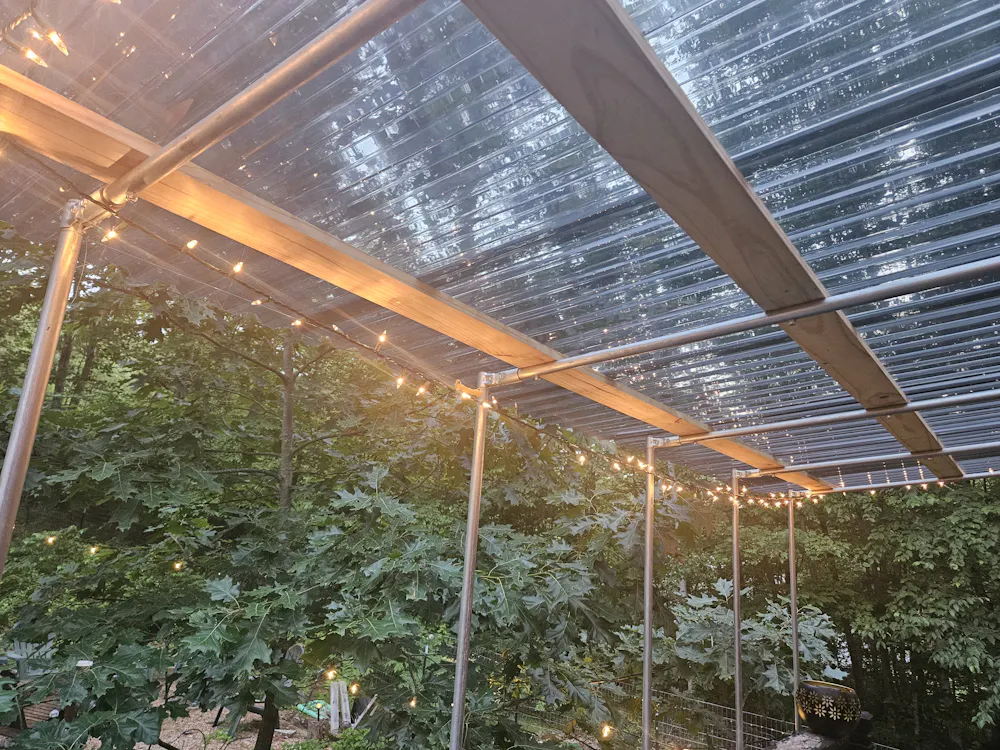

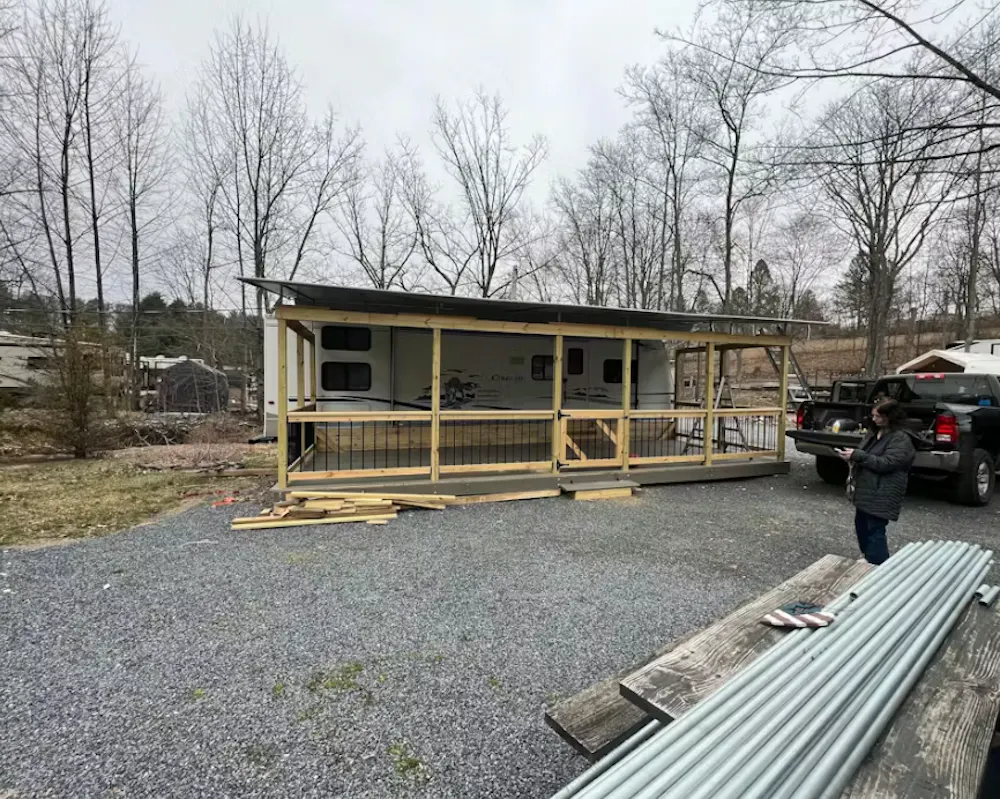

"Great product. Worked perfect you build the roof for my deck I couldn’t have had a better experience!" - Taylor

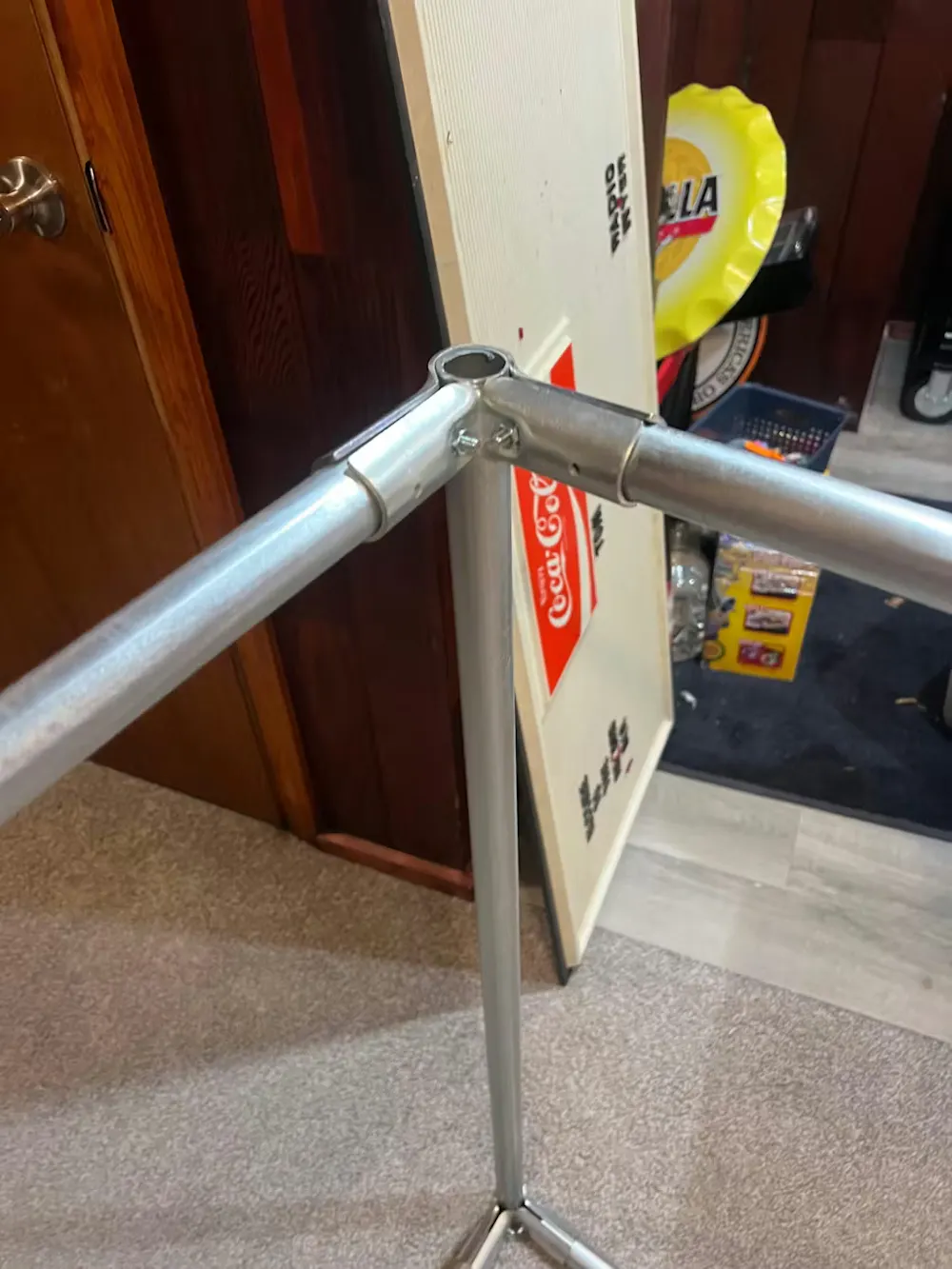

I had an idea and thus far, it works well enough and it was incredibly simple to make, but I'd be interested to here any comments or criticisms about doing this. I cut the 3/4 conduit as close to flush as I could get them and anchored them together in a kind of sled as pictured. Currently, all of the weight hangs from one end but it could be moved to the center of the pieces that run parallel to the i-beams which would help spread the load out more, but that's not necessary at the moment.

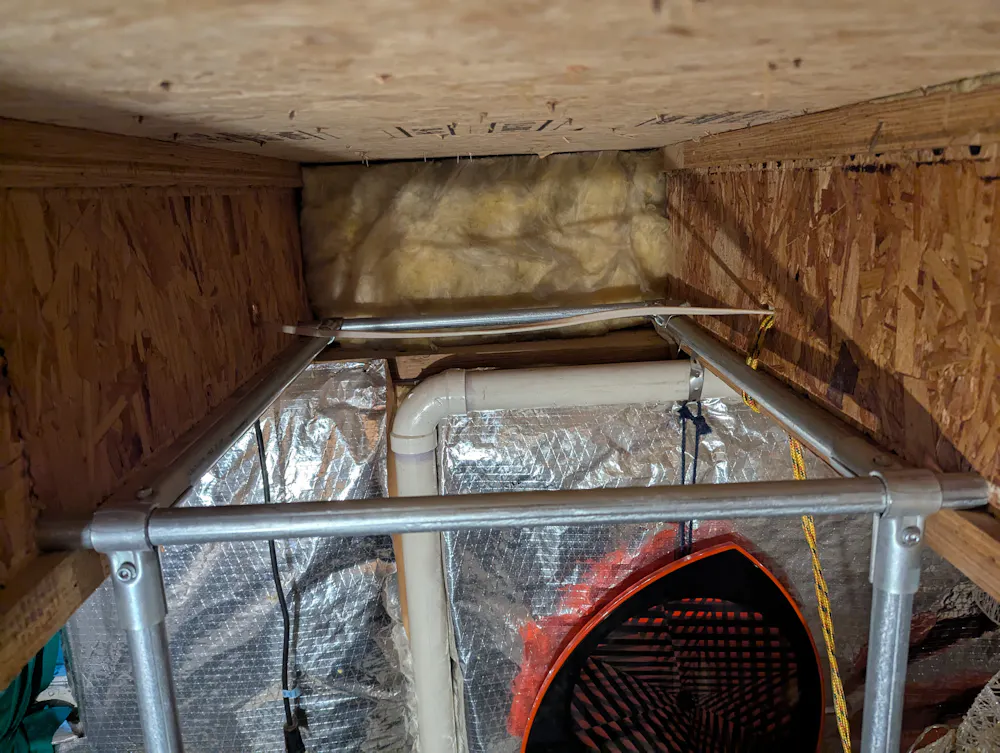

I wanted to suspend this from the I-beams in my unfinished basement to hold a couple workout bench seat pieces when they are not in use. It's a small load (less than 100lbs with everything on it) and I'm fairly certain there's never going to be much lateral force applied unless something falls into it. I'll likely add some horizontal bracing between the adjacent I-beams just to be over cautious.

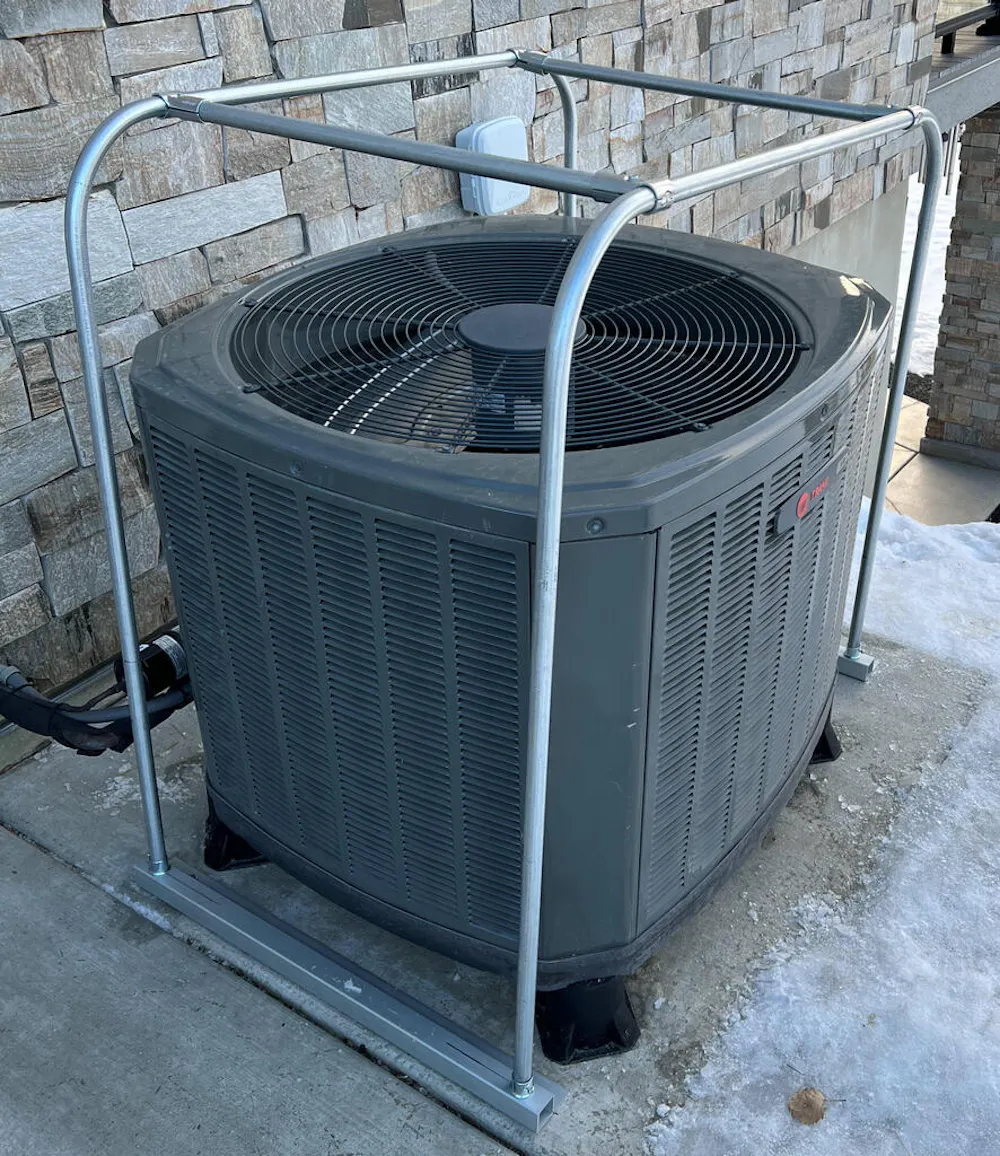

"Needed to create a frame for a central air/heat pump unit. Maker Pipe made it easy, fast, and solid. Well worth the money." - Jim

So I want to make a stand for a mini fridge so it's off the ground. I'm over estimating that at it's heaviest, the fridge will be like 250 pounds.

Trying to decide if I can use 1/2" Conduit for the frame. The box will only be 17"wx17.5"dx11.5"h.

Planning to put plywood directly over the top of the conduit vertically and the fridge on that plywood so the load should be on the conduit vertically.

I'm having a hard time imagining it won't be strong enough, but I do figure I'll ask here anyway just in case someone has data or experience.

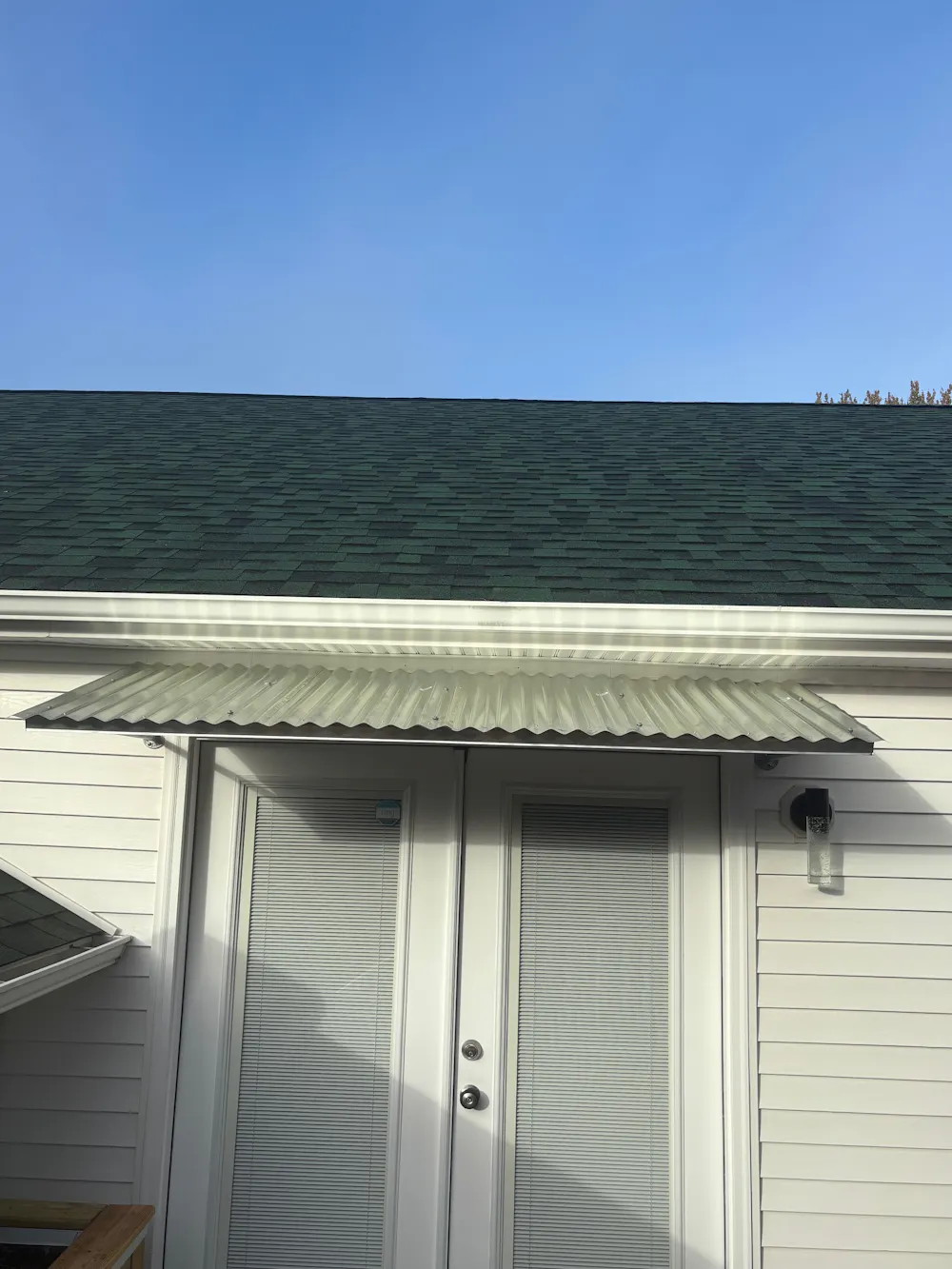

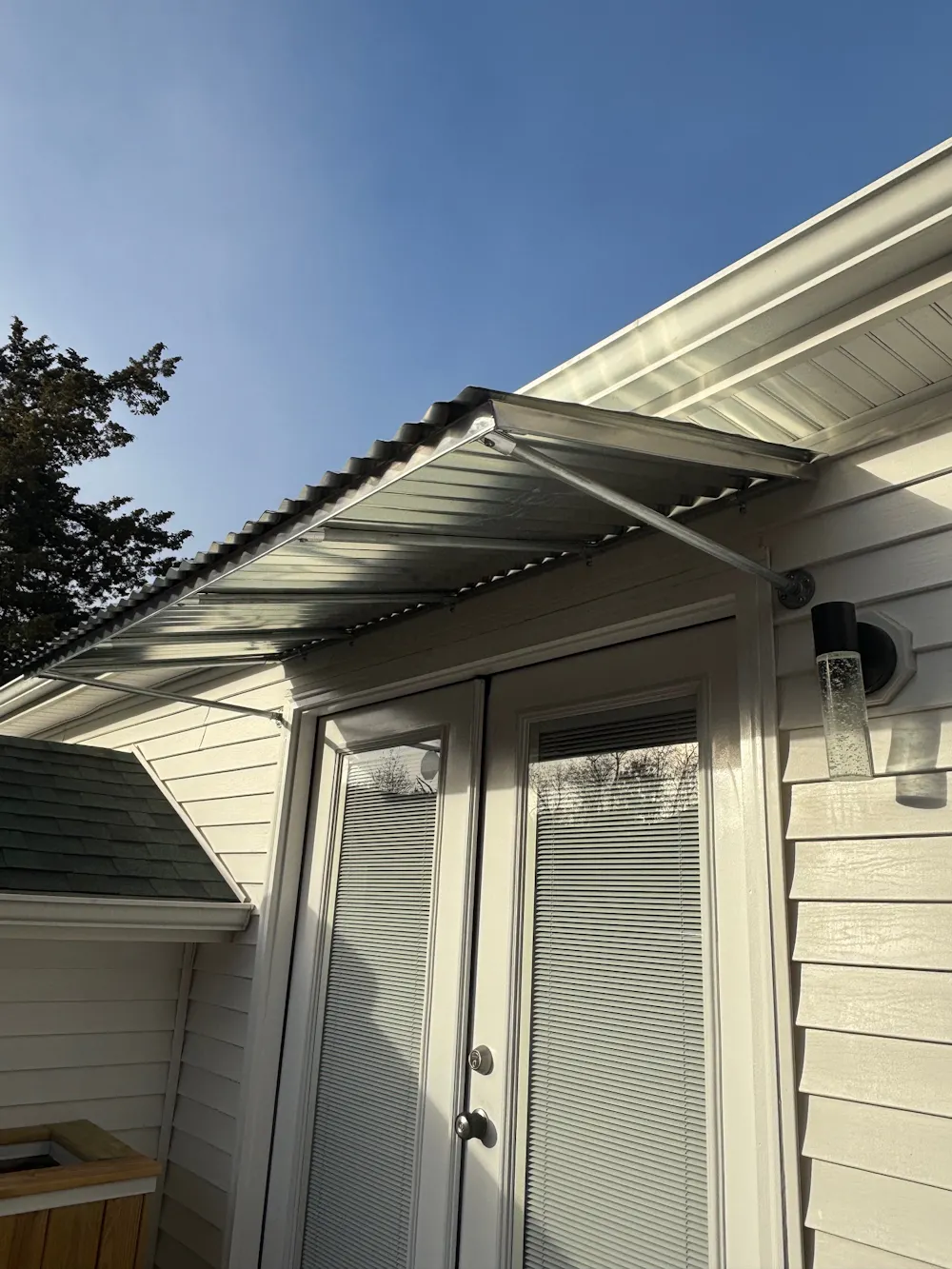

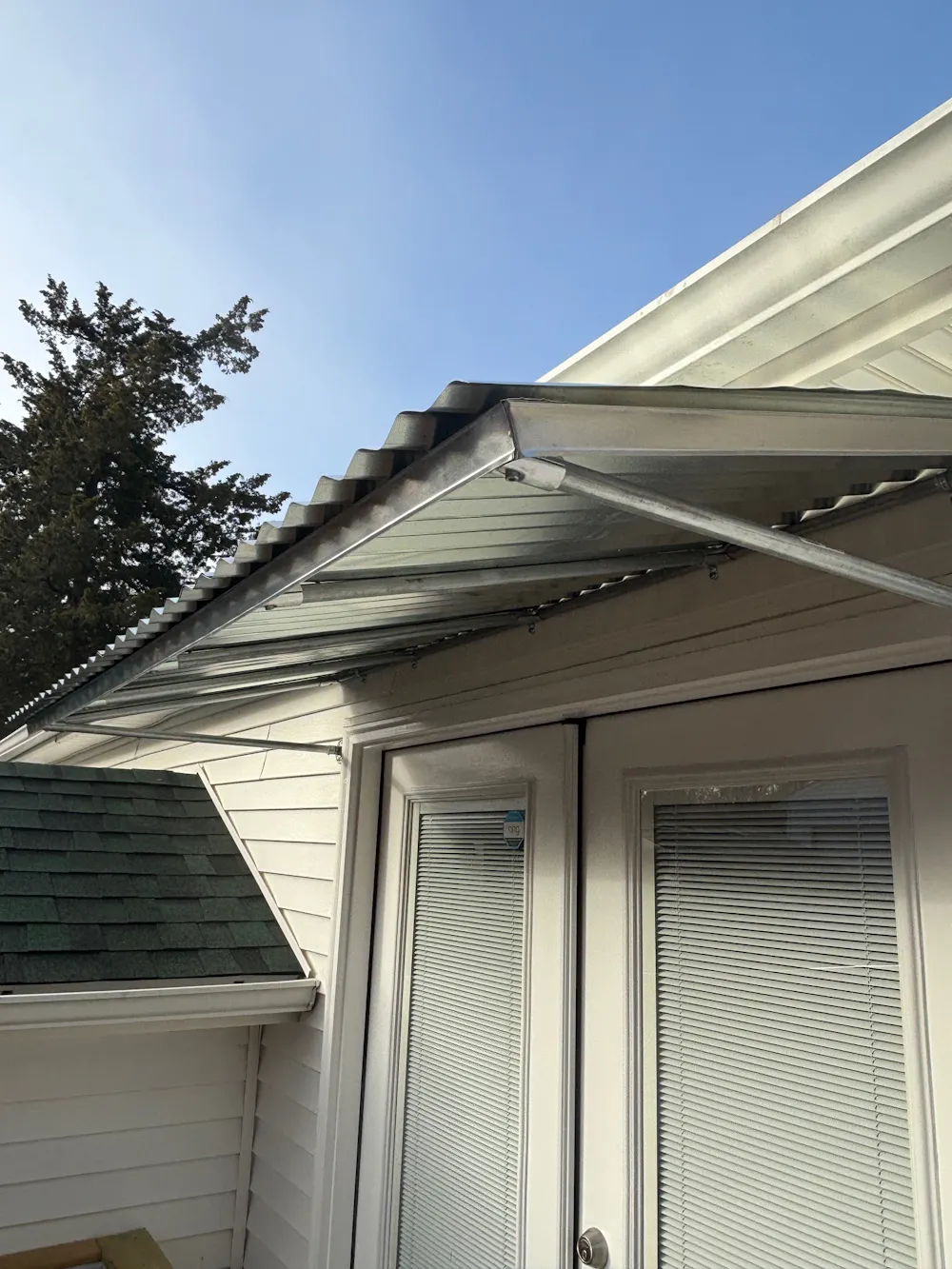

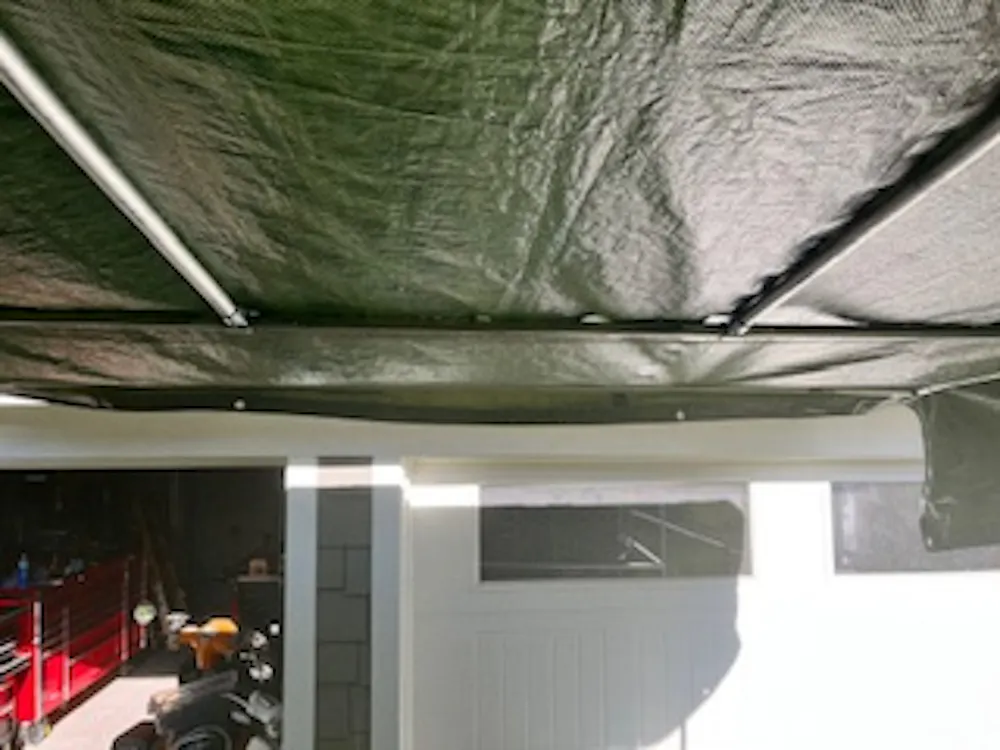

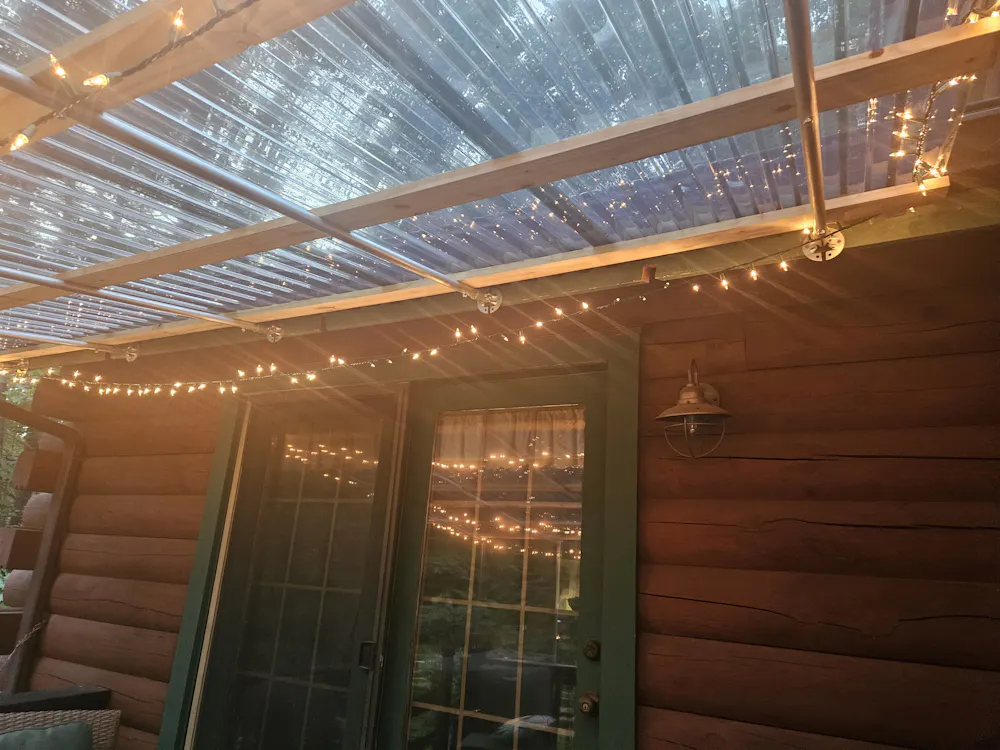

"My build is complete. This is an awning that I built over my back door. Its main purpose is to keep rain from hitting the doors directly, I used the 3/4” straight fittings to connect the pipes together, and at the wall, I used 3/4” galvanized wall plates with regular 3/4” conduit fittings to secure the pipes to them.  I’m very pleased with how well your connectors are constructed. I’m looking forward to building my next awning over my garage entry door and will purchase the connectors from Maker Pipe." - Gary

"Really nice! I've been moving a lot - having furniture that is light, can be disassembled, and packs down well is a priority of mine these days. Made a sit, stand, squat desk that doesn't need any electricity. Hoping to make some storage shelves as a second project." - Nick

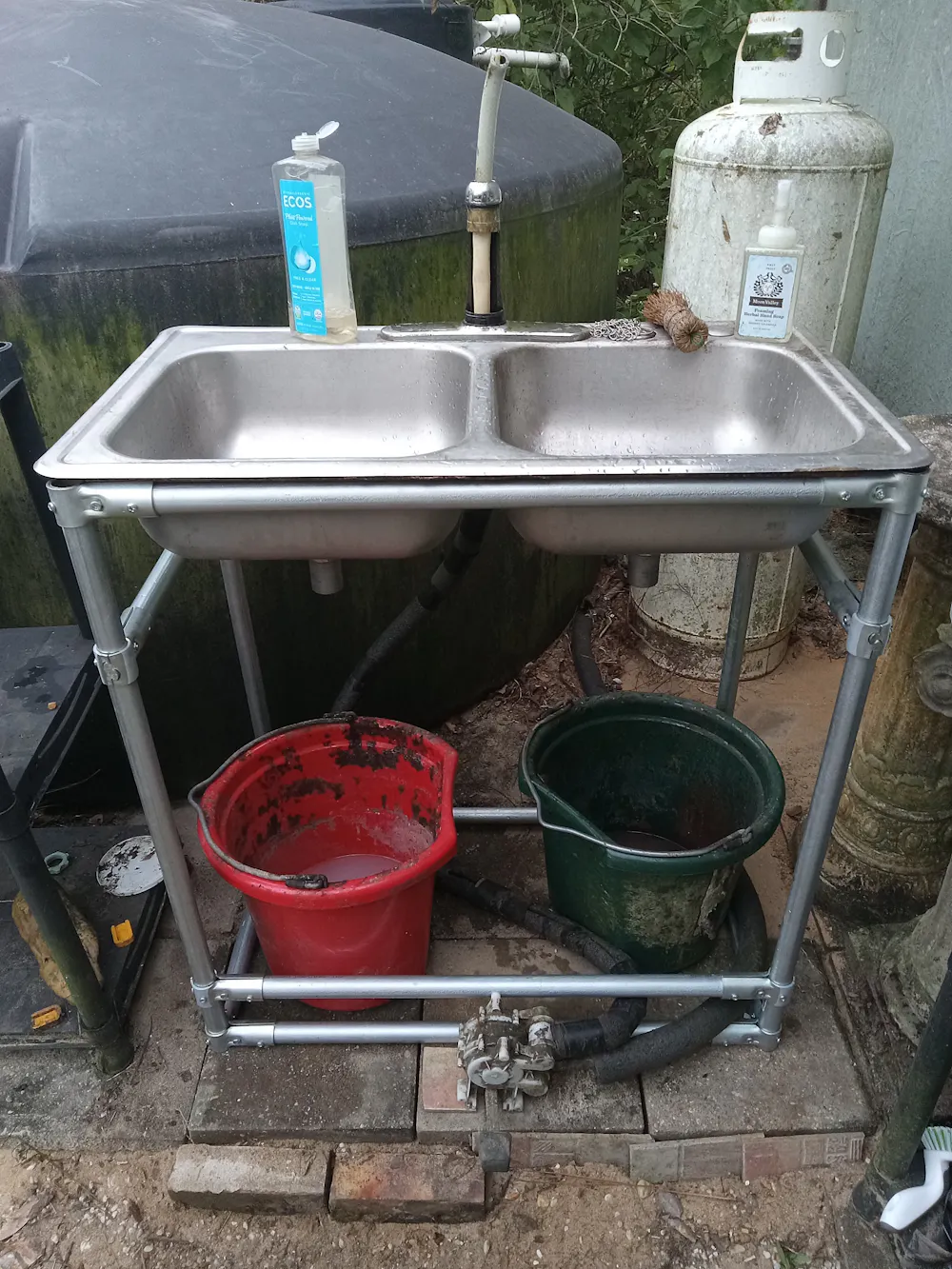

Here's a cool sink build from Wynn!

Awesome build from Tom!

"Everything is working out well with the project.  We will be building another “boot rack’ for our 2nd campus soon. We have actually used the maker pipe for our sun screen /awning project a few months ago and that is holding up well and functioning as planned! "Professional" quotes ranged $10k to $20k. Our total was about $120 for a solution that totally met our needs."

Thanks to Barry for sharing his great firewood rack!

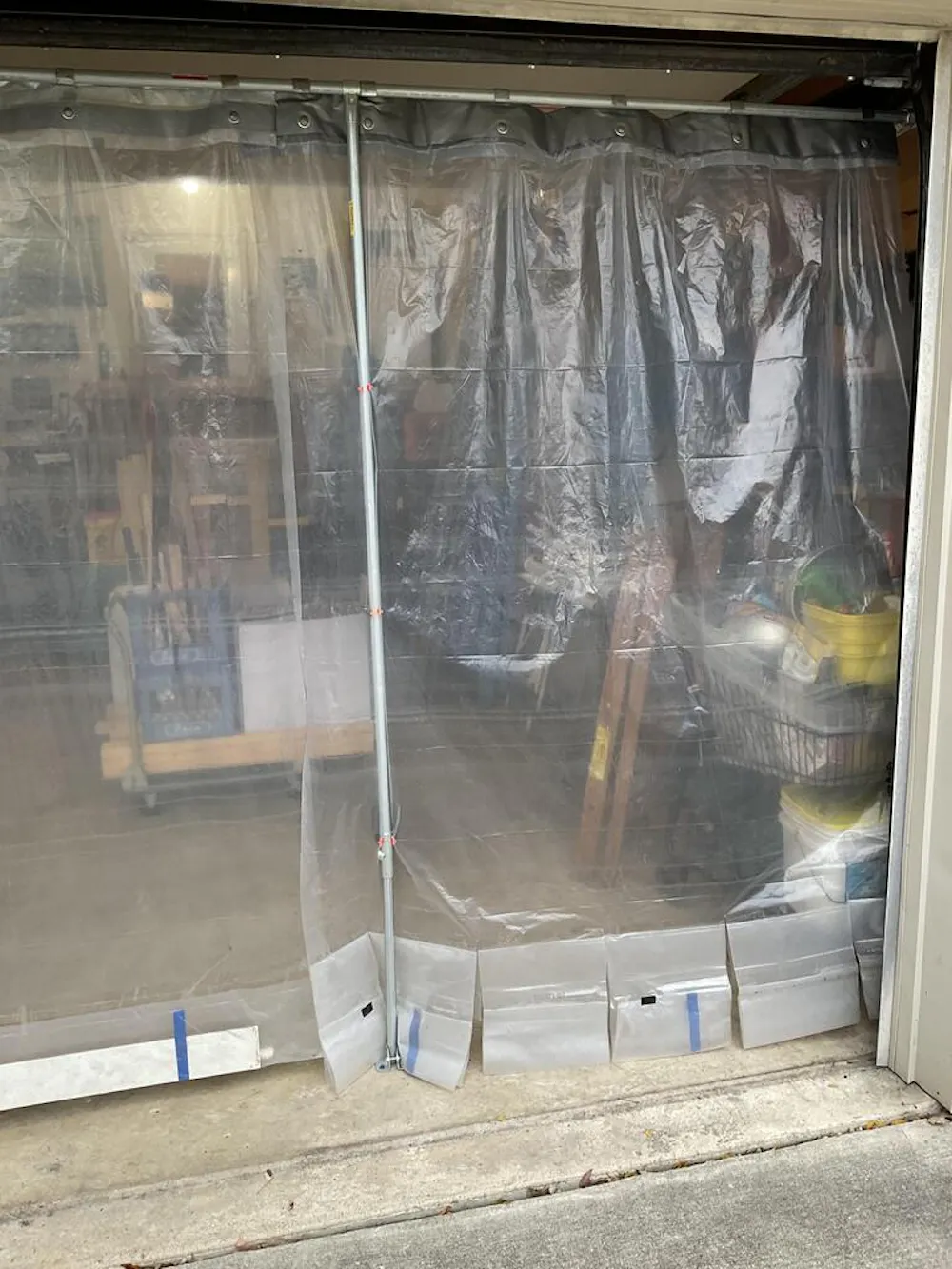

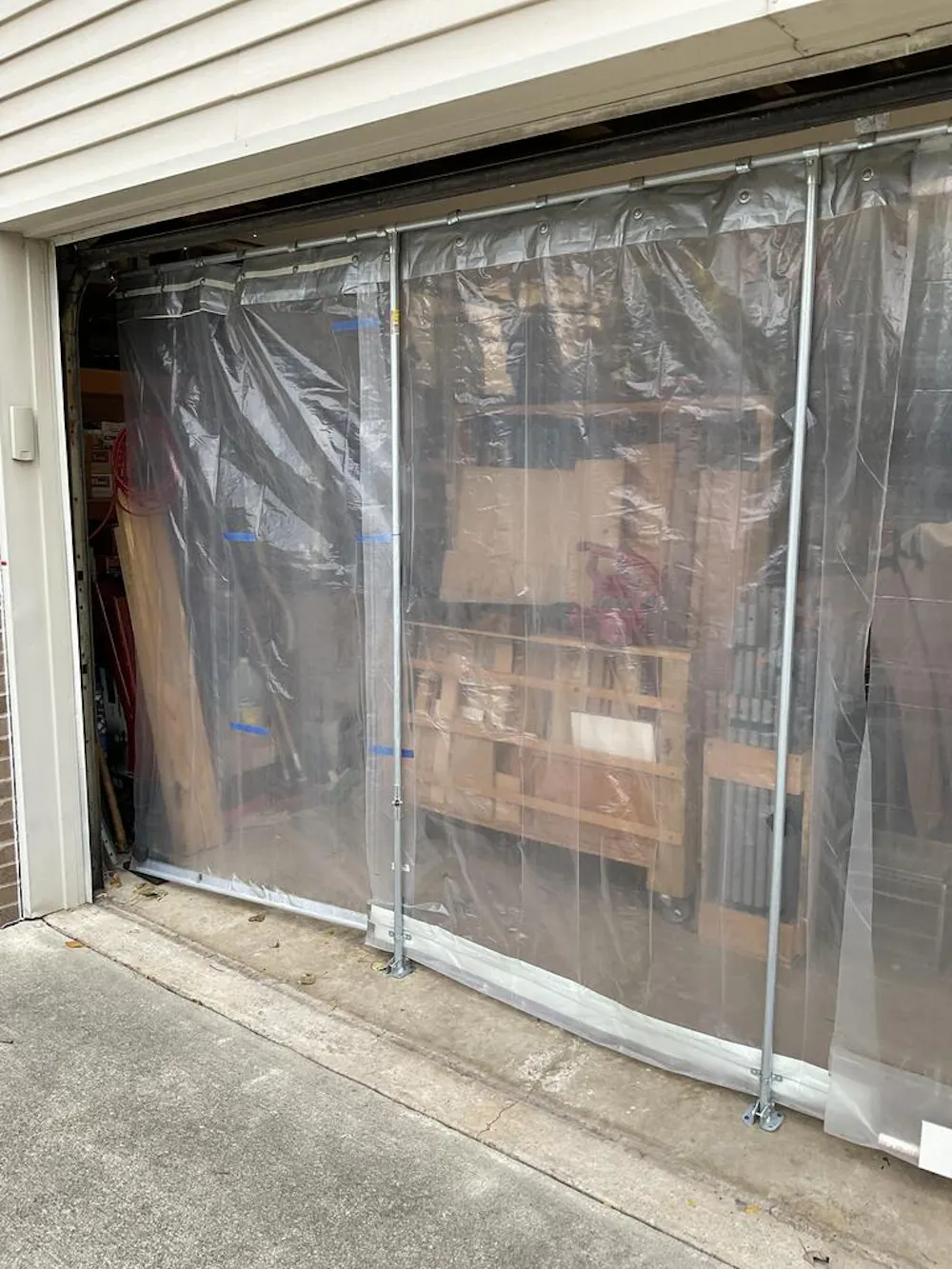

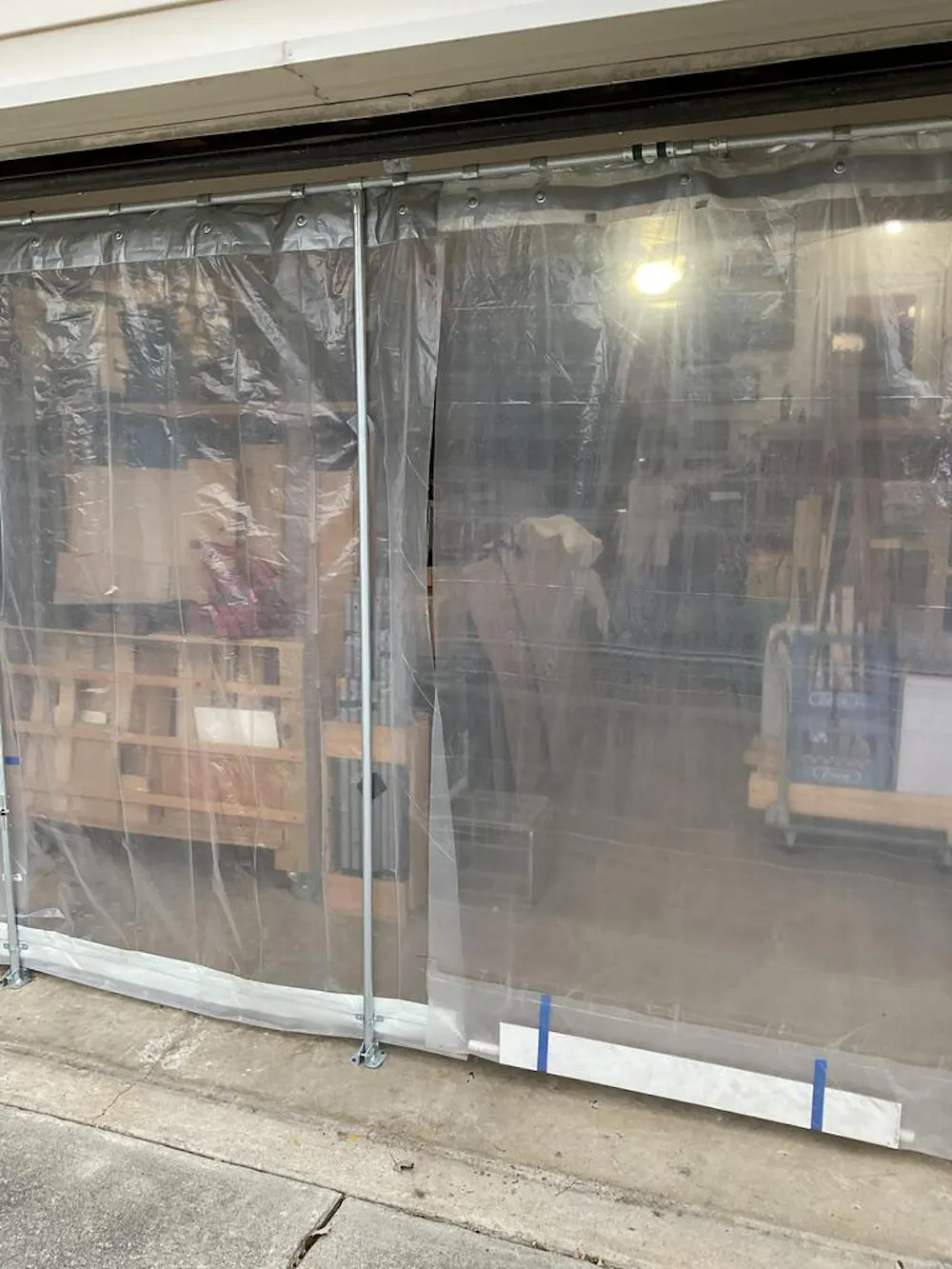

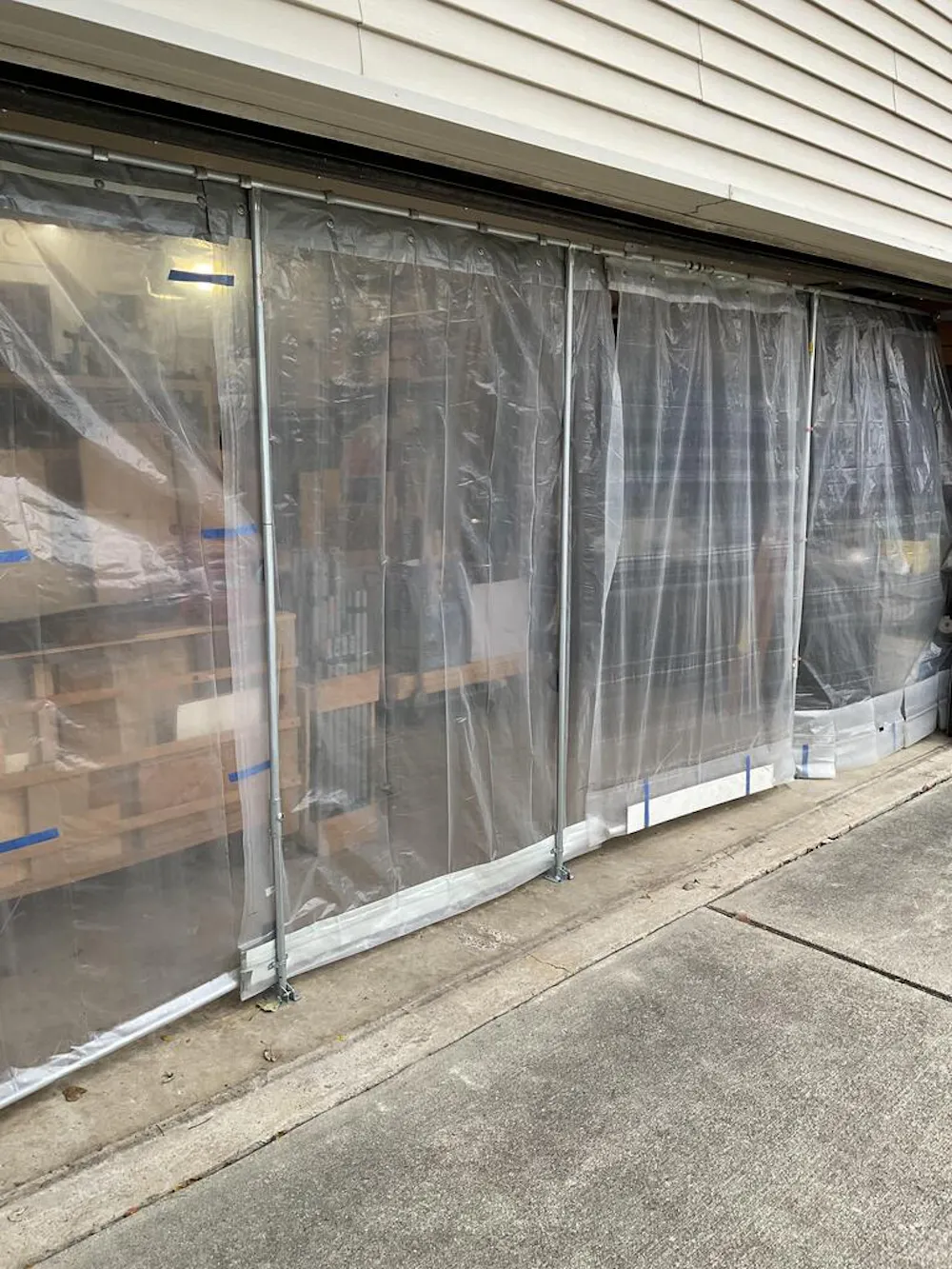

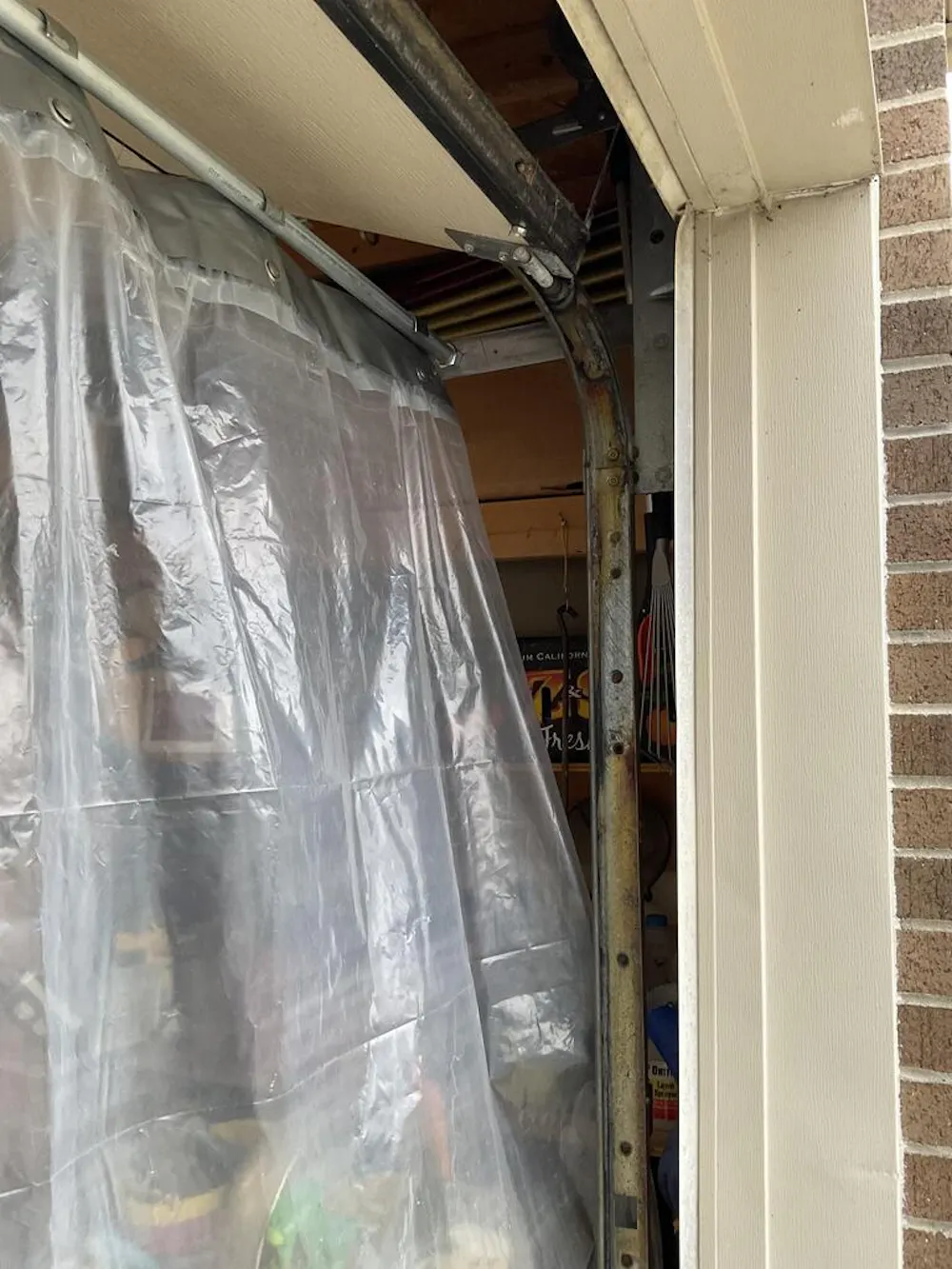

"I have a garage workshop I heated after retirement. However, living in Michigan I needed a way to keep the heat in when the door is open. I made several attempts that did not work till I found makerpipe. Using makerpipe I was able to layout a plan, purchase fittings, complete build in one day.. several days later competed with plastic curtains." - Bob

I recently became a homeowner, and was able to move my MIL out to live in the basement apartment. It is a nice setup where the two apartments are not connected by stairs, giving more privacy and space, but it means a long walk around the outside of the house for each thing we may need. I ho[e to build a dumbwaiter that connects the deck with the patio below, letting items to be easily loaded up and sent up or down as needed. I am designing this with the thought that the heaviest item to be moved would be a 5 gal bottle of water(~40lbs). It would be driven by a winch, and assisted using a counterweight. I have been pondering how to build the track that the car and counterweights would go up and down along when Maker Pipe advertised itself to me. Unfortunately I am not terribly familiar with the material, leaving me with a few questions.

Would it be strong enough?

Would it resist the weather?

Is there a better rout I could take?

Thank you for any help the community can give!

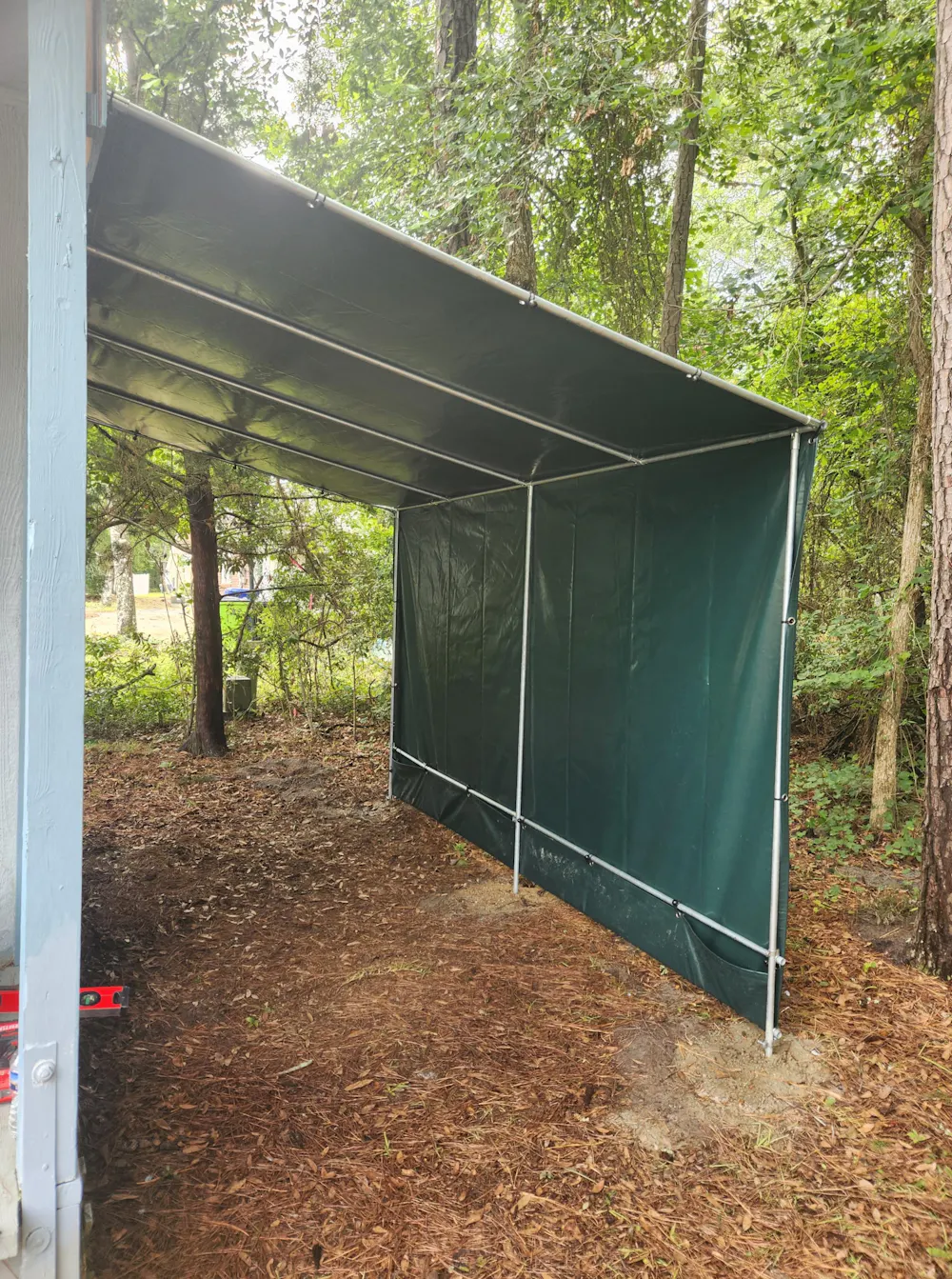

Great shade build from Ray!

"I was looking for a simple, not very expensive, way to shade my shed deck. I came across the Maker Pipe web site and found what i was looking for. Picking up some 3/4" conduit then ordering fittings from Maker Pipe, I was able to make a frame attached to the shed then covered with a shade. The fittings made it quite easy to assemble the frame and if I ever needed to take it apart, it would be easy."

Thanks for the review Scott!

"First time using makerpipe and it’s great stuff and really appreciate the follow up from the owner to make sure I was satisfied. Will certainly be using it again in future projects. On a side note. Some parts were out of stock so I tried to sub it with something on Amazon - needless to say quickly returned quality stunk and did not fit anywhere as nicely as MakerPipe. Do yourself a favor and save the headaches - get the original- maker pipe and it’s made in the USA👍"

“Here is my project if it can help anyone.” - John

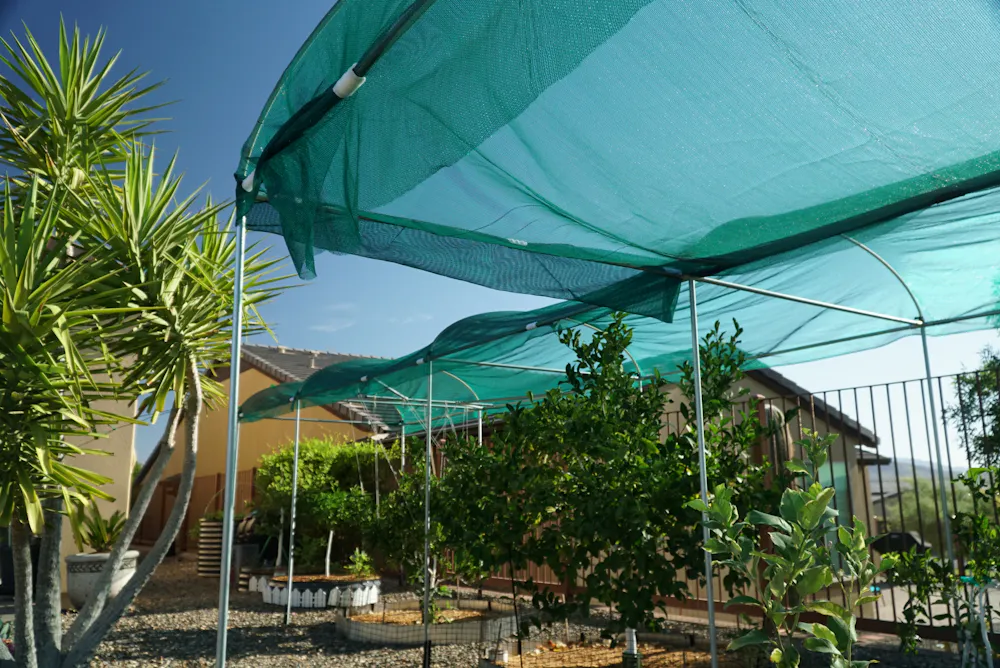

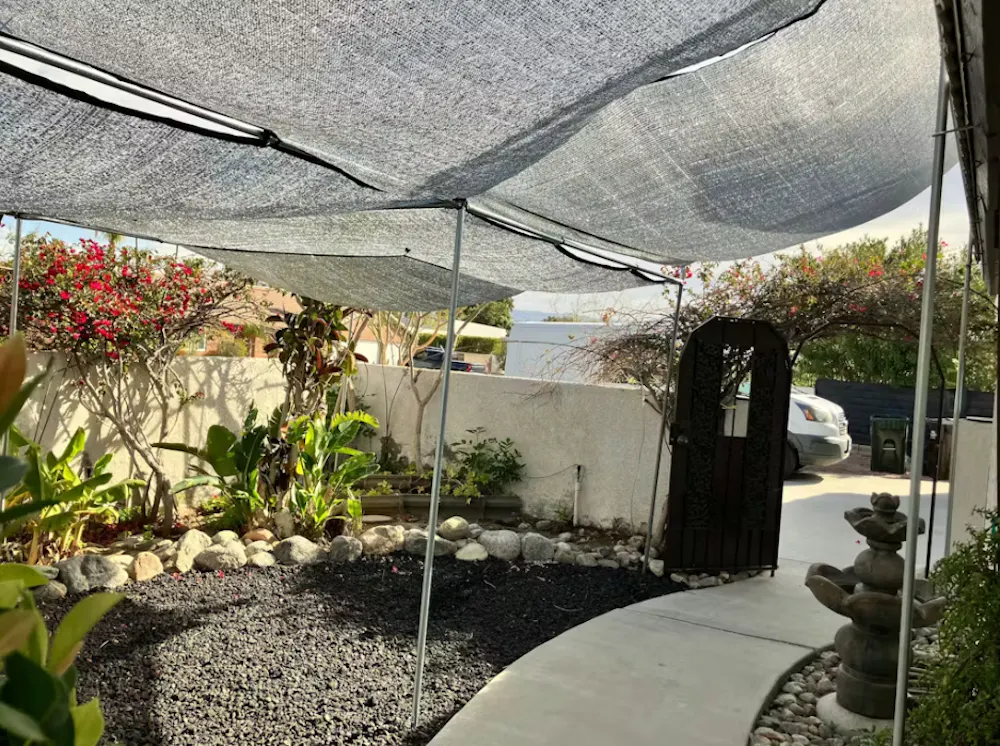

Olena built this fantastic shade structure with MP and conduit. I love the arched roofs!

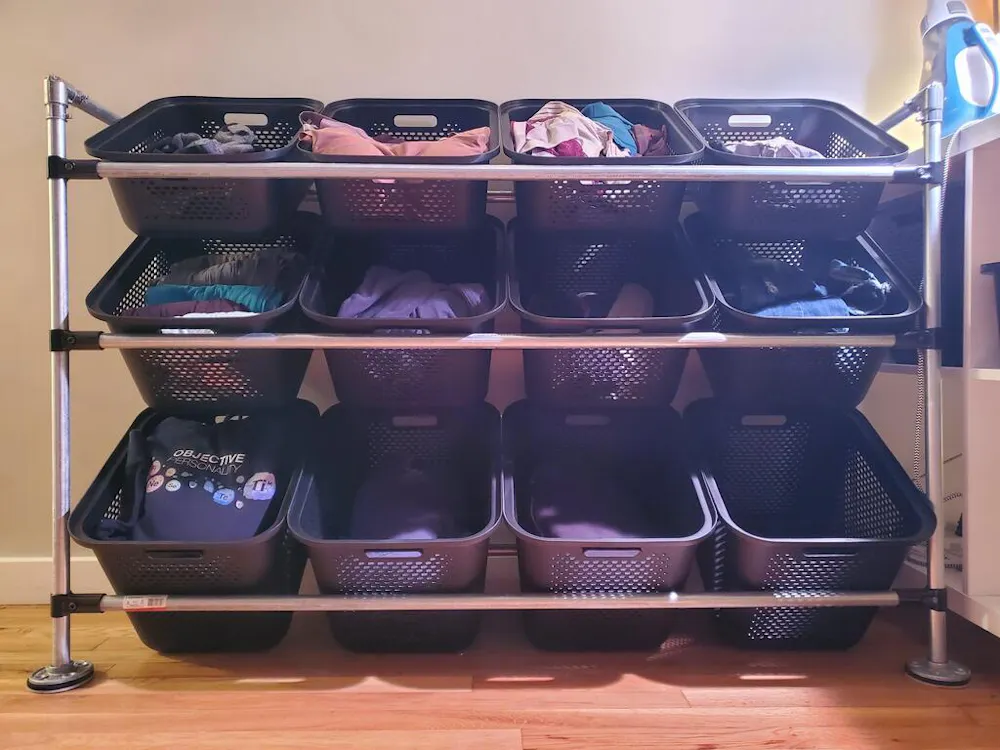

Modern industrial look shelving for my laundry room. Easy to assembly with basic tools, tape measure, allen wrench and pipe cutter.
