The design you see in this post is not 100% finished. I will update later when it is 100%. I did however want to get this posted before we left on vacation. I am still waiting on some parts to complete the project. I ordered them after starting, my bad. The solar panels in this project are 400 watt panels at 68 inches in height, 44 inches wide and weigh in at 46 lbs each. 3/4 inch EMT conduit should be used for this project.
Here is a list of Maker Pipe parts:
3/4 inch EMT Conduit
1/2 inch EMT Conduit

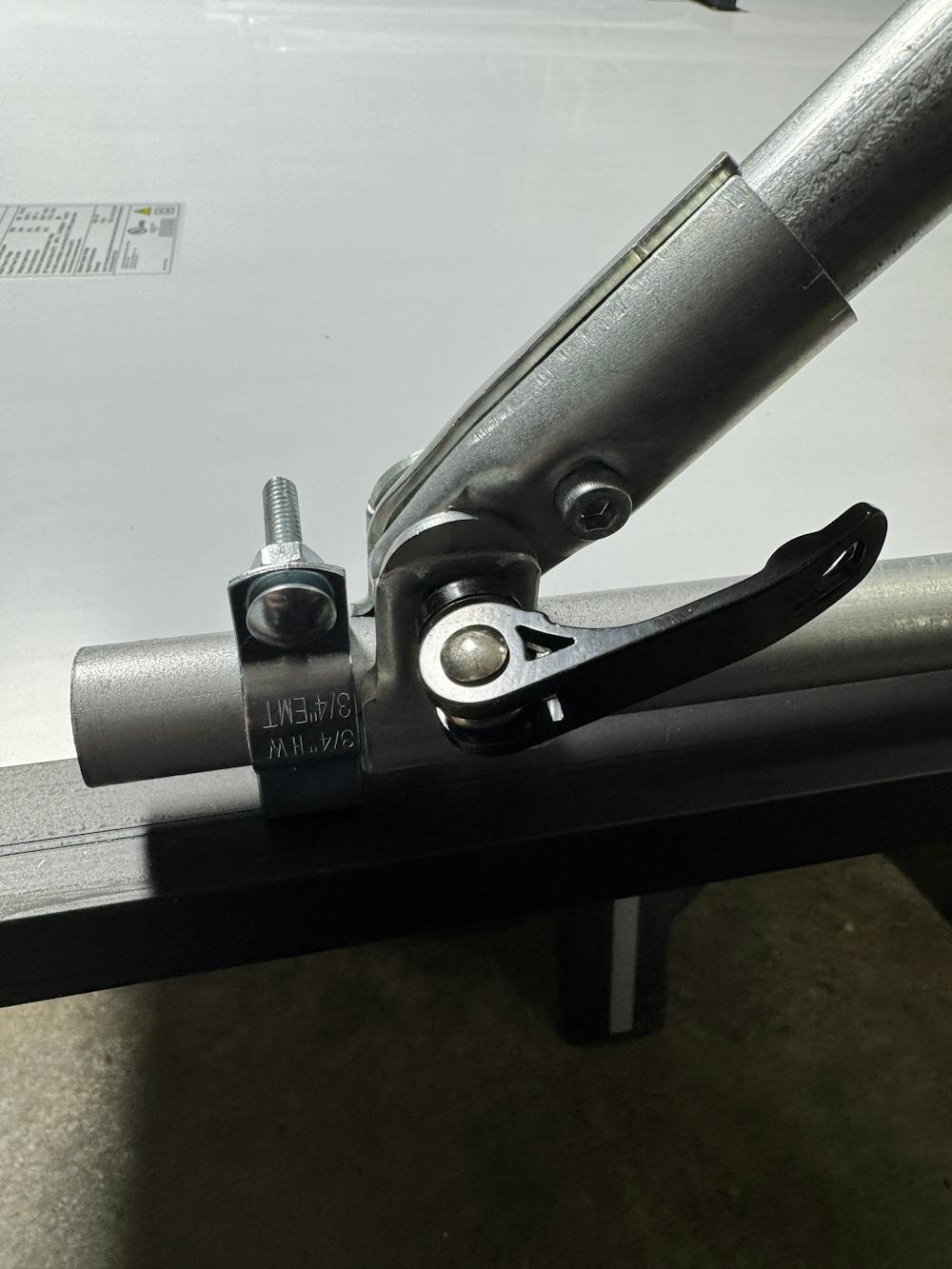

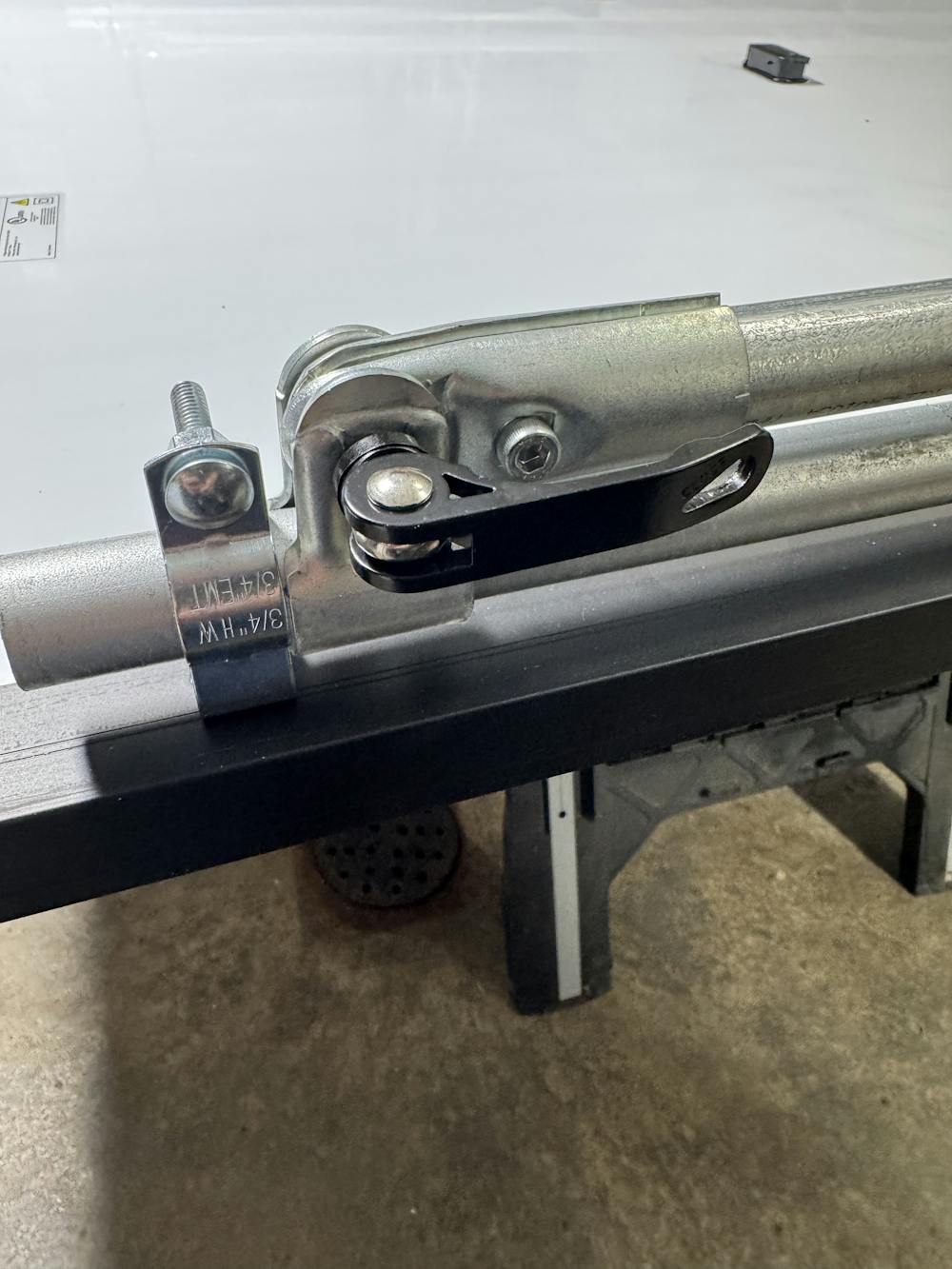

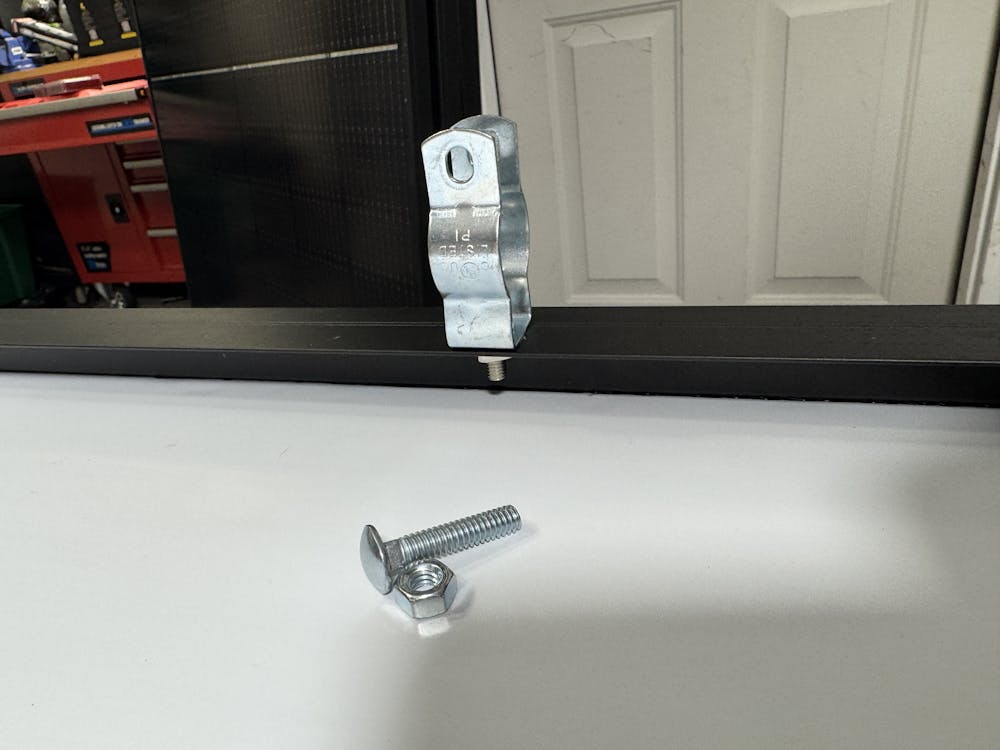

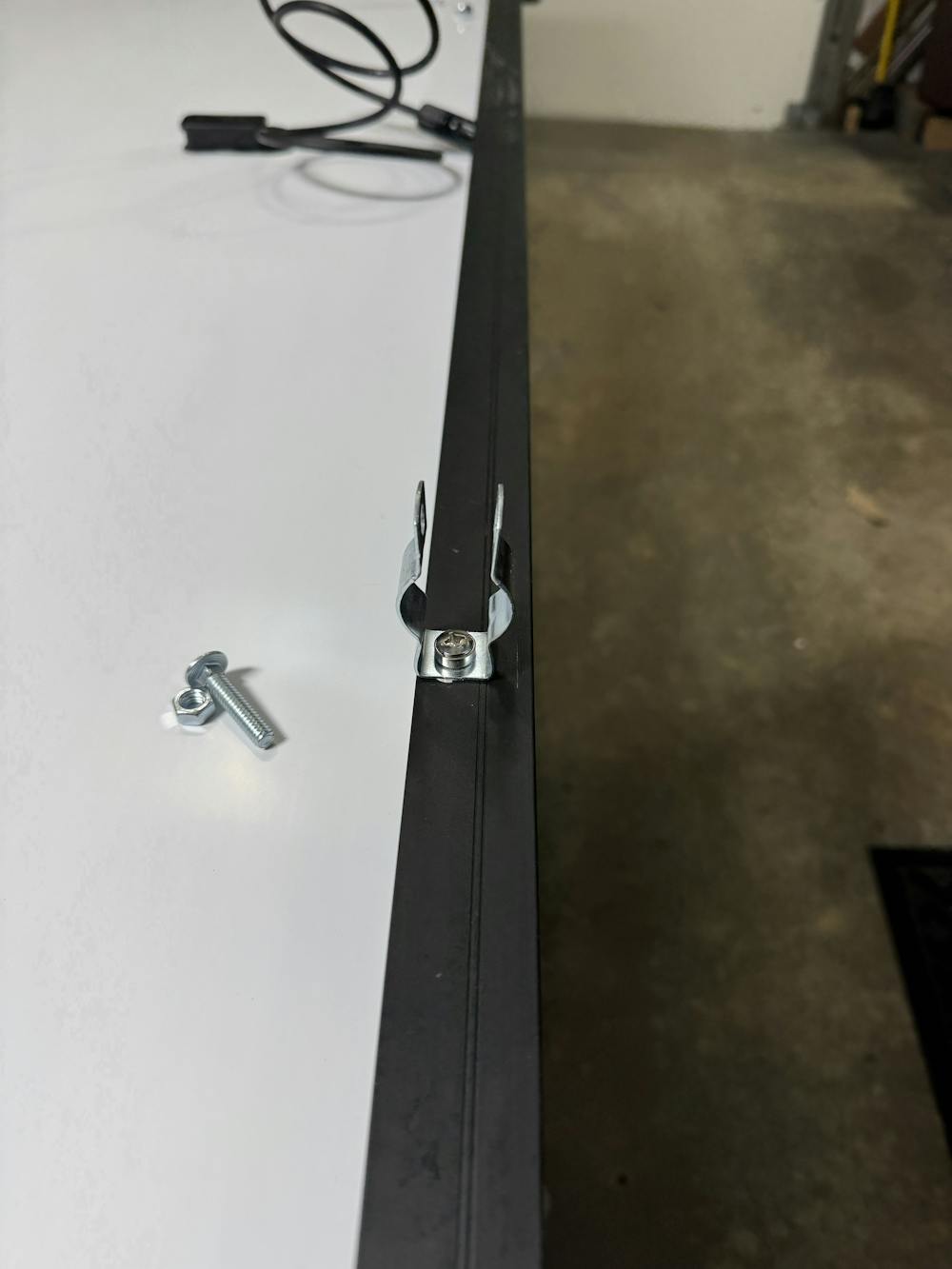

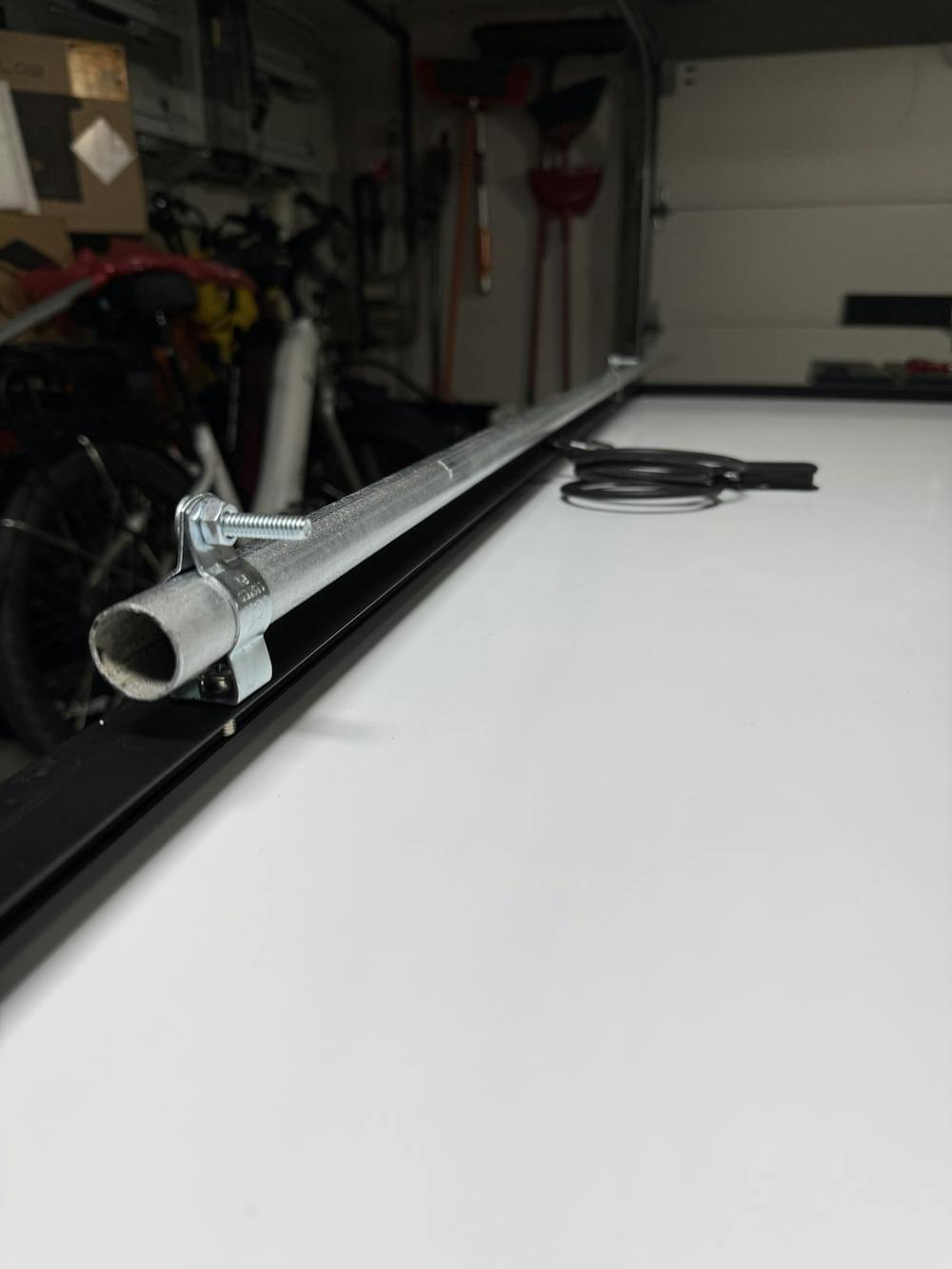

As shown in the pictures, I simply fastened the EMT conduit mounting straps to the predrilled holes in the aluminum solar panel frames. I then cut a 10 ft length of 3/4 in. EMT conduit in half. Fastened a 5 ft section of the conduit into the mounting straps on each side of the panel. I then fastened the adjustable angle hinge connector to the top of the left and right side conduit, just beneath the mounting strap. I then fastened a desired length of 3/4 in conduit into the adjustable angle hinge connector for my adjustable stand legs. Capped the bottom with rubber pipe feet and will cap the top with end plugs. The adjustable hinge connectors are fastened with the quick clamps for quick adjusting of the leg angle. I am awaiting telescoping clamps for the legs. I will cut a length of 1/2 in EMT conduit and slide it into the 3/4 in conduit leg for adjusting the length of the leg. This will allow for adjusting the angle of the solar panels for optimum performance.
This is as simple of a design as I can think of. It is minimalistic and it uses the rigid solar panels robust frame and glass for structural integrity. The legs will be anchored onto 6x6 beams. This design is not intended for permanent solar panel installation. I needed a somewhat mobile solution, and this fit the bill. I hope this will help someone out. It is super minimalistic and takes very little time to assemble.
